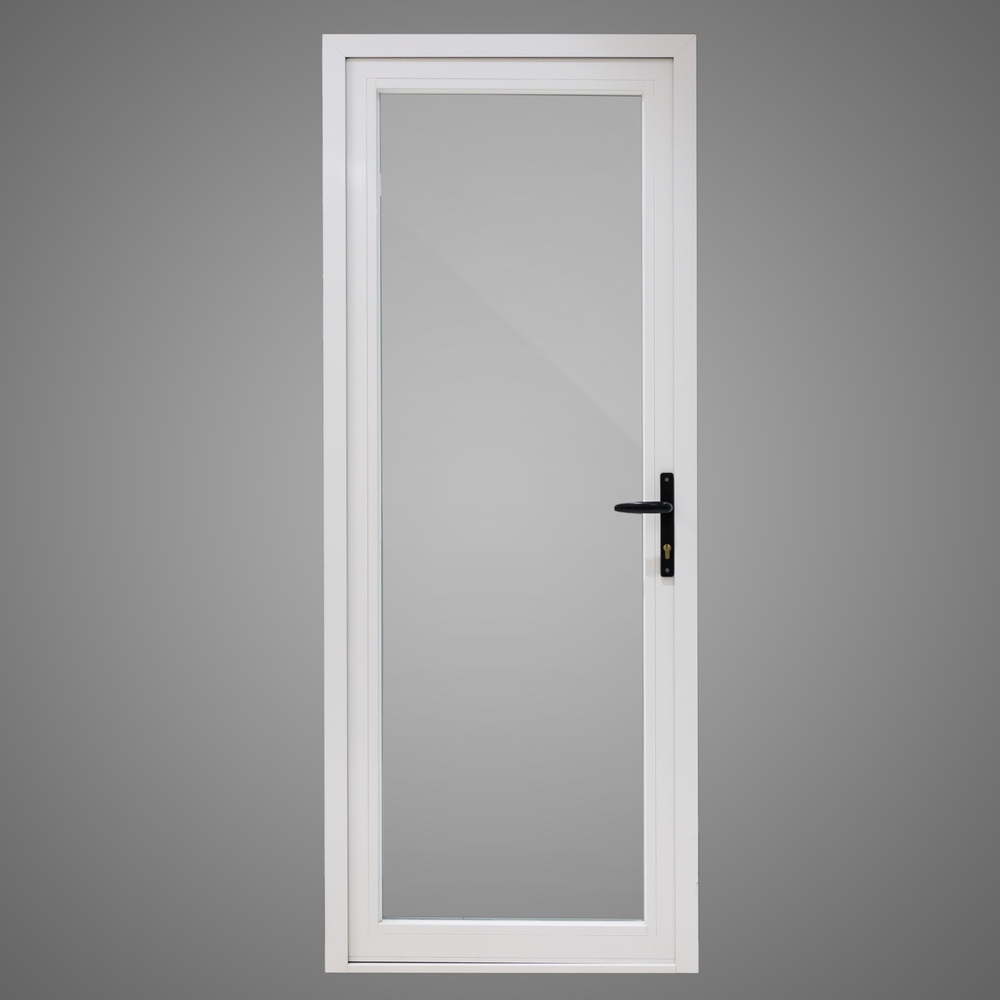

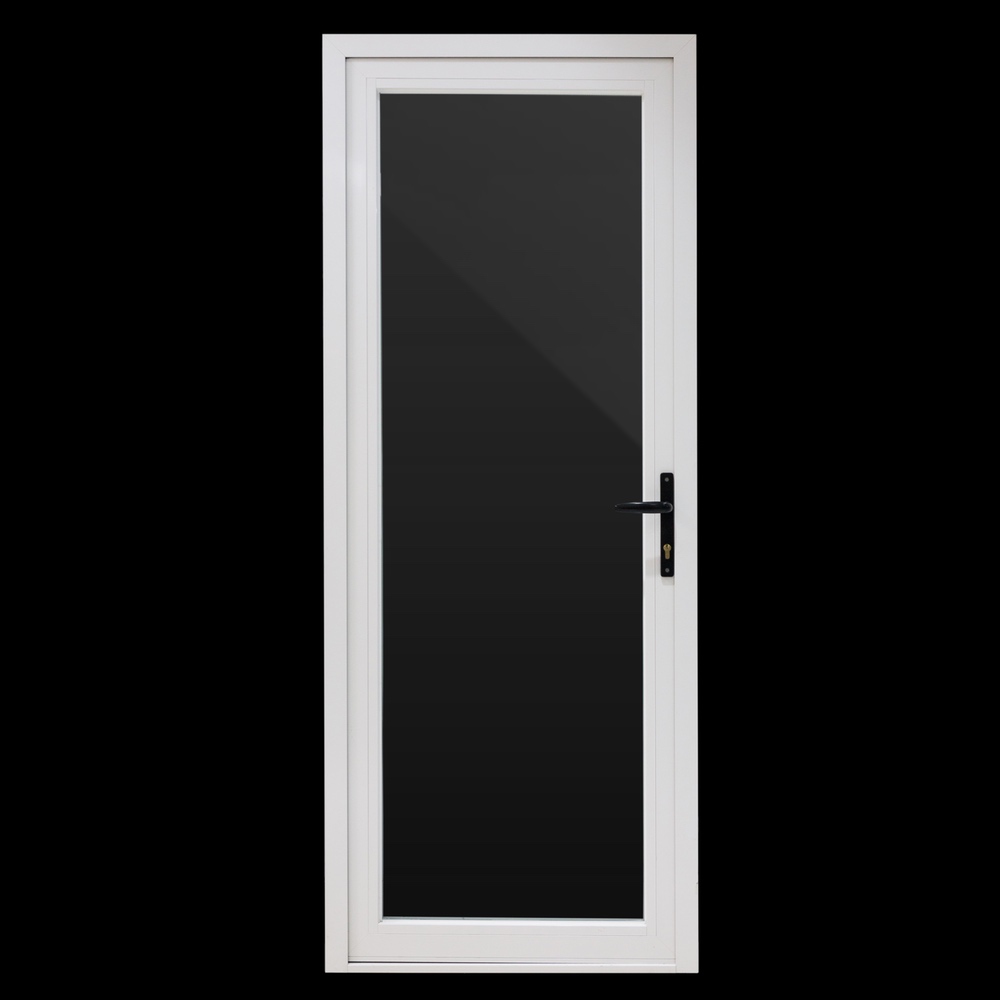

Aluminium casement door(AL55)
Aluminium casement door(AL55)
Aluminium casement door(AL55)
Aluminium casement door(AL55)
Aluminium casement door(AL55)
Aluminium casement door(AL55)

Aluminium casement door(AL55)

Product Description

* Aluminium frame width 55mm.

*Available in thermal break or Non-thermal break profile system

* Can be manufactured as single doors or double doors (french doors)

* Single door sizes up to 900mm in width, and up to 2700mm in height

* Double door sizes up to 1800mm wide and 2700mm in height

* Available in powder-coated in all RAL color or anodised silver, black, brown

* Available in standard 5mm+9A+5mm doulbe glass, toughened glass or laminated safety glass.


 Optional Features

* EPDM gasket or sealant optional.

* Single glass or double glass optional

* Open inwards or outwards optional

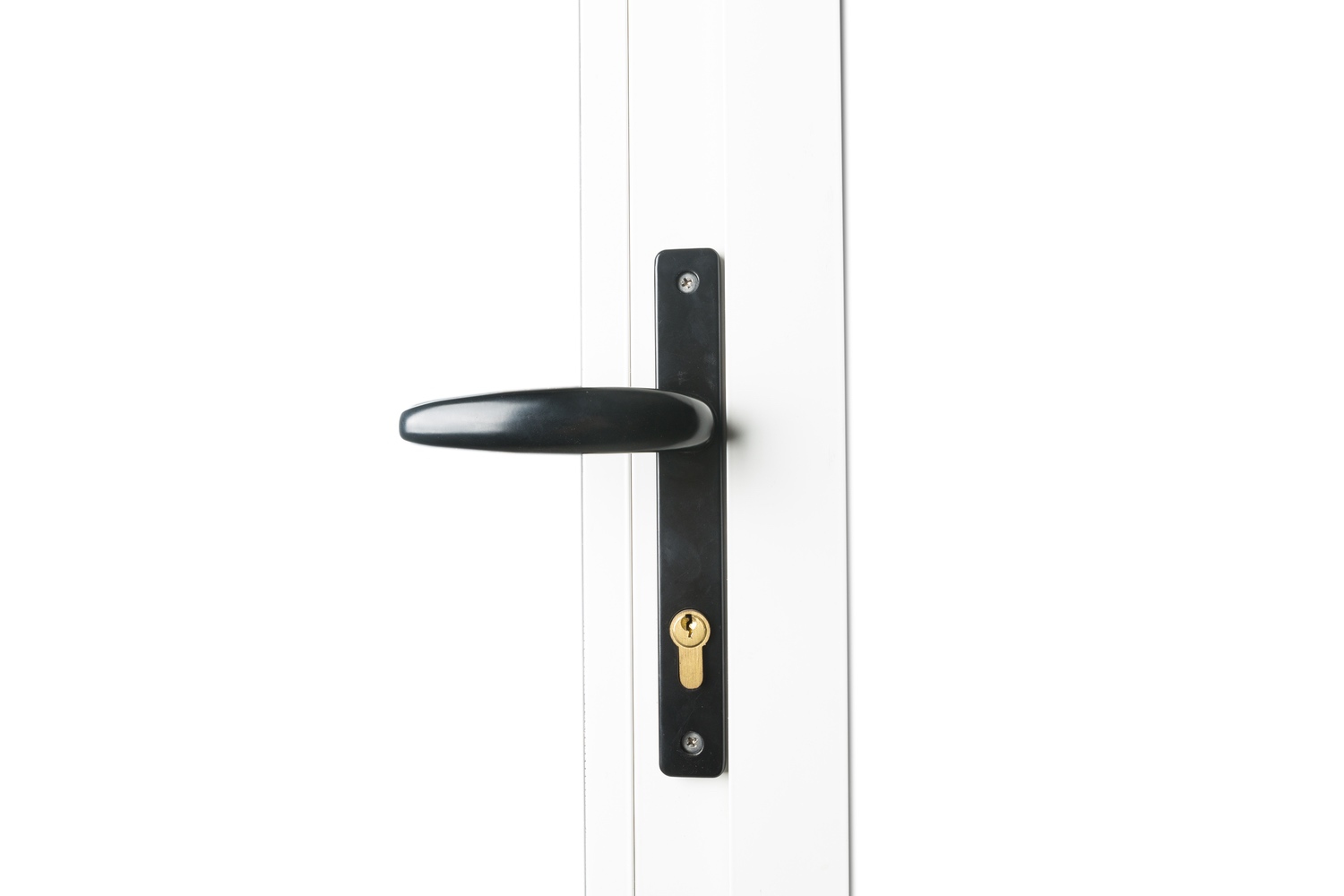

* Choice of high-end door handles ,Chinese Top quality or Germany brand

General description:

Hinged aluminium doors are probably the most standard type of doors, hinged onto the door jamb either on the left or right, allowing them to open inward or outward. It is a versatile product that can be used as a domestic entrance door in a commercial building or office. The flexibility of the product allows the door to be an insert in a larger shopfront section. Sidelights and fixtures can also be incorporated into the product.

Tech Specs

Product Detail

* Aluminium alloy 6063-T5, high tech profile and renforce material
*High quality glass fiber thermal break insulation bar with high loading capacity
*10-15 years warranty in powdercoating surface treatment

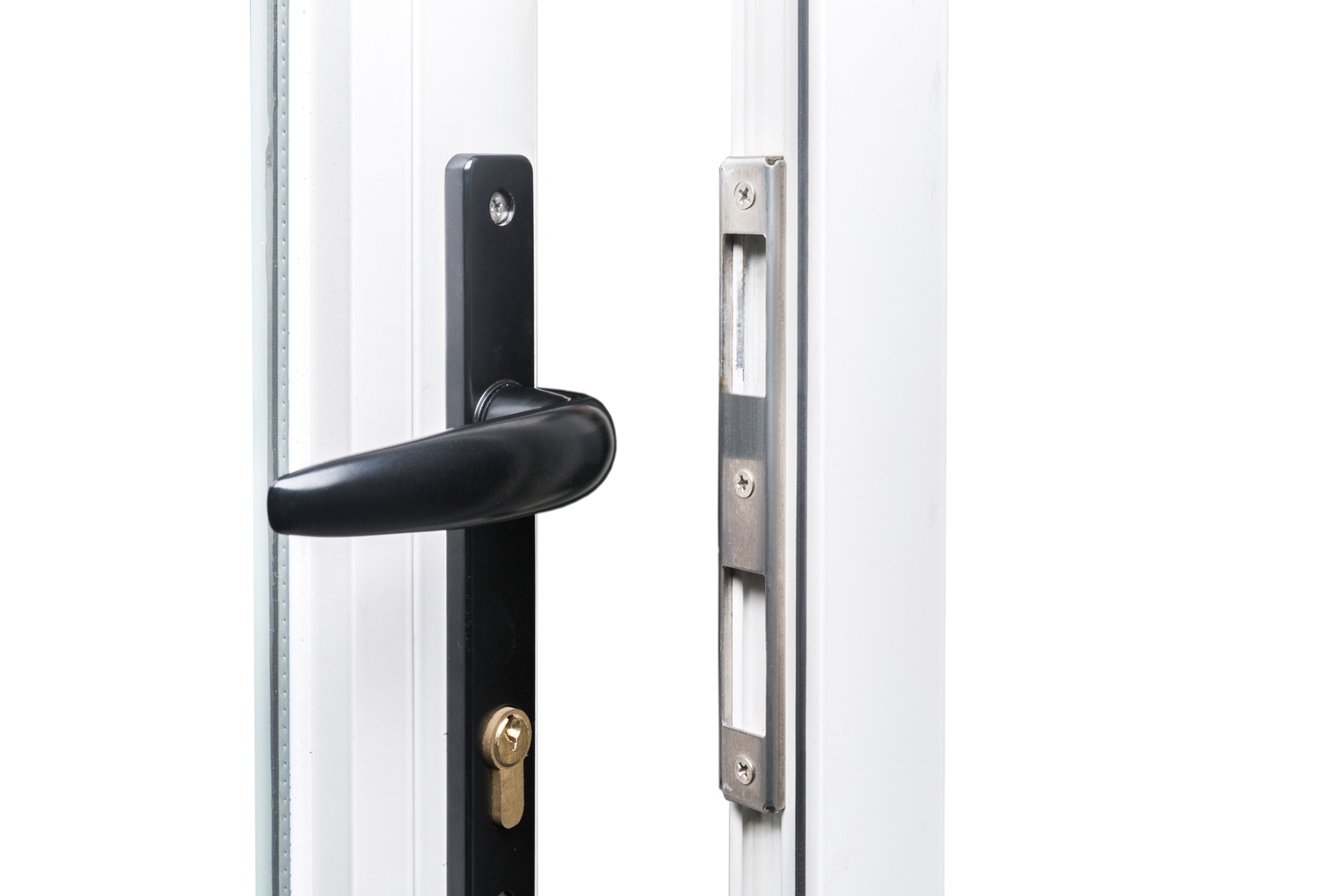

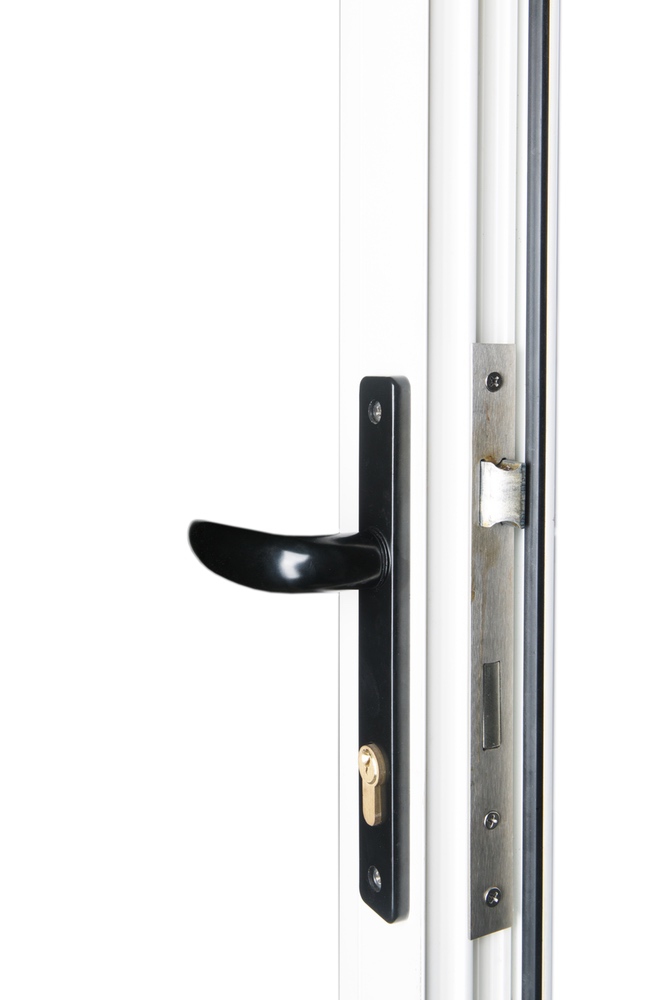

*Multi-point hardware lock system for weather sealing and burglarproofing
*Corner locking key ensures the smooth surface joint and improves corner stability
*Glass panel EPDM foam weather sealing strip used for better performance and easier maintenance than standard glue



Surface Treatment: Customized (Powder coated/ Electrophoresis/ Anodizing etc).

Color: Customized (White, black, silver etc any color is available by INTERPON or COLOR BOND).

Aluminium casement door(AL55)



Specifications Of Glass

1. Single Glazing: 4/5/6/8/10/12/15/19mm Etc

2. Double Glazing: 5mm+12a+5mm ,6mm+12a+6mm ,8mm+12a +8mm,can be Sliver Or Black Spacer

3. Laminated Glazing: 3mm+0.38pvb+3mm, 5mm+0.76pvb+5mm, 6mm+1.14pvb+6mm
Tempered ,clear, Tinted, Low-E, Reflective, Forsted.

4. With AS/nzs2208, As/nz1288 Certification



Aluminium casement door(AL55)



Specifications of Screen

1. Stainless Steel 304/316

2. Firber Screen


Aluminium casement door(AL55)


Specifications of Hardware

1.China top Kinlong hardware
2.America CMECH hardware
3.German Hoppe hardware
4.China top PAG Hardware
5.German SIEGENIA hardware
6.German ROTO hardware
7.German GEZE hardware
8.Aluwin choose seriously hardwares&accessories for customers with 10 years warranty

Aluminium casement door(AL55)

Why Choose Us

Customized - we are aluminium manufacturer with over 15 successful years of valuable experience in this industry. Our teams bring the most professional and competitive suggestions for your engineer and design needs, providing solutions on various sizes and complex projects.


Technical Support -The independent local and abroad technology teams provide aluminium curtain walls technical support (such as wind load calculation, systems and façade optimization), installation guide.


System design -Based on the clients’ and market’s requirement, develop new aluminium windows and doors systems, match excellent accessories, which can better meet the client target market requirement.
