Product Description

* Maximum Views, Minimal Frame. Can go with bottom rail or top -hung door
*Double Glazing – Standard
*Concealed Sashes
*16mm Frame on door sash.
*Concealed Track & Hardware
*Slim Frame – Frameless Sliding Door System
*Easy Roll – with Heavy Duty top and bottom rollers
*Sashes up to 3m high x 2.4m wide
*Seamless transition from inside to outdoors.

Optional Features
* Aluwin slim door system can go with bottom rail or make as hung door
* Slim door frame enlarge your view
* Three sashes and be open or close interactively

General description:

Aluwin slim sliding door create an aesthetically pleasing yet highly functional entrance with our slim automatic sliding door systems. Each panel is framed with aluminum to reduce weight without sacrificing strength. Available in a range of configurations to meet your unique needs, these low-profile doors are sure to enhance the looks of any facility.

Tech Specs

Product Detail

* Aluminium alloy 6063-T5, high tech profile and renforce material
*High quality glass fiber thermal break insulation bar with high loading capacity
*10-15 years warranty in powdercoating surface treatment
*Multi-point hardware lock system for weather sealing and burglarproofing
*Corner locking key ensures the smooth surface joint and improves corner stability
*Glass panel EPDM foam weather sealing strip used for better performance and easier maintenance than standard glue



Surface Treatment: Customized (Powder coated/ Electrophoresis/ Anodizing etc).

Color: Customized (White, black, silver etc any color is available by INTERPON or COLOR BOND).

Aluminium slim sliding door(AL98)



Specifications Of Glass

1. Single Glazing: 4/5/6/8/10/12/15/19mm Etc

2. Double Glazing: 5mm+12a+5mm ,6mm+12a+6mm ,8mm+12a +8mm,can be Sliver Or Black Spacer

3. Laminated Glazing: 3mm+0.38pvb+3mm, 5mm+0.76pvb+5mm, 6mm+1.14pvb+6mm
Tempered ,clear, Tinted, Low-E, Reflective, Forsted.

4. With AS/nzs2208, As/nz1288 Certification



Aluminium slim sliding door(AL98)



Specifications of Screen

1. Stainless Steel 304/316

2. Firber Screen


Aluminium slim sliding door(AL98)

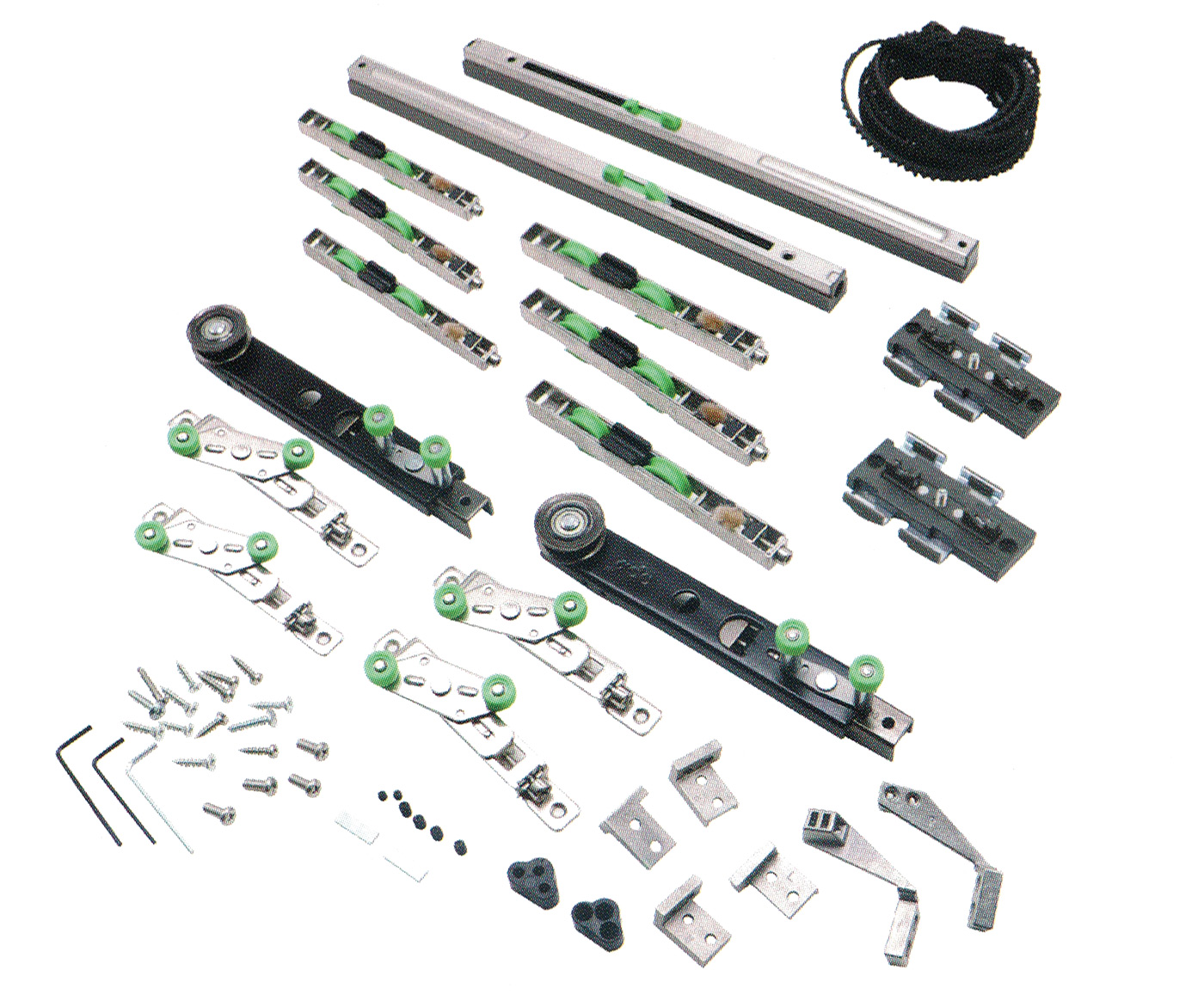

Specifications of Hardware

1.China top Kinlong hardware
2.America CMECH hardware
3.German Hoppe hardware
4.China top PAG Hardware
5.German SIEGENIA hardware
6.German ROTO hardware
7.German GEZE hardware
8.Aluwin choose seriously hardwares&accessories for customers with 10 years warranty

Aluminium slim sliding door(AL98)

Why Choose Us

Customized - we are aluminium manufacturer with over 15 successful years of valuable experience in this industry. Our teams bring the most professional and competitive suggestions for your engineer and design needs, providing solutions on various sizes and complex projects.


Technical Support -The independent local and abroad technology teams provide aluminium curtain walls technical support (such as wind load calculation, systems and façade optimization), installation guide.


System design -Based on the clients’ and market’s requirement, develop new aluminium windows and doors systems, match excellent accessories, which can better meet the client target market requirement.
