For a building’s weather-facing side, awing windows with fixed panels are usually the best option because they can be opened for good air ventilation without letting in heavy winds or precipitation. They perform equally well on the ground floor of high-rise structures as they do on the ground.

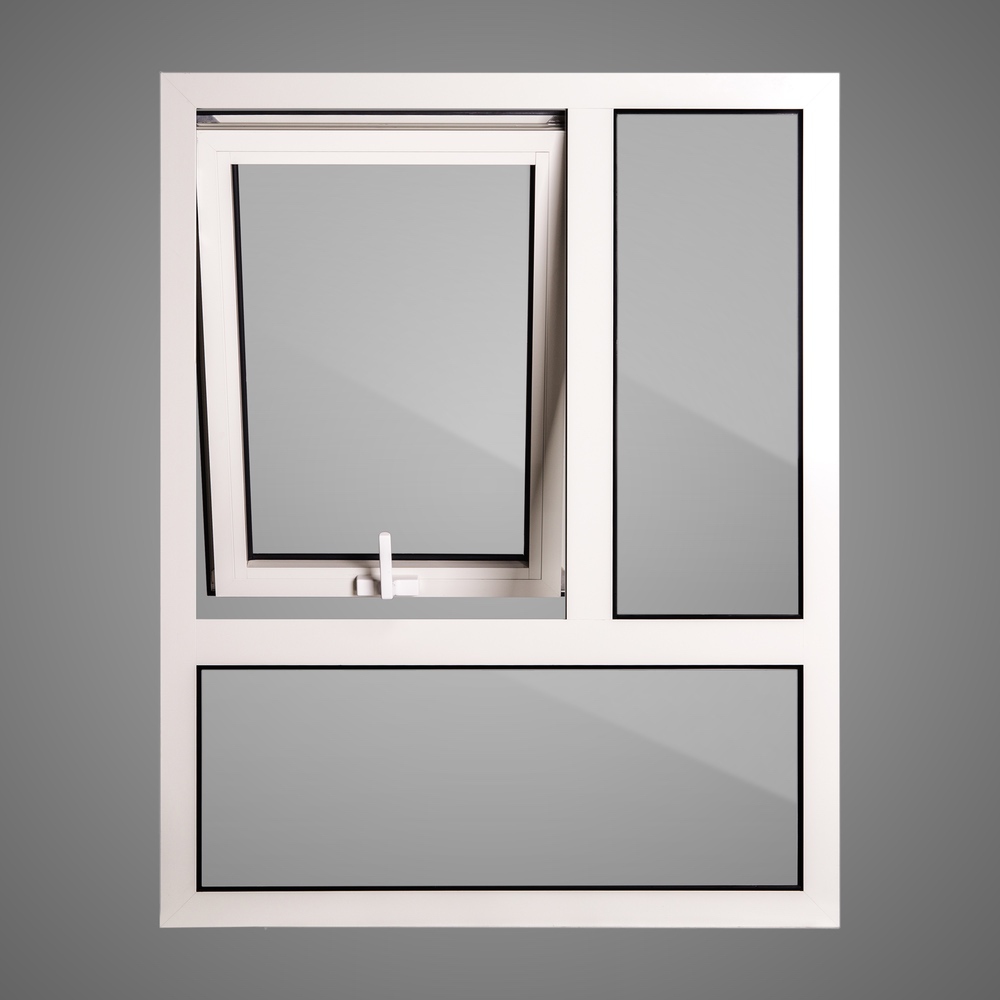

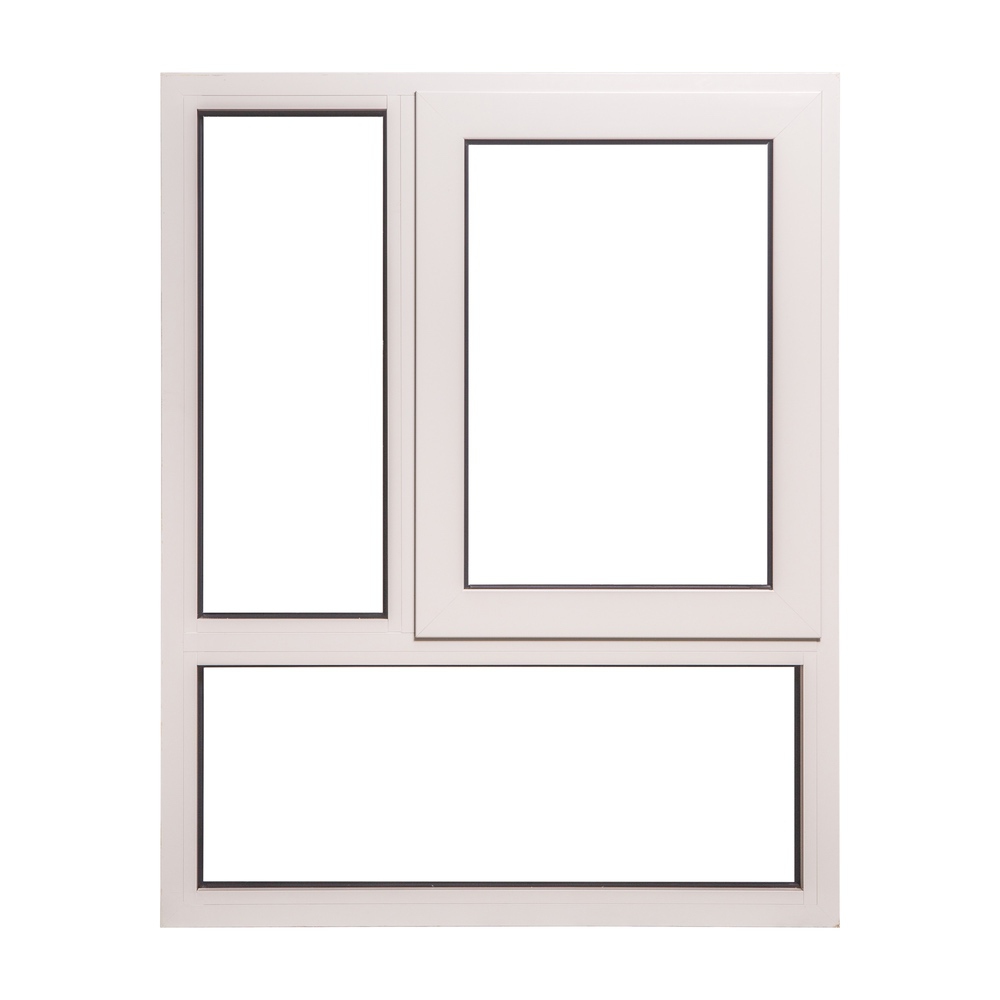

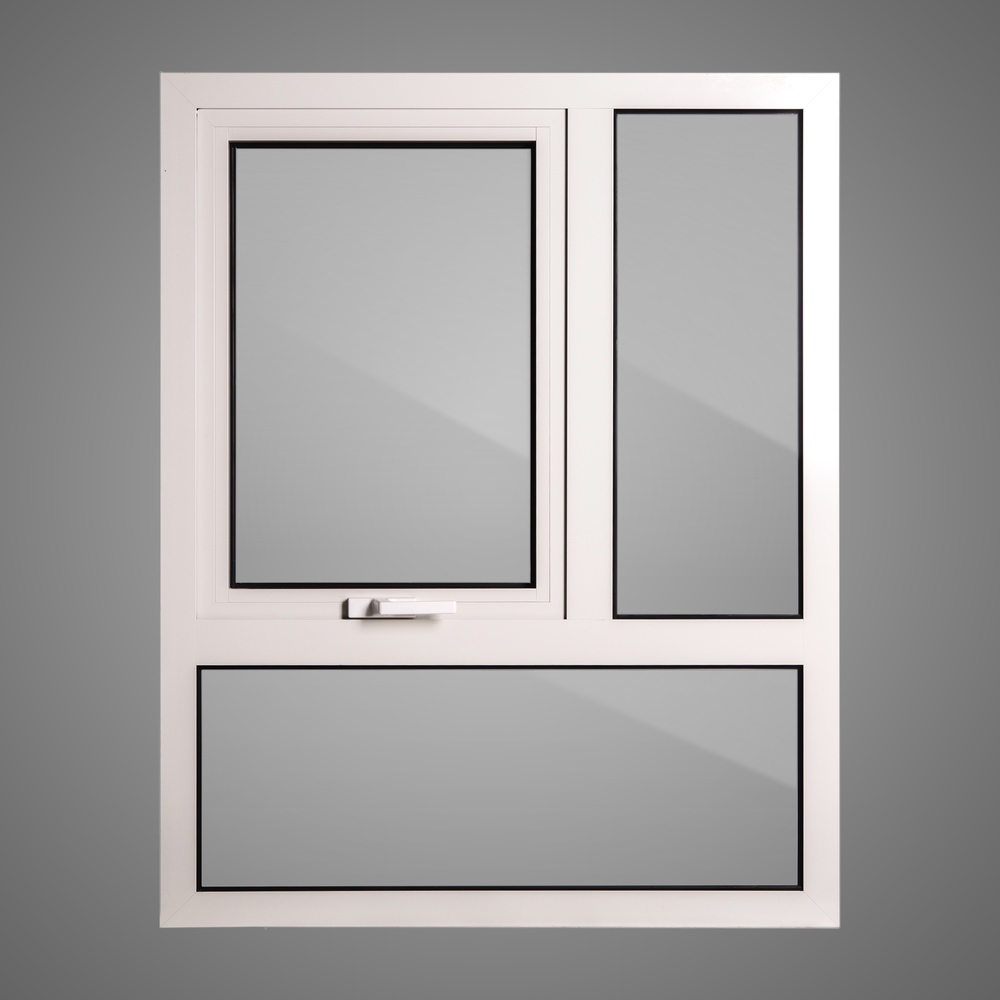

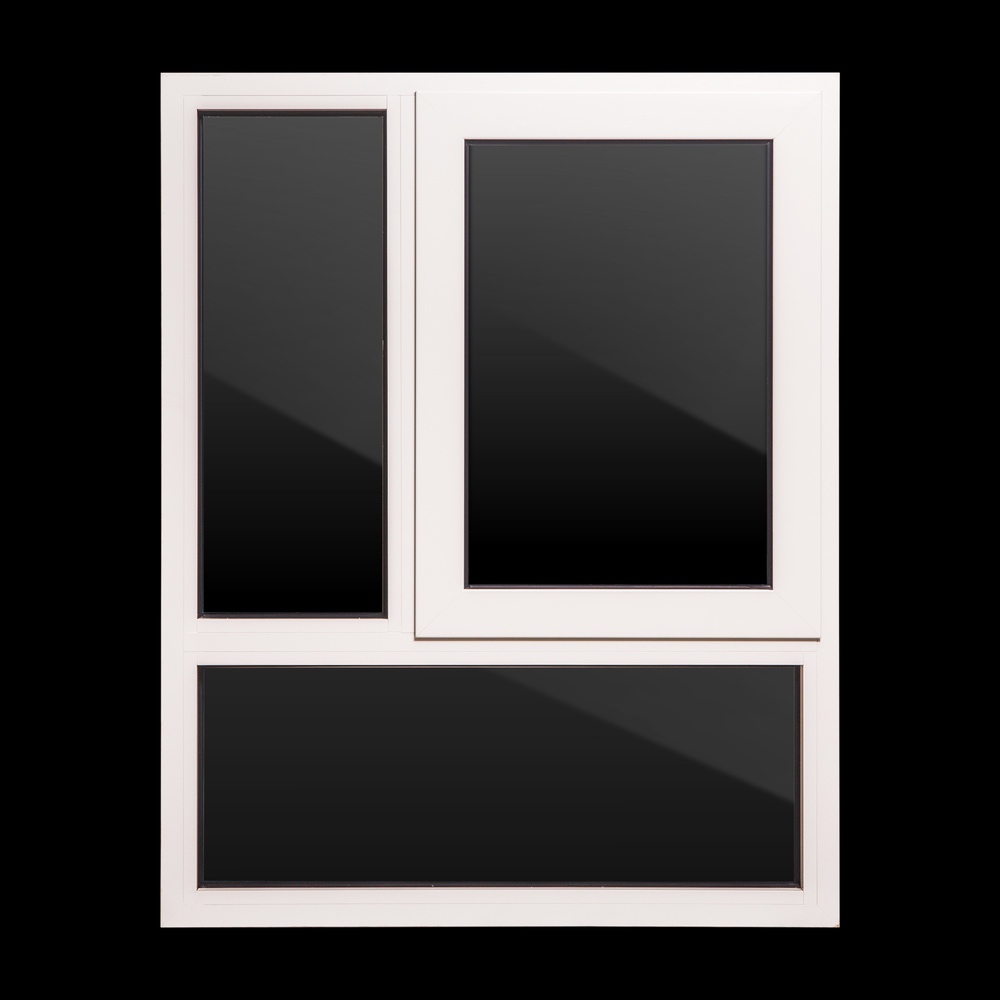

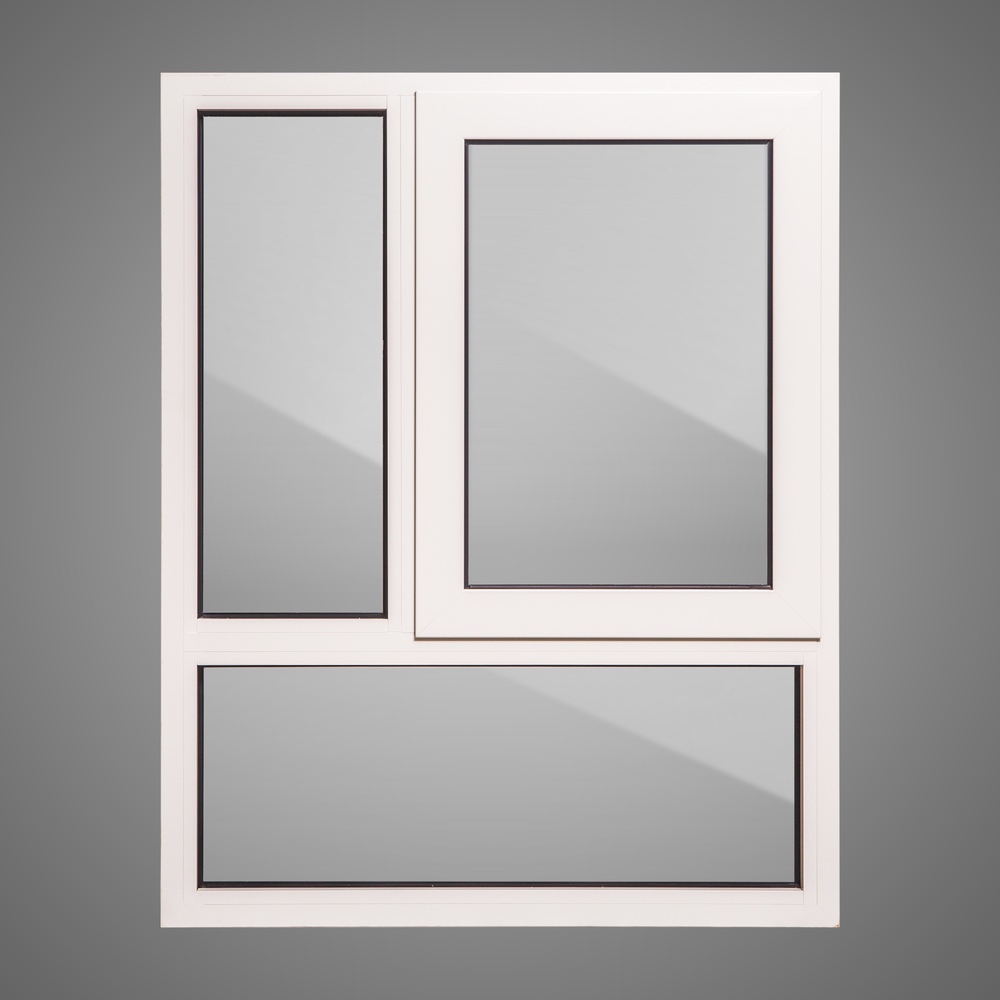

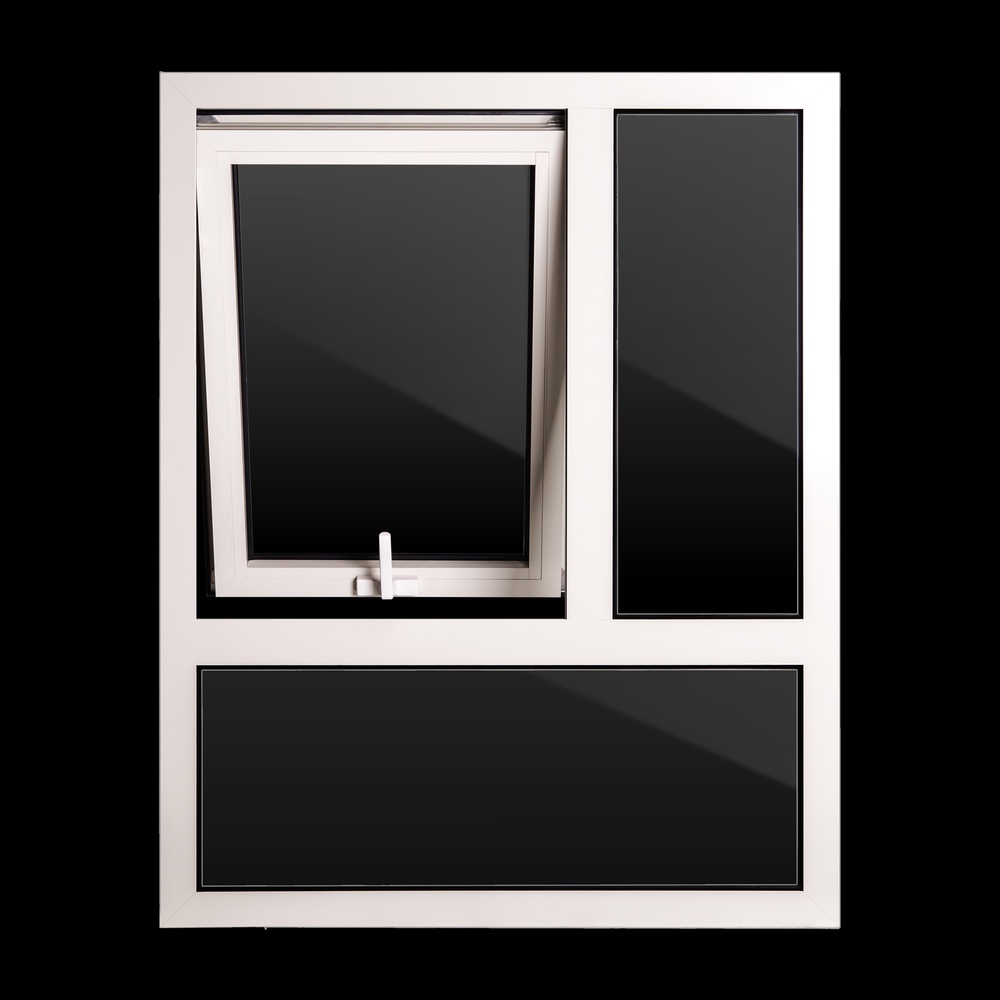

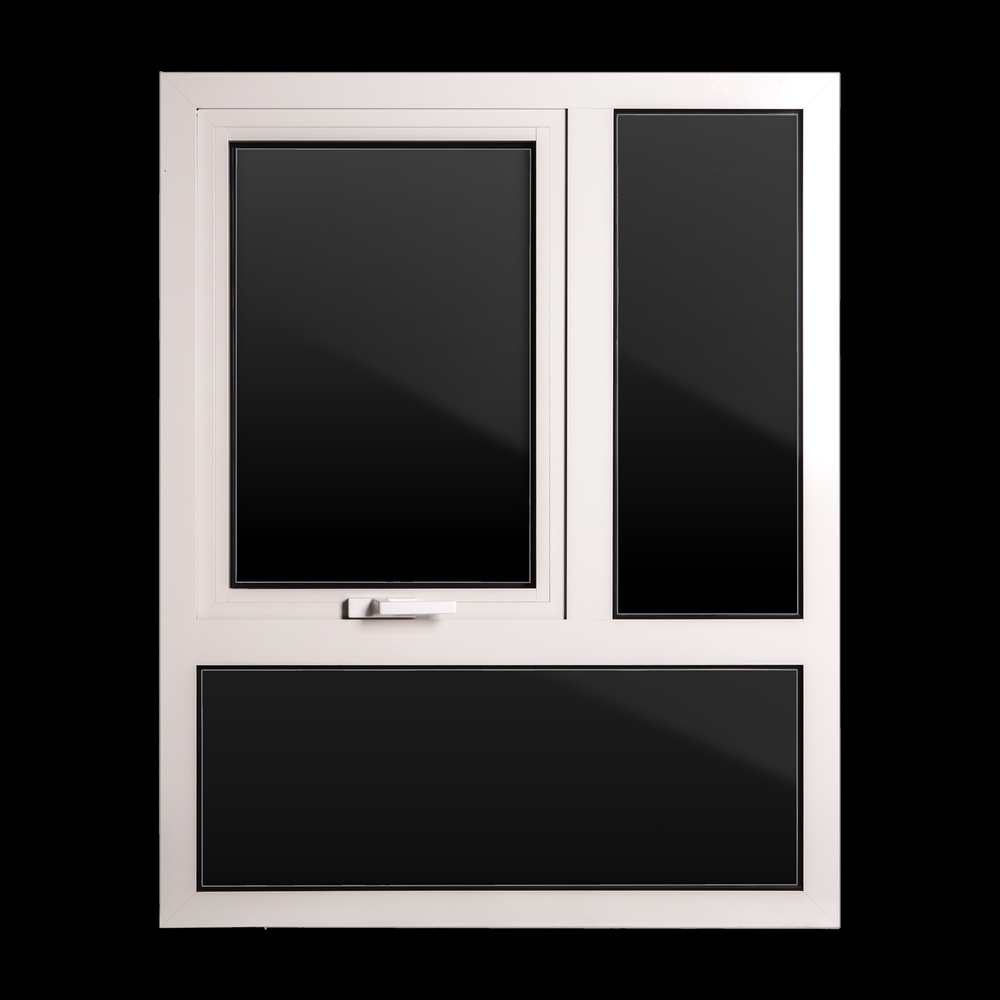

Aluminium Awning window(AL50)
Product Description
* Aluminium frame width 50mm.
* Good air ventilation and can be left in heavy rain fall to stop rain outside even at window open status.

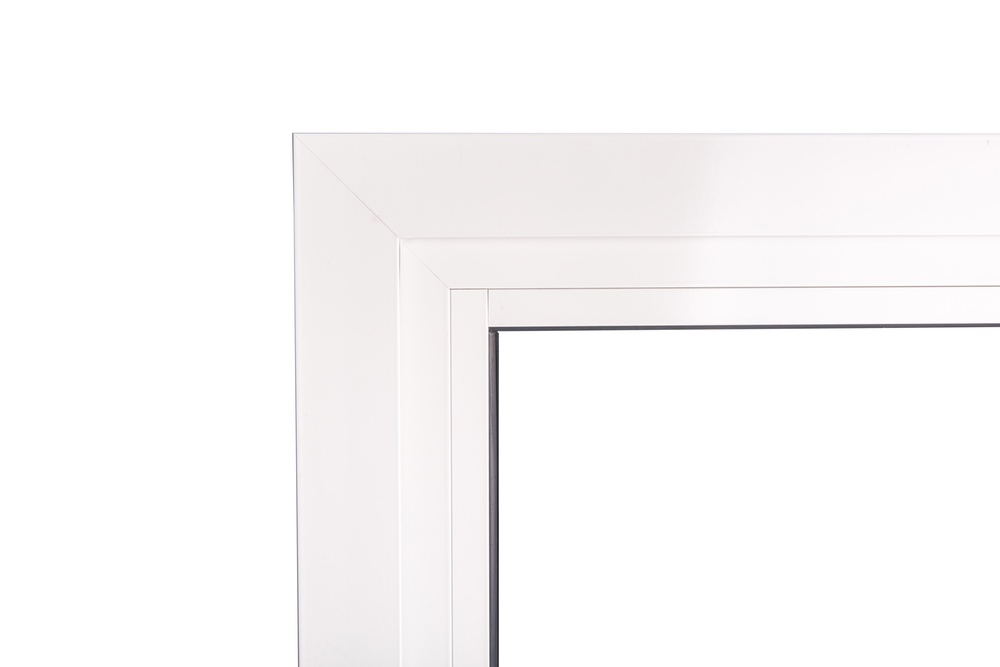

* European style 45 degree joint crimping corner instead of adjustable corner make it more elegant and fastened.
* Available in anodised or powder-coated aluminium in all RAL color.
* Available in standard 6mm, 8mm,10mm single glass and 5mm+9A/12A+5mm double glaze,toughened glass or laminated safety glass.
* Glass can be tinted in a range of colours.
* Different custom sizes also possible.
Optional Features
* Fibre / SS flyscreen optional.

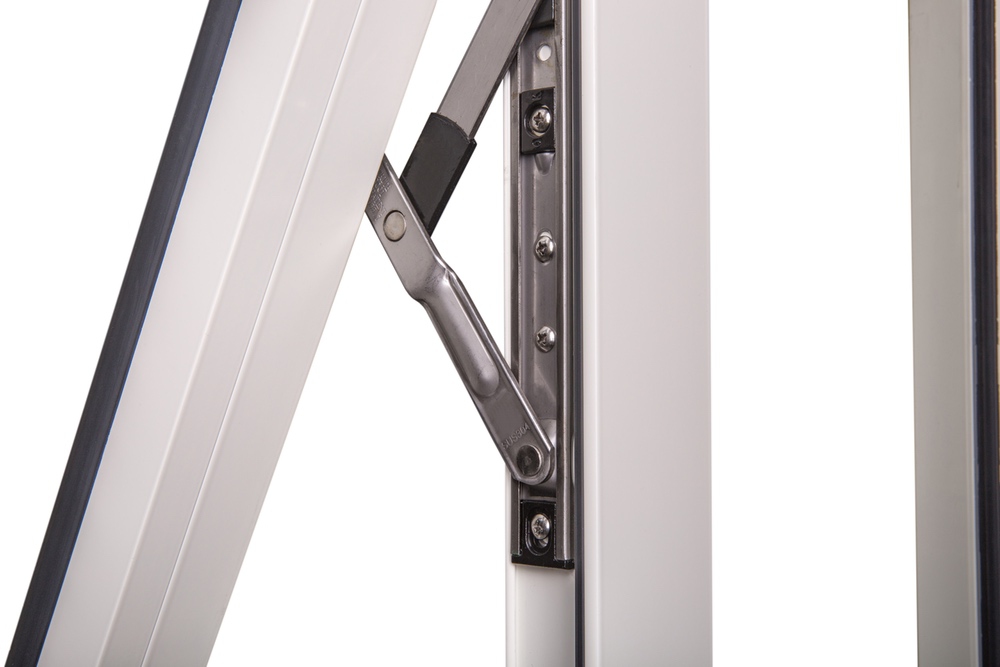

* Friction stay necessary but limited stay can be for choice.

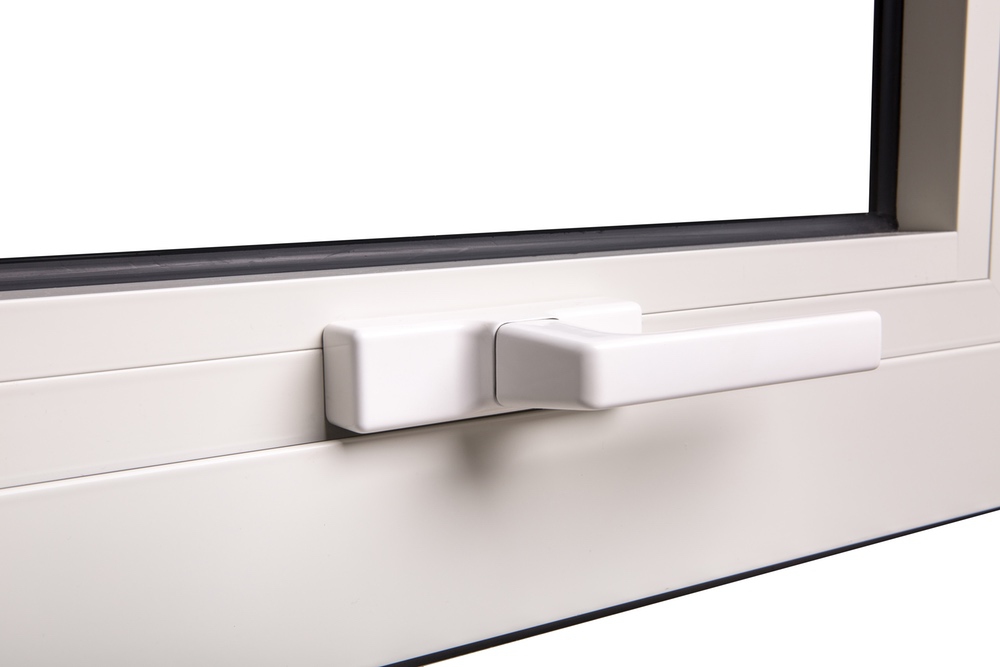

* Different types lock and handles for choice. Consult for detailed.
* Non-thermal break system and thermal break system can be choosed.
* EPDM gasket or sealant optional.
General description:
Tech Specs
Color
Glass
Srceens
Hardware
Product Detail
* Aluminium alloy 6063-T5, high tech profile and renforce material
*High quality glass fiber thermal break insulation bar with high loading capacity
*10-15 years warranty in powdercoating surface treatment

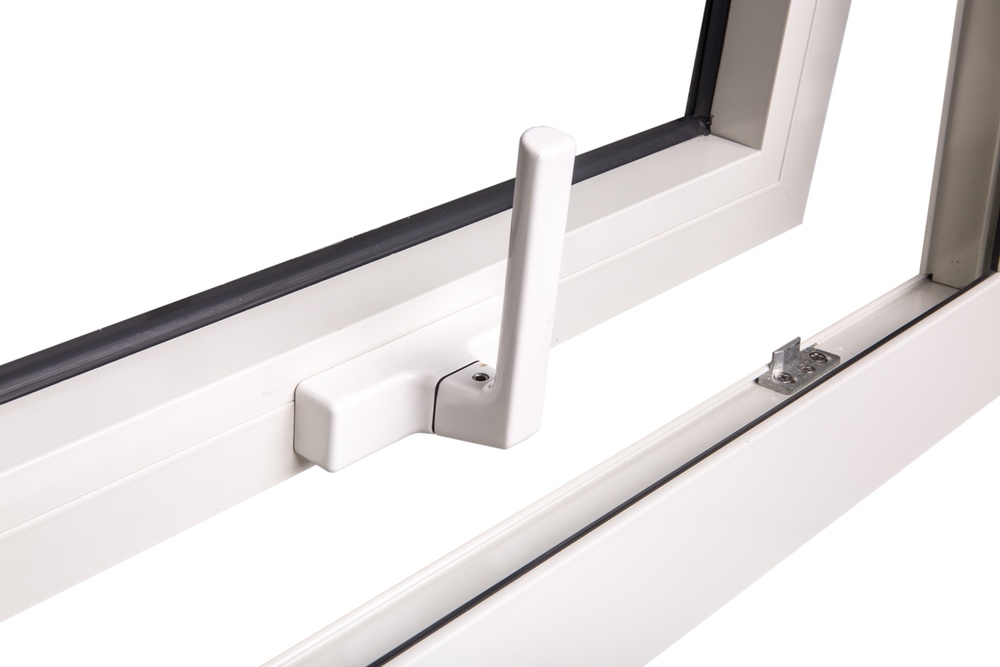

*Multi-point hardware lock system for weather sealing and burglarproofing
*Corner locking key ensures the smooth surface joint and improves corner stability
*Glass panel EPDM foam weather sealing strip used for better performance and easier maintenance than standard glue
Color
Surface Treatment: Customized (Powder coated/ Electrophoresis/ Anodizing etc).
Color: Customized (White, black, silver etc any color is available by INTERPON or COLOR BOND).
Glass
Specifications Of Glass
1. Single Glazing: 4/5/6/8/10/12/15/19mm Etc
2. Double Glazing: 5mm+12a+5mm ,6mm+12a+6mm ,8mm+12a +8mm,can be Sliver Or Black Spacer
3. Laminated Glazing: 3mm+0.38pvb+3mm, 5mm+0.76pvb+5mm, 6mm+1.14pvb+6mm
Tempered ,clear, Tinted, Low-E, Reflective, Forsted.
4. With AS/nzs2208, As/nz1288 Certification
Screen
Specifications of Screen
1. Stainless Steel 304/316
2. Firber Screen
Hardware
Specifications of Hardware
1.China top Kinlong hardware
2.America CMECH hardware
3.German Hoppe hardware
4.China top PAG Hardware
5.German SIEGENIA hardware
6.German ROTO hardware
7.German GEZE hardware
8.Aluwin choose seriously hardwares&accessories for customers with 10 years warranty
Why Choose Us
Customized - we are aluminium manufacturer with over 15 successful years of valuable experience in this industry. Our teams bring the most professional and competitive suggestions for your engineer and design needs, providing solutions on various sizes and complex projects.
Technical Support -The independent local and abroad technology teams provide aluminium curtain walls technical support (such as wind load calculation, systems and façade optimization), installation guide.
System design -Create innovative aluminium window and door systems with top-notch accessories to better satisfy the needs of your target market based on your customers’ and the market’s demands.
