The most popular type of door, hinged aluminium doors, can be made to open inward or outward. Due to its versatility, an Aluwin casement door can be utilised as a household entrance door in a business or office context. Because of the product’s adaptability, the door can be accommodated by a larger shopfront piece. Additionally, the item could have fixtures and sidelights.

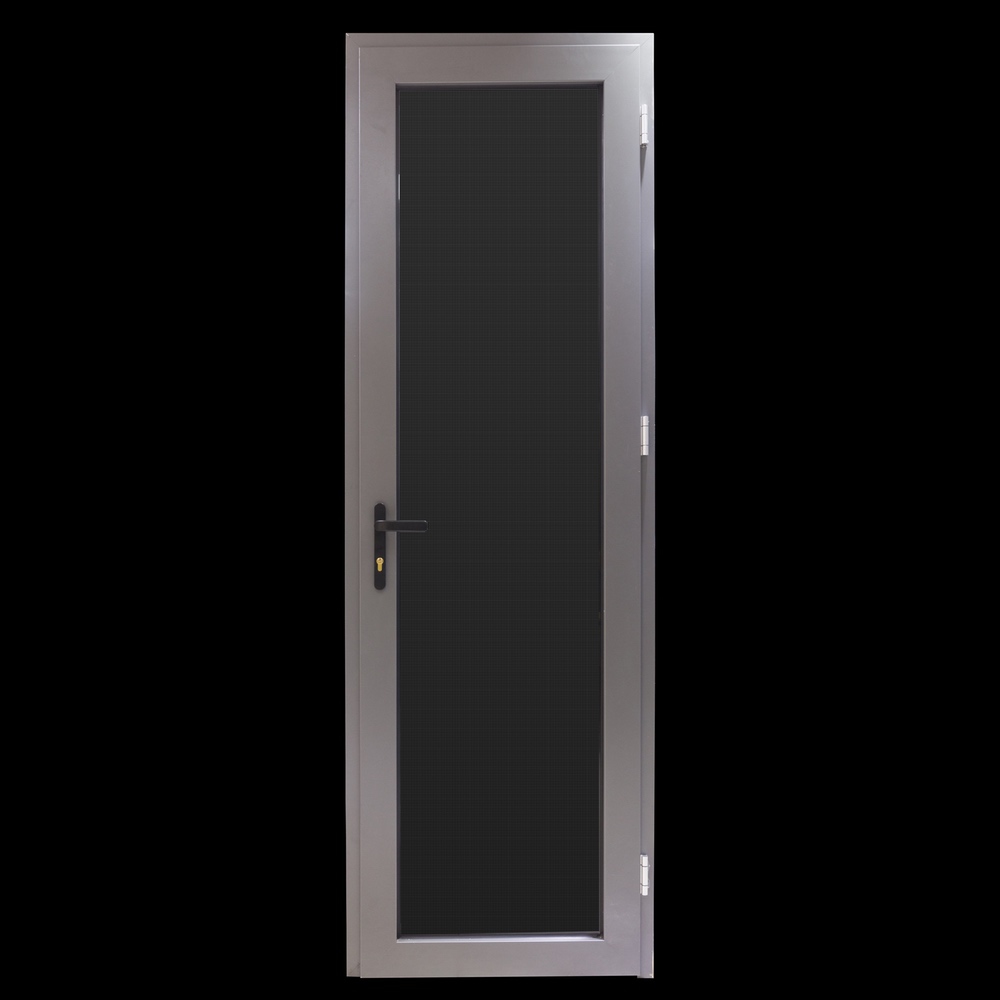

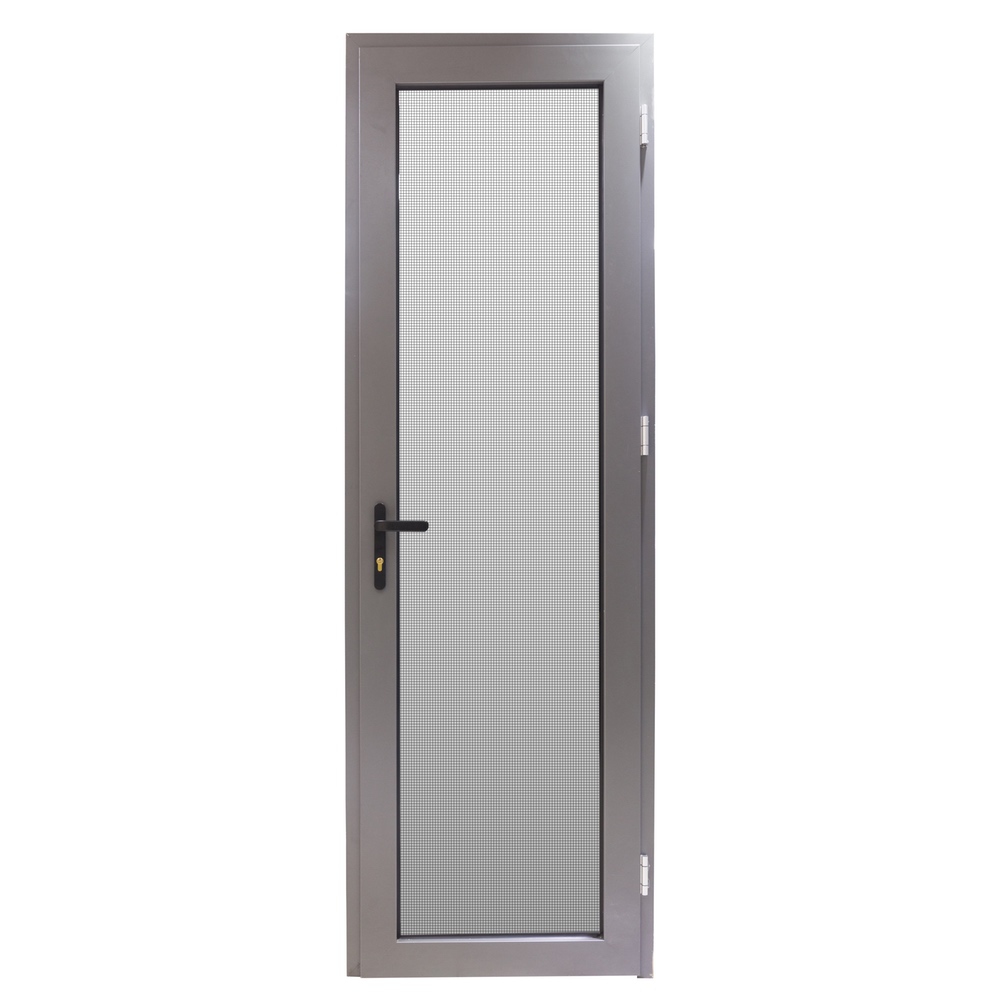

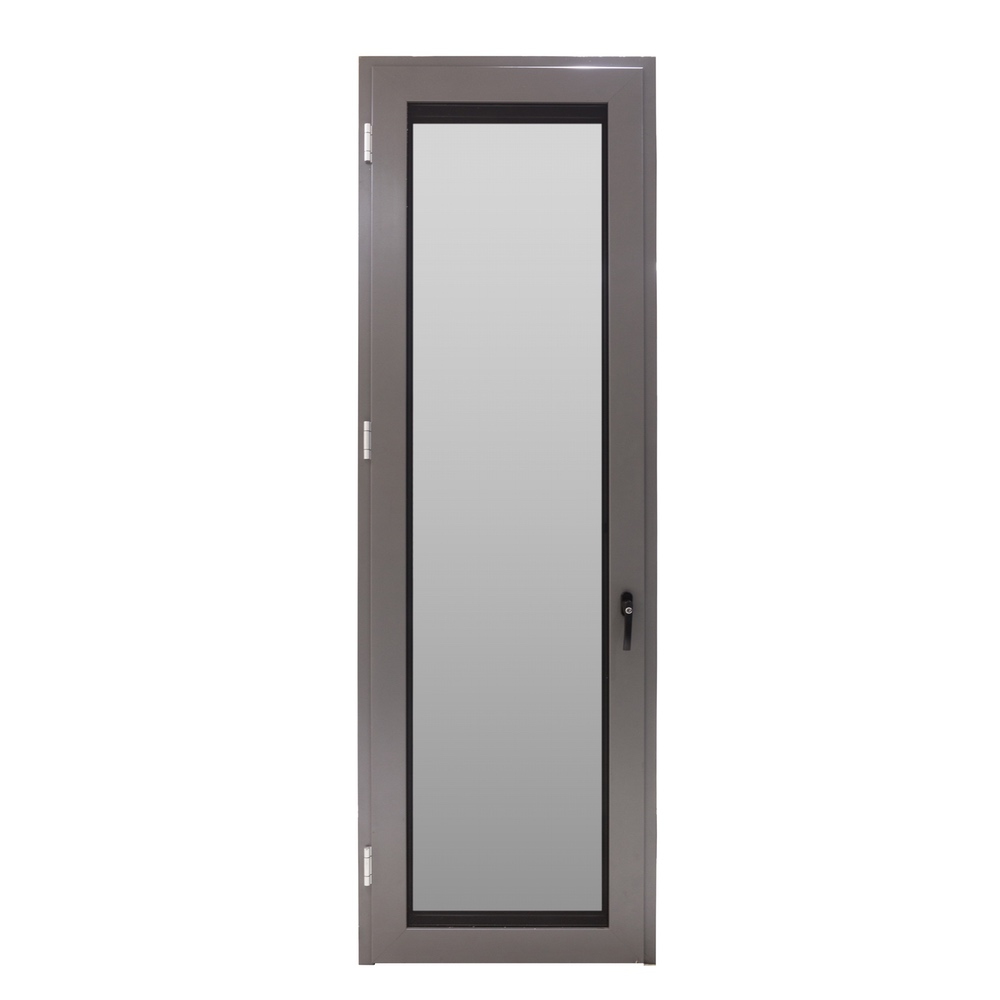

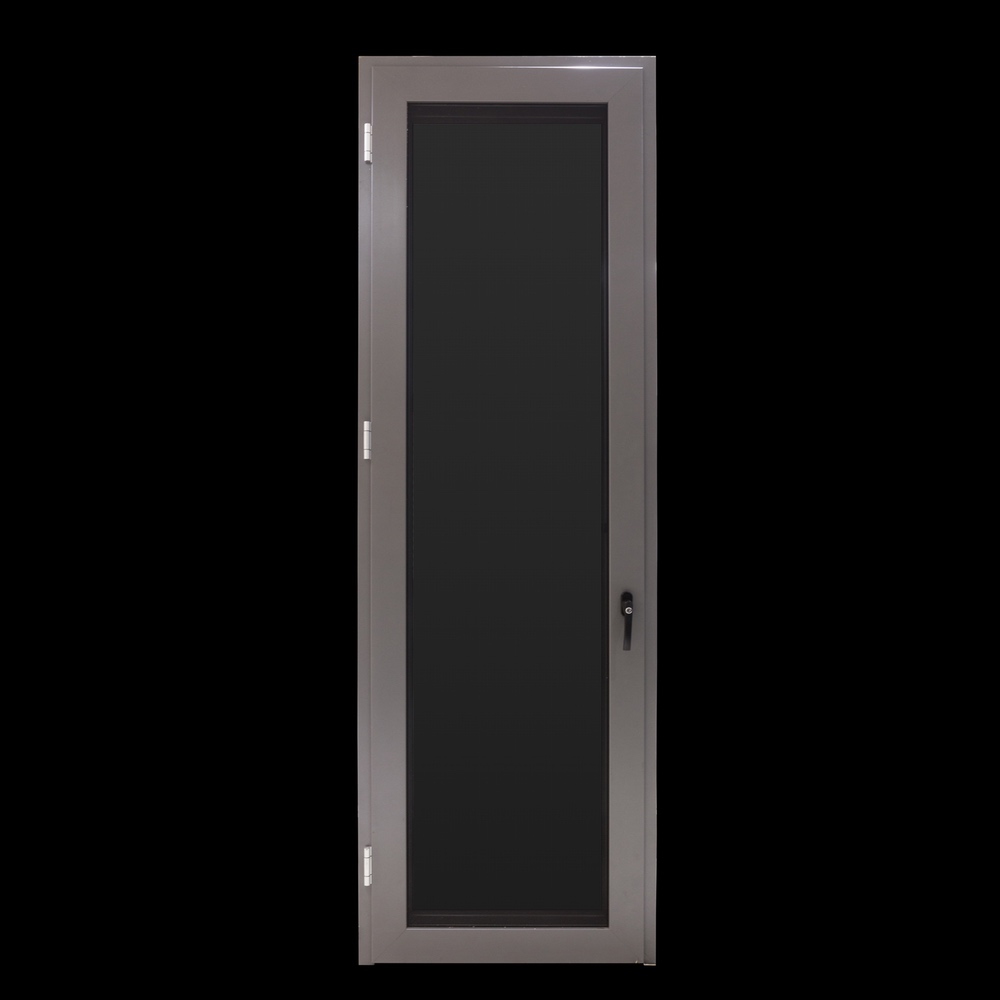

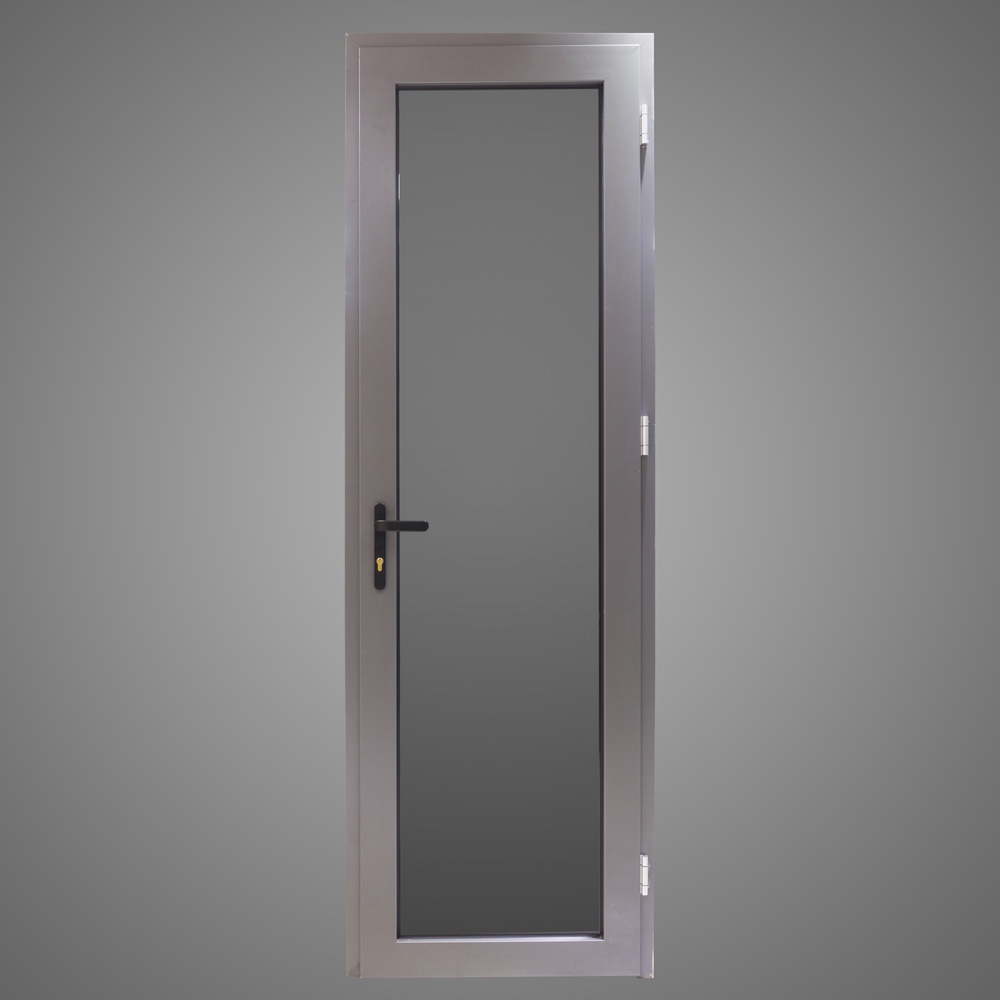

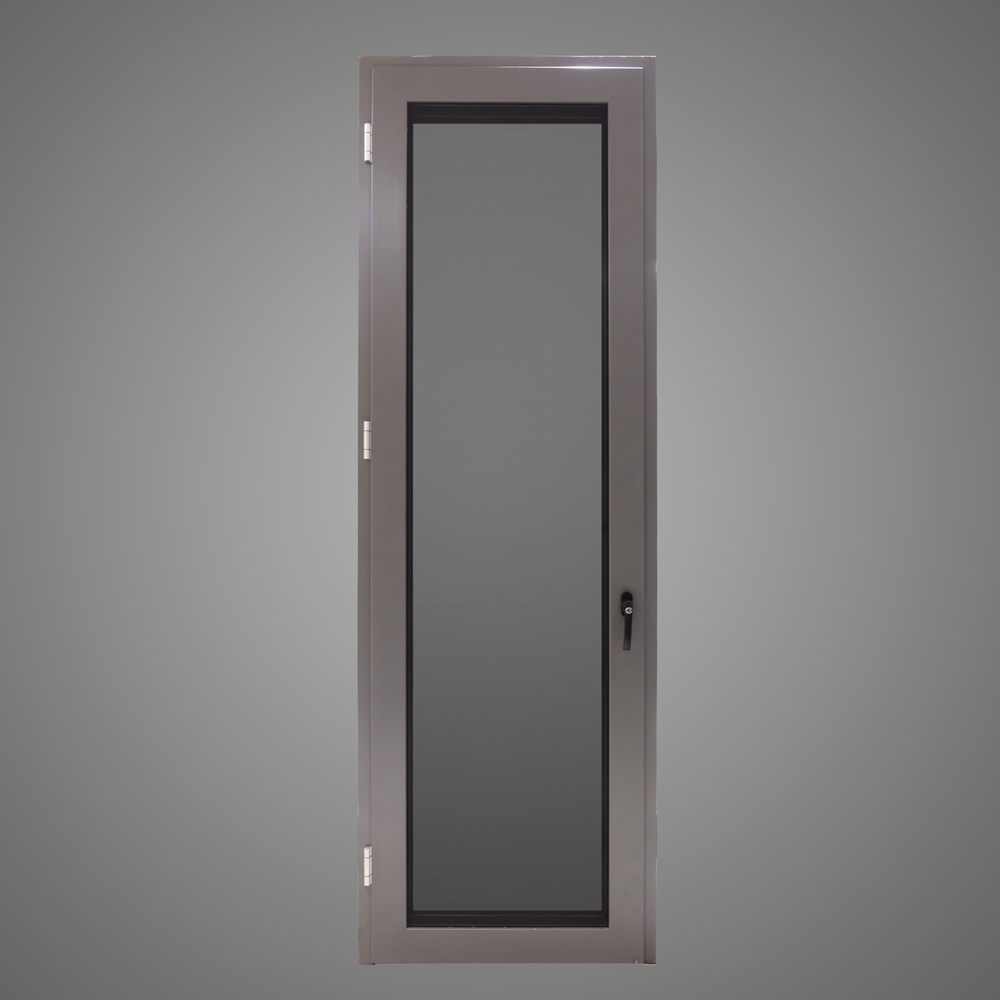

Aluminium Casement door (AL110)
Product Description
* Aluminium frame width 110mm.
*With a glass panel open outside and a screen door open inside, the thermal break profile system
* Can be made as single doors or double doors
* Available in powder-coated in all RAL color or anodised silver, black, brown
* Available in standard 5mm+20A+5mm doulbe glass, laminated safety glass.
*Stainless steel mesh
Optional Features
* EPDM gasket or sealant optional.
* Optional single or double glasses
* Open inwards or outwards optional

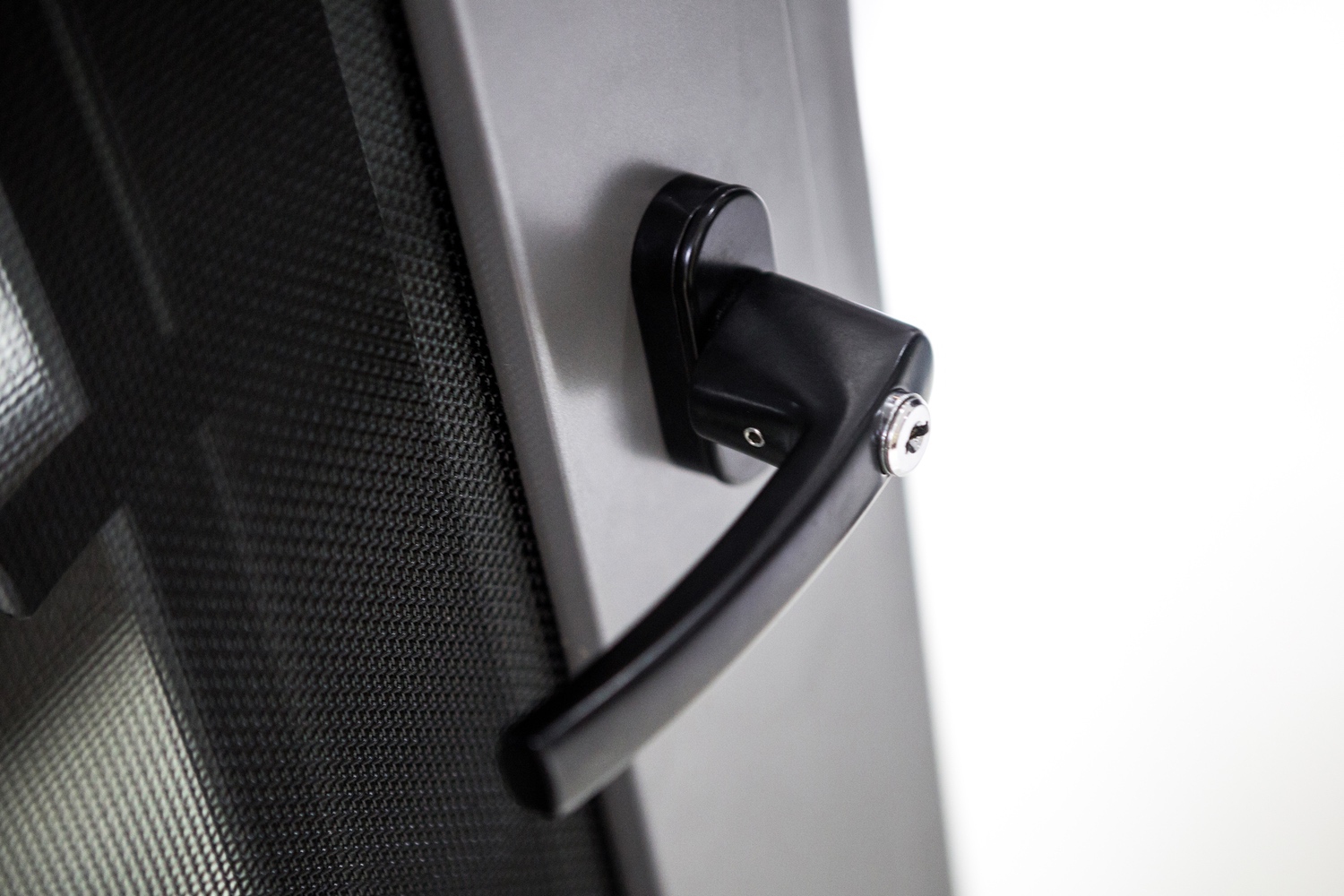

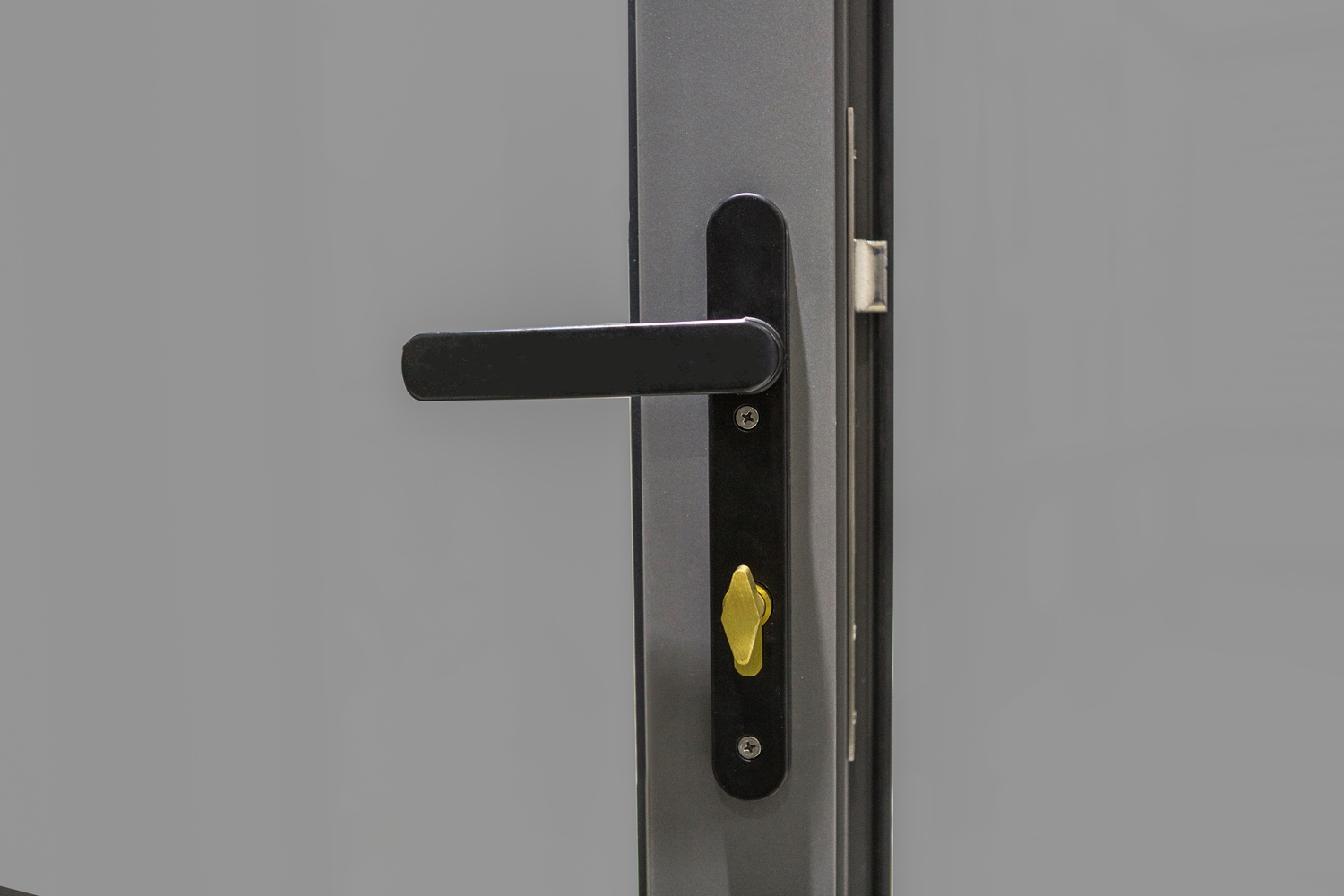

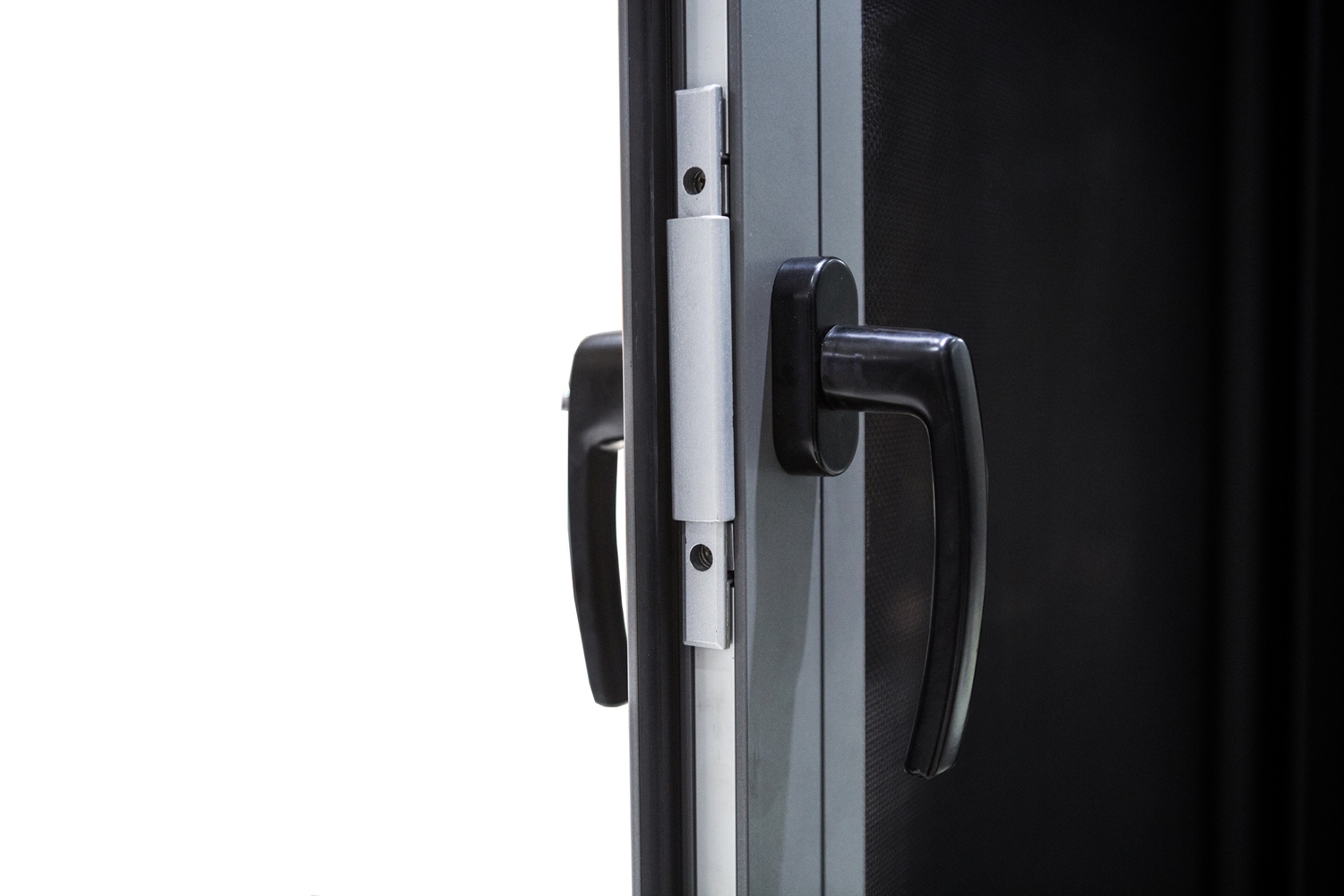

* Choice of high-end door handles ,Chinese Top quality or Germany brand
General description:
Tech Specs
Color
Glass
Srceens
Hardware
Product Detail
* Aluminium 6063-T5, a high-tech material for profiles and reinforcement.
*High quality glass fiber thermal break insulation bar with high loading capacity
*10-15 years warranty in powdercoating surface treatment
*System of multiple hardware locks for weatherproofing and burglar resistance
*Corner locking key ensures the smooth surface joint and improves corner stability
*Glass panel EPDM foam weather sealing strip used for better performance and easier maintenance than standard glue
Color
Surface Treatment: Customized (Powder coated/ Electrophoresis/ Anodizing etc).
Color: Customized (White, black, silver etc any color is available by INTERPON or COLOR BOND).
Glass
Specifications Of Glass
1. Single Glazing: 4/5/6/8/10/12/15/19mm Etc
2. Double Glazing: 5mm+12a+5mm, 6mm+12a+6mm, and 8mm+12a +8mm, with the option of a silver or black spacer
3. Laminated Glazing: 5mm+0.76pvb+5mm, 6mm+1.14pvb+6mm, and 3mm+0.38pvb+3mm transparent, tinted, low-E, reflective, and tempered.
4. With AS/nzs2208, As/nz1288 Certification
Screen
Specifications of Screen
1. Stainless Steel 304/316
2. Firber Screen

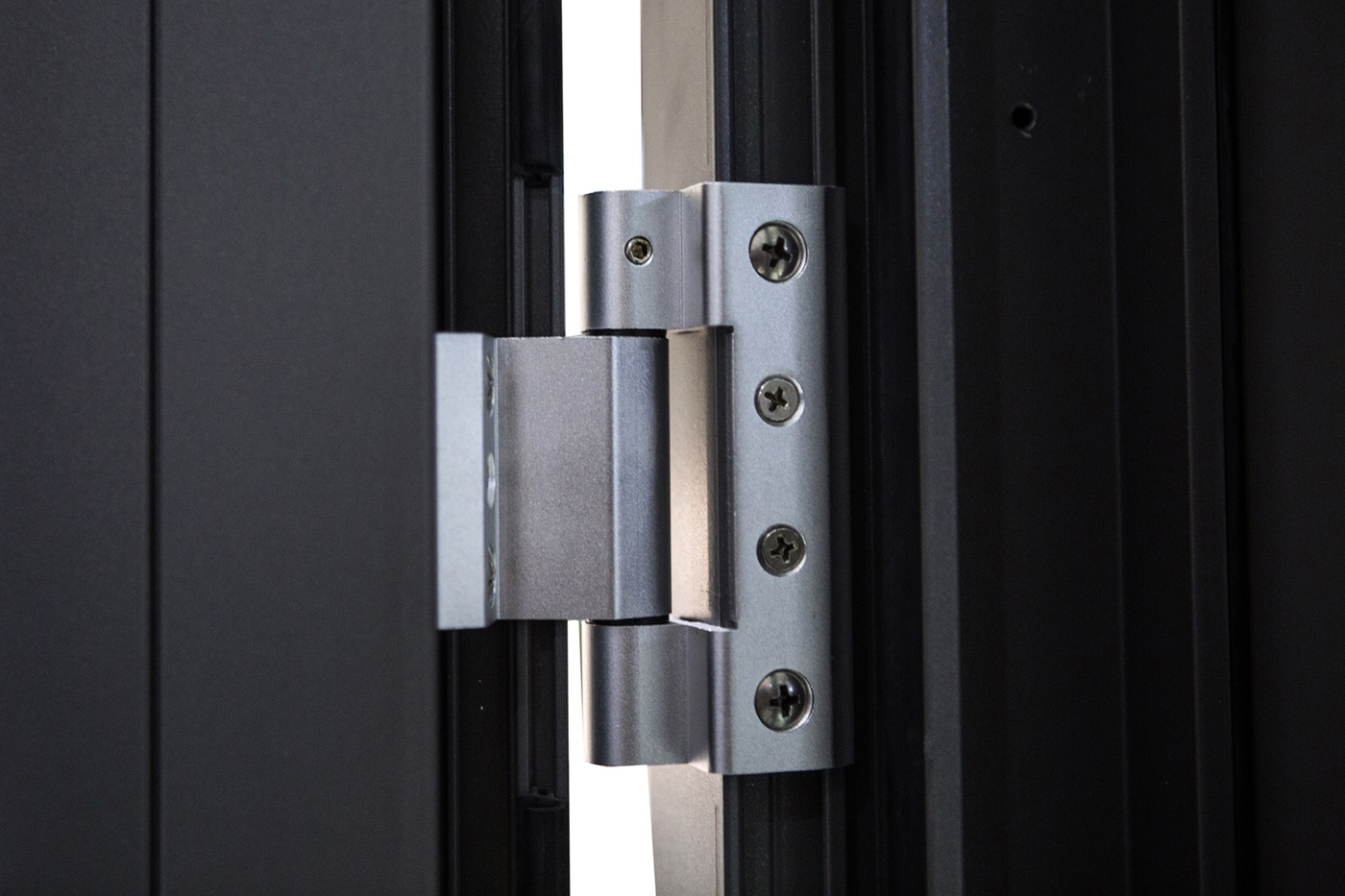

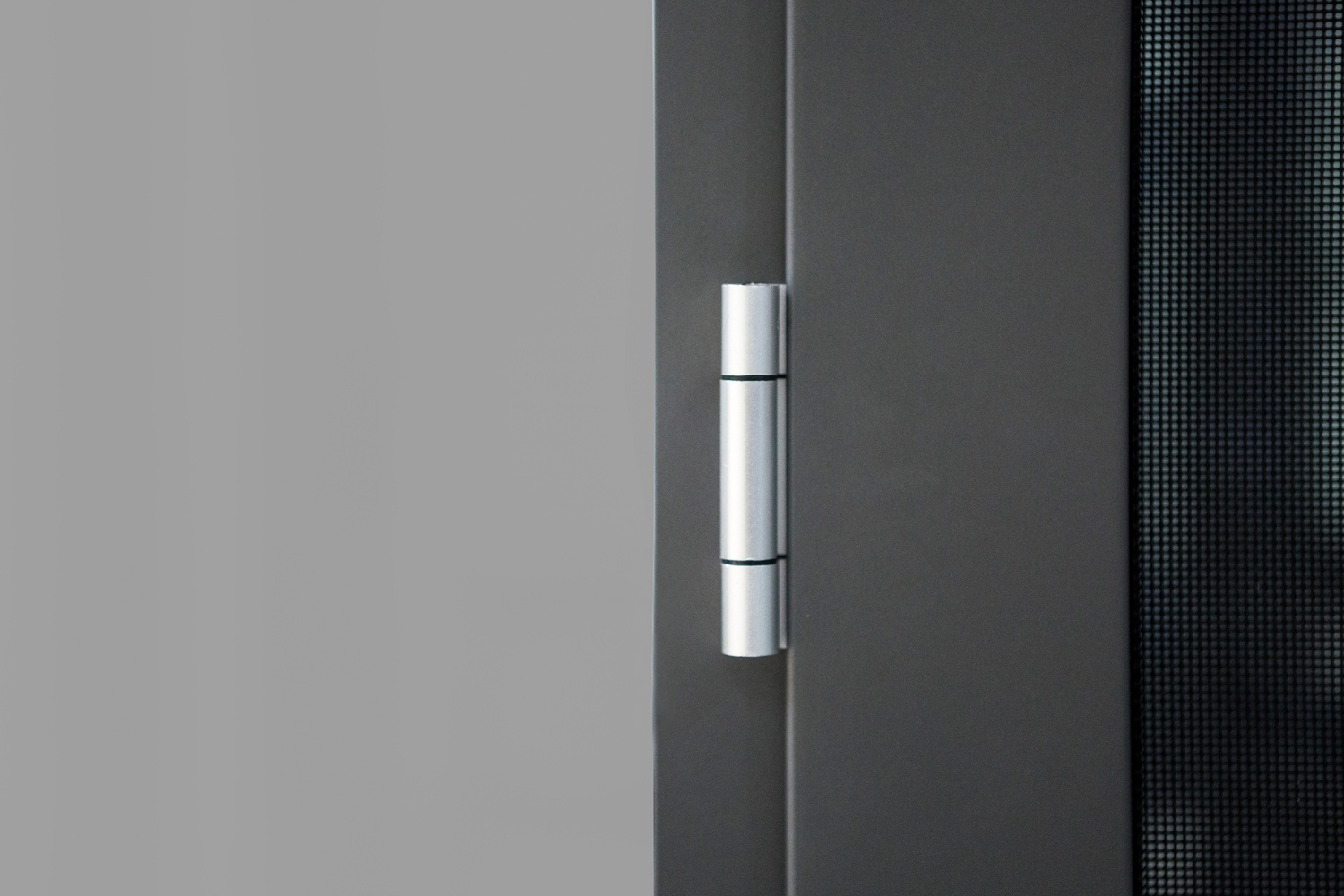

Hardware
Specifications of Hardware
1.China top Kinlong hardware
2.America CMECH hardware
3.German Hoppe hardware
4.China top PAG Hardware
5.German SIEGENIA hardware
6.German ROTO hardware
7.German GEZE hardware
8.Aluwin choose seriously hardwares&accessories for customers with 10 years warranty
Why Choose Us
Customized - We are an aluminium company with more than 15 years of productive experience. Our teams provide solutions for varied sized and difficult projects, bringing the most qualified and cost-effective options for your engineer and design needs.
Technical Support -The independent local and abroad technology teams provide aluminium curtain walls technical support (such as wind load calculation, systems and façade optimization), installation guide.
System design -Develop new aluminium window and door systems with top-notch accessories to better suit the needs of the client target market based on the demands of the market and the client.
