In modern buildings, aluminium louvre windows are frequently employed. It has excellent UV resistance, good elasticity, superb shading and shielding, and is not easily deformed.They are equally appropriate for residential, commercial, and office structures. adding a decorative feature that serves a purpose to the building.

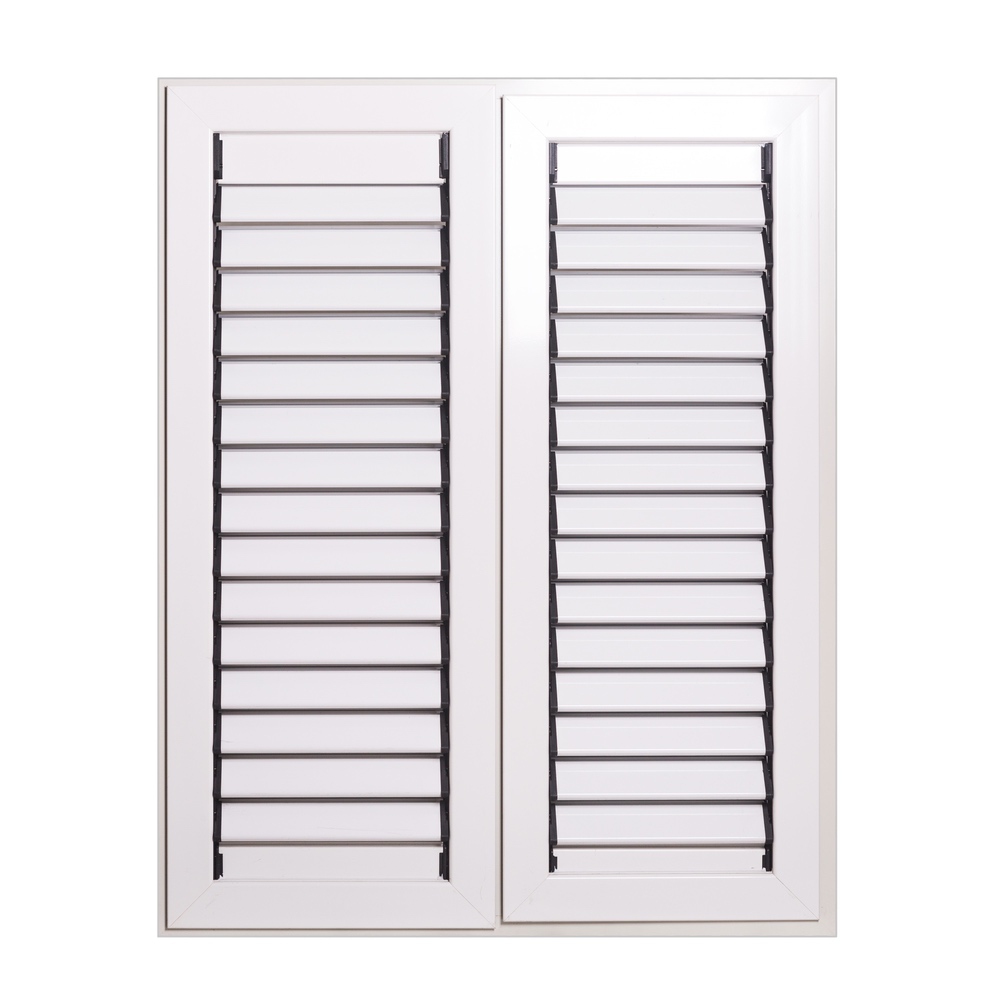

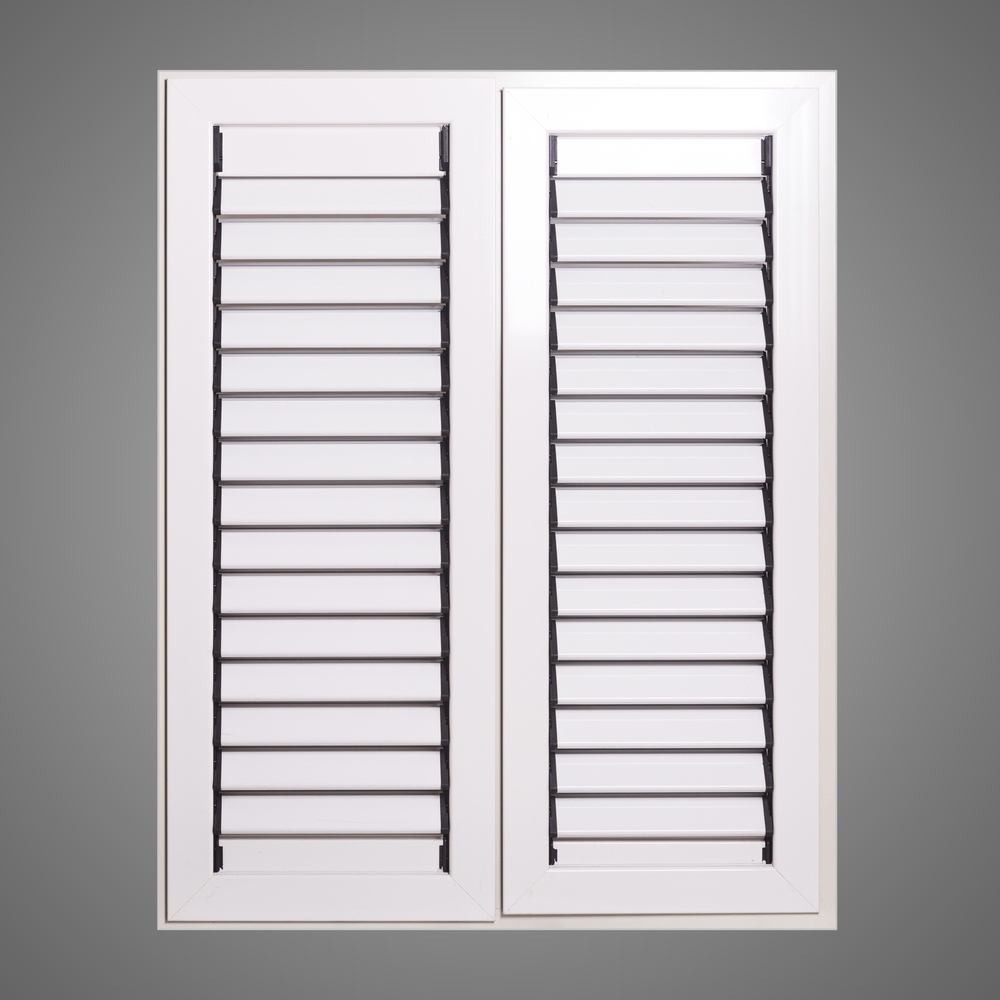

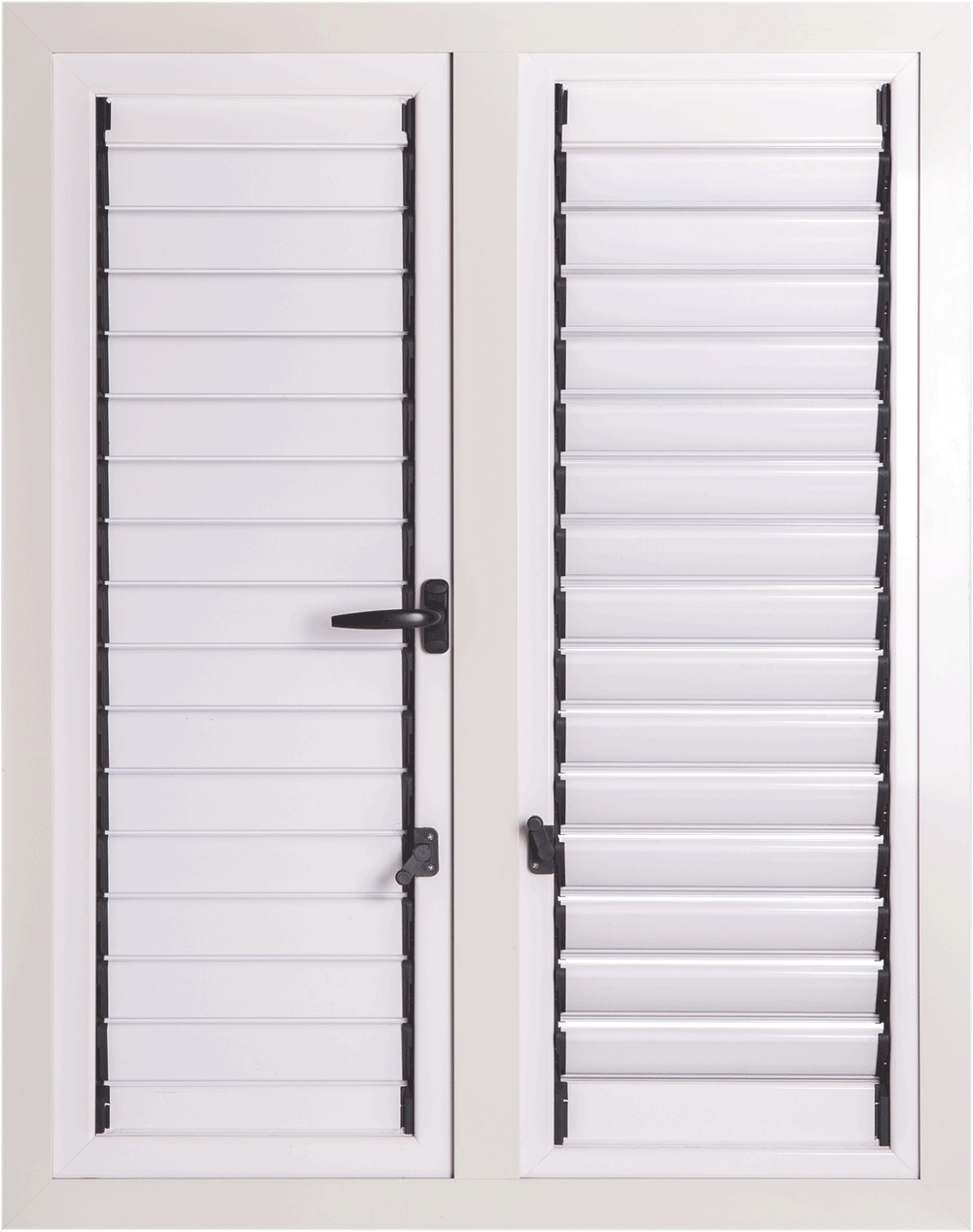

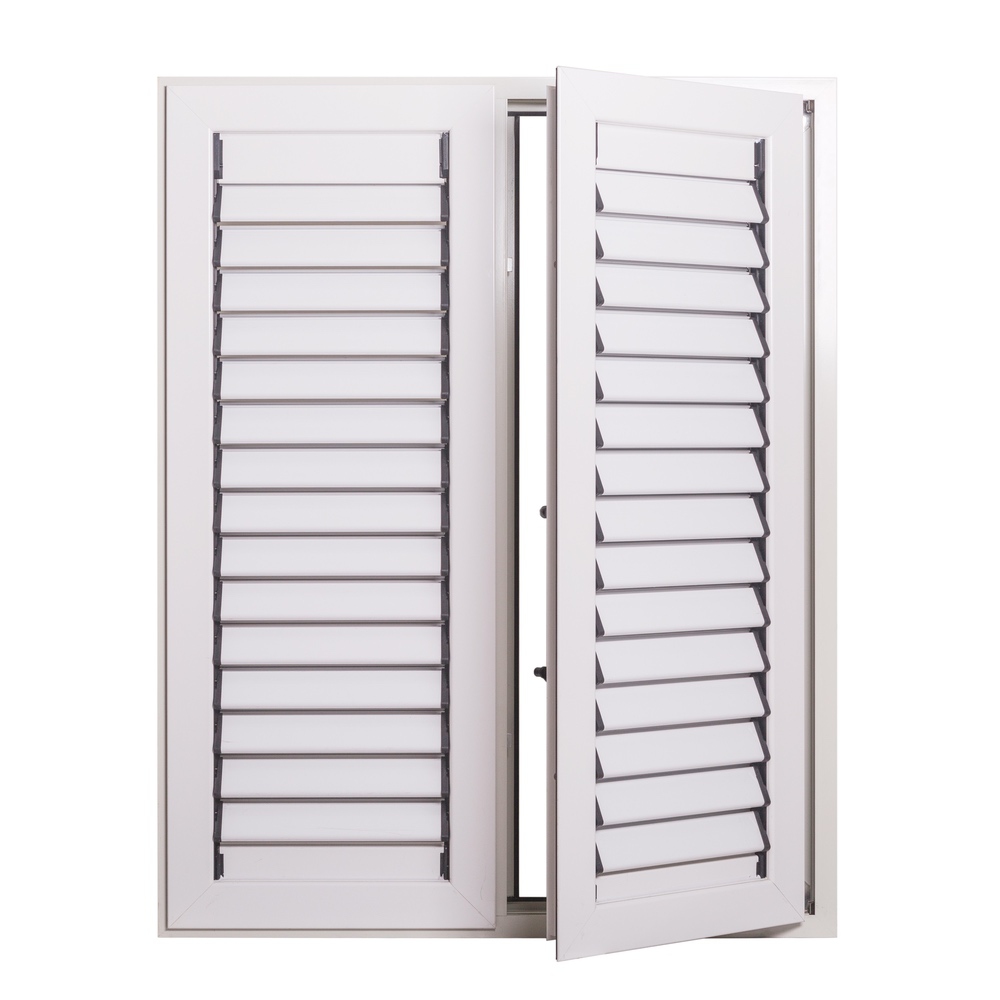

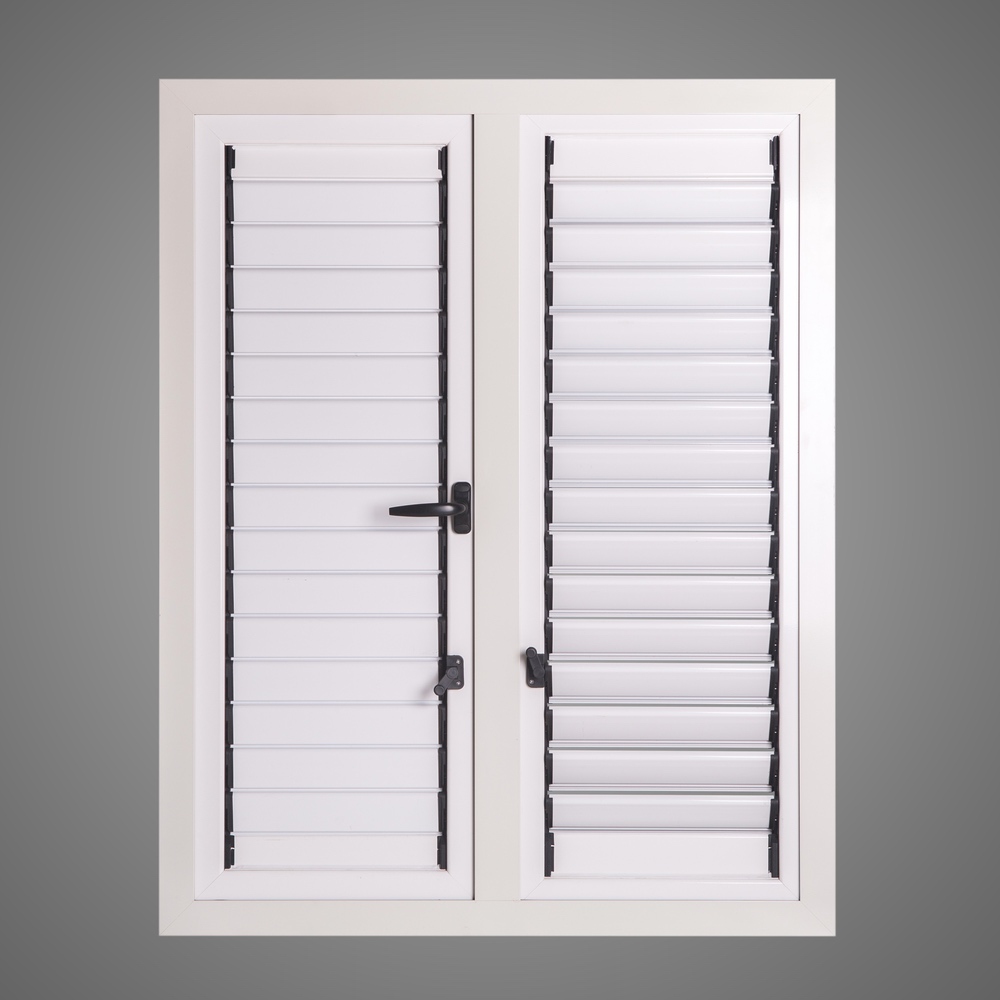

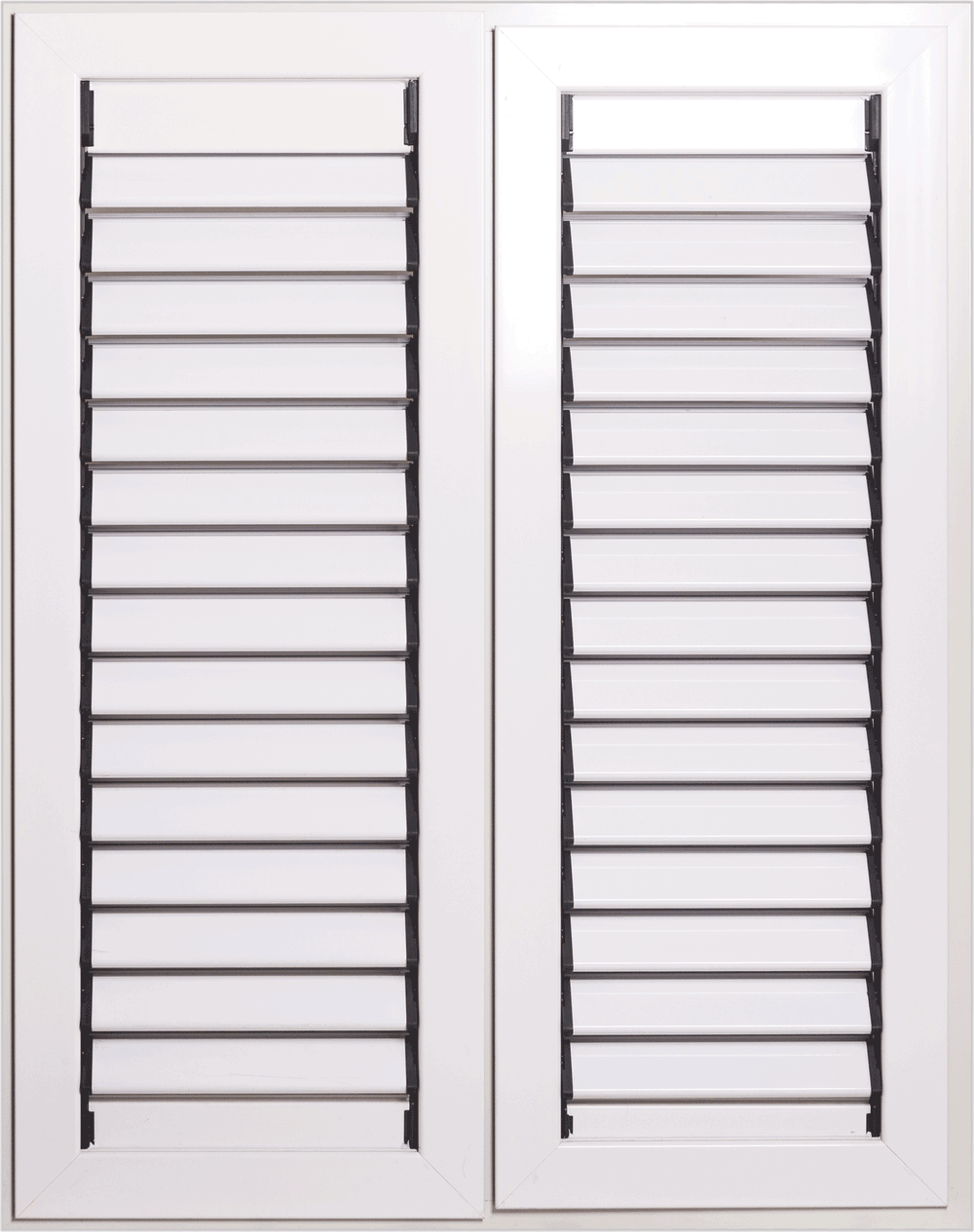

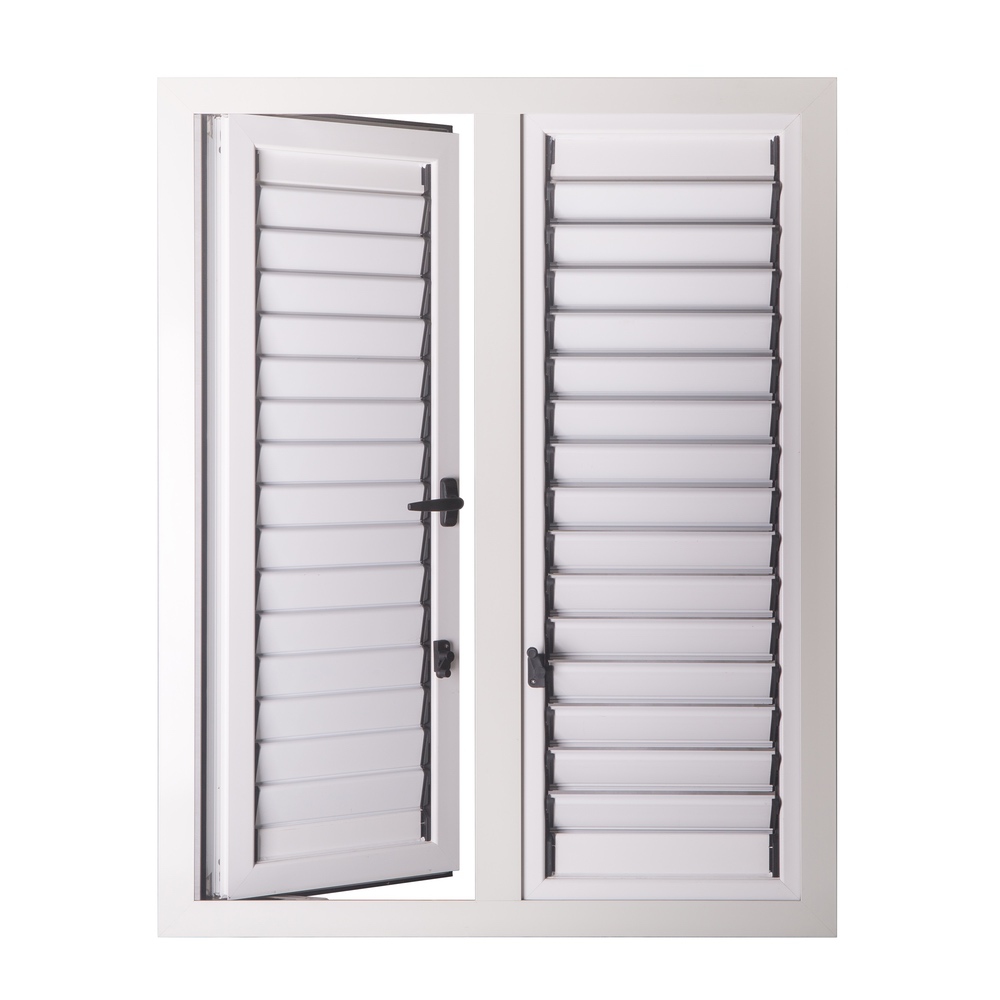

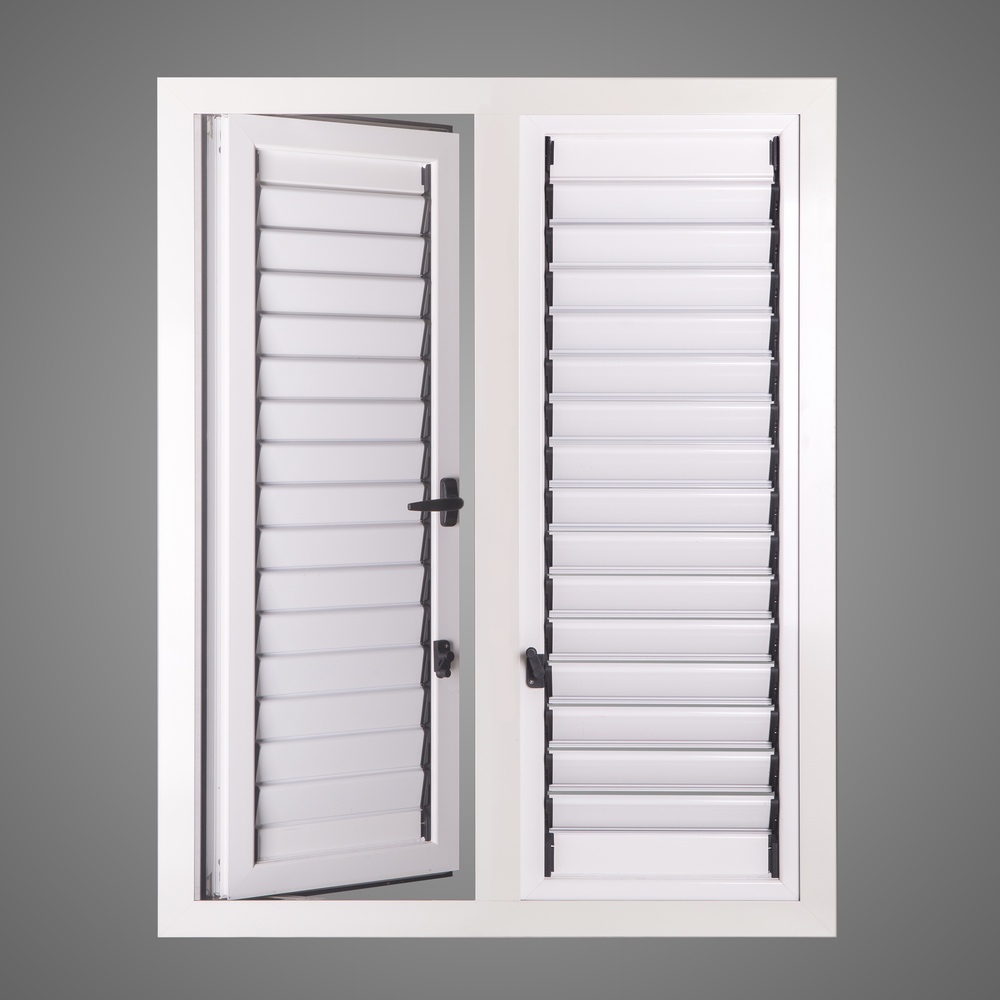

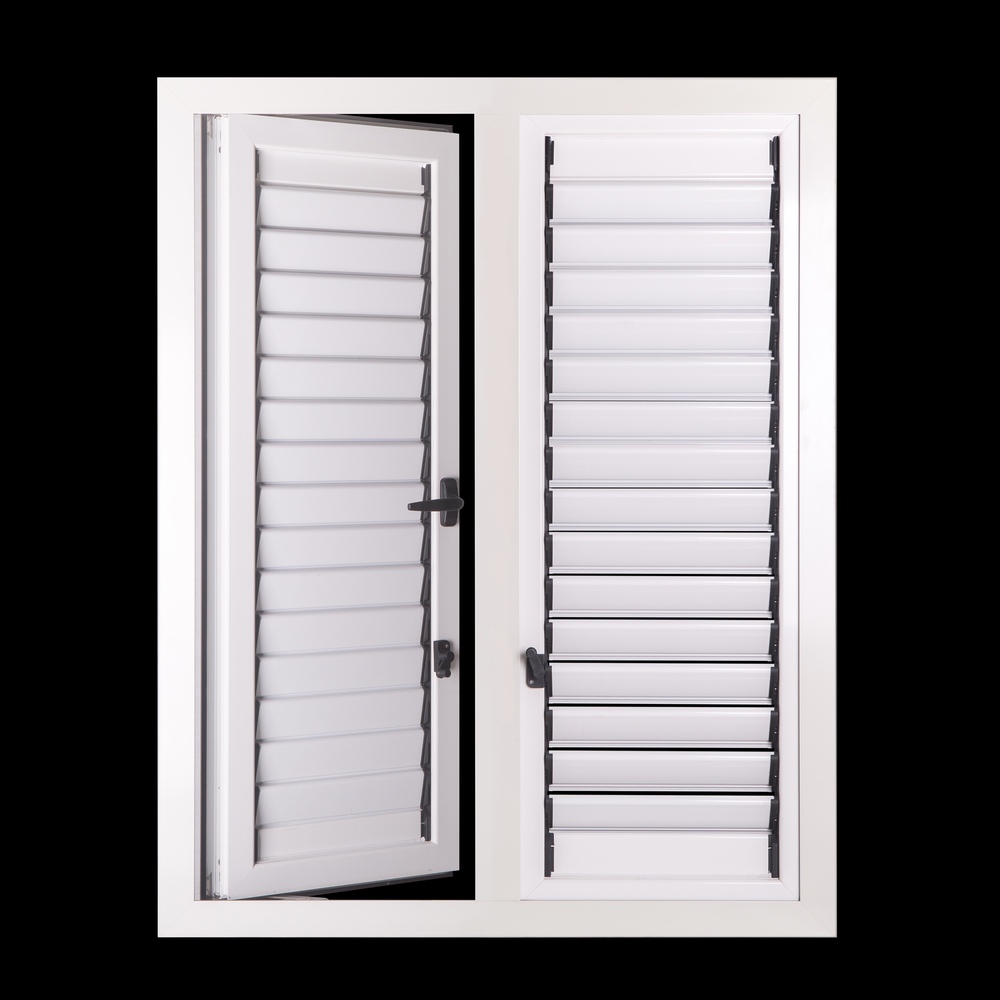

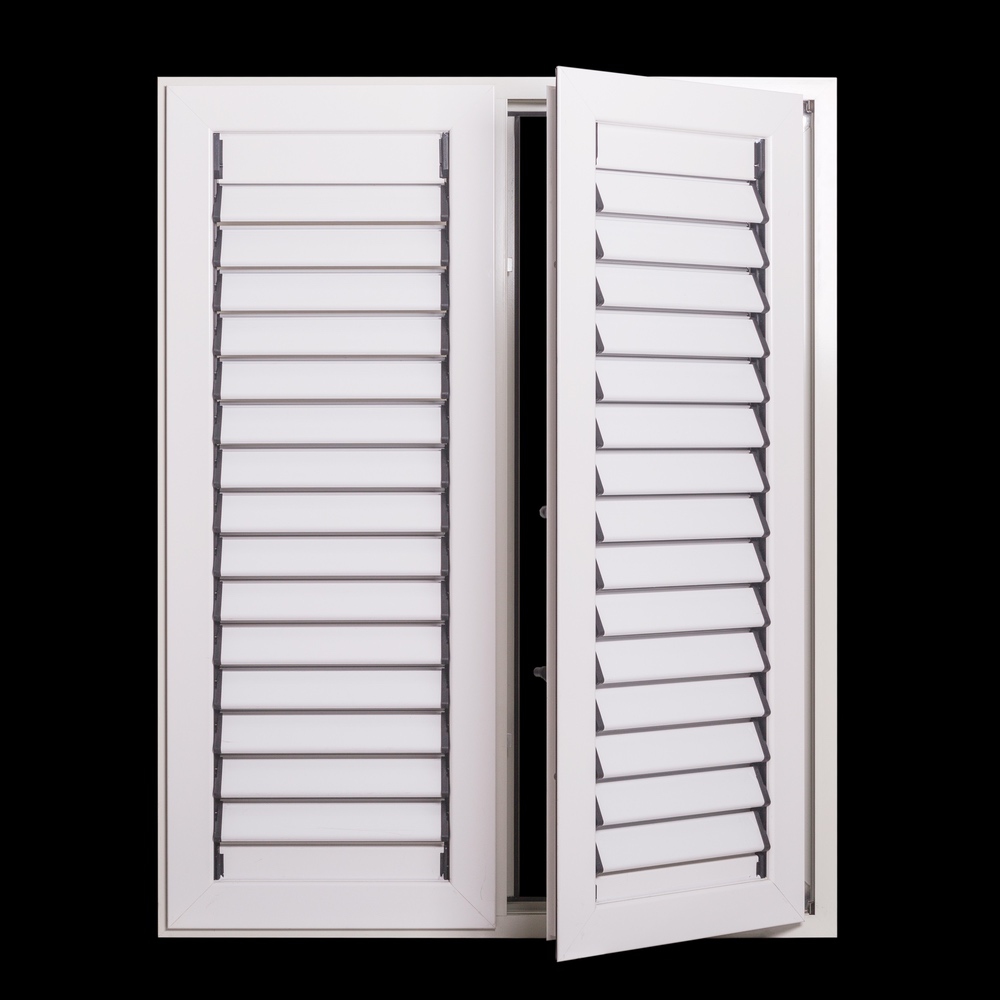

Aluminium openable louver（AL49）
Product Description
* louvre with aluminium blades. 50 mm in width.

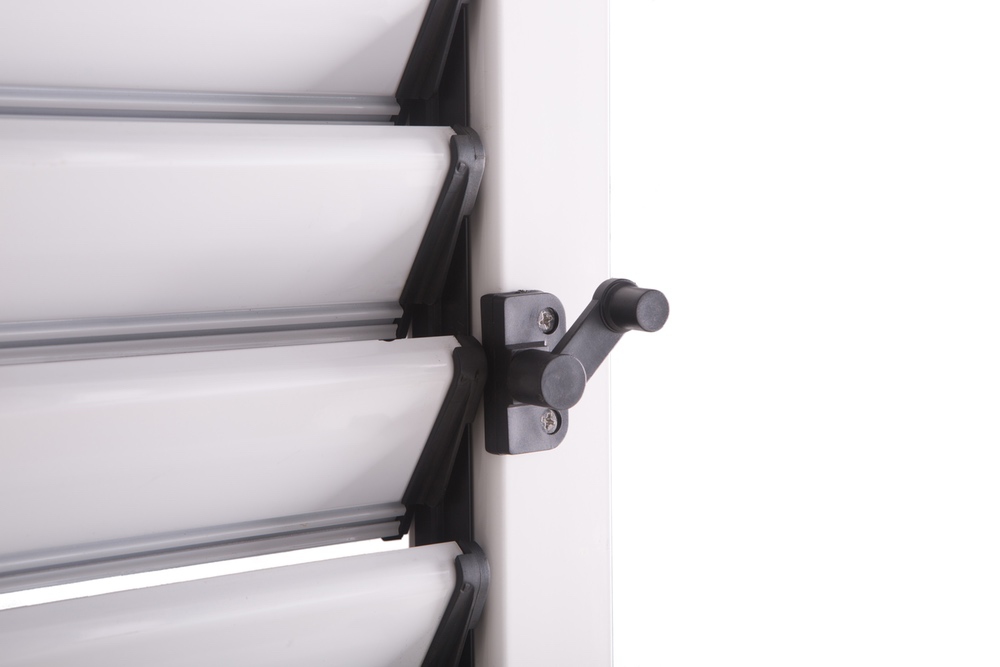

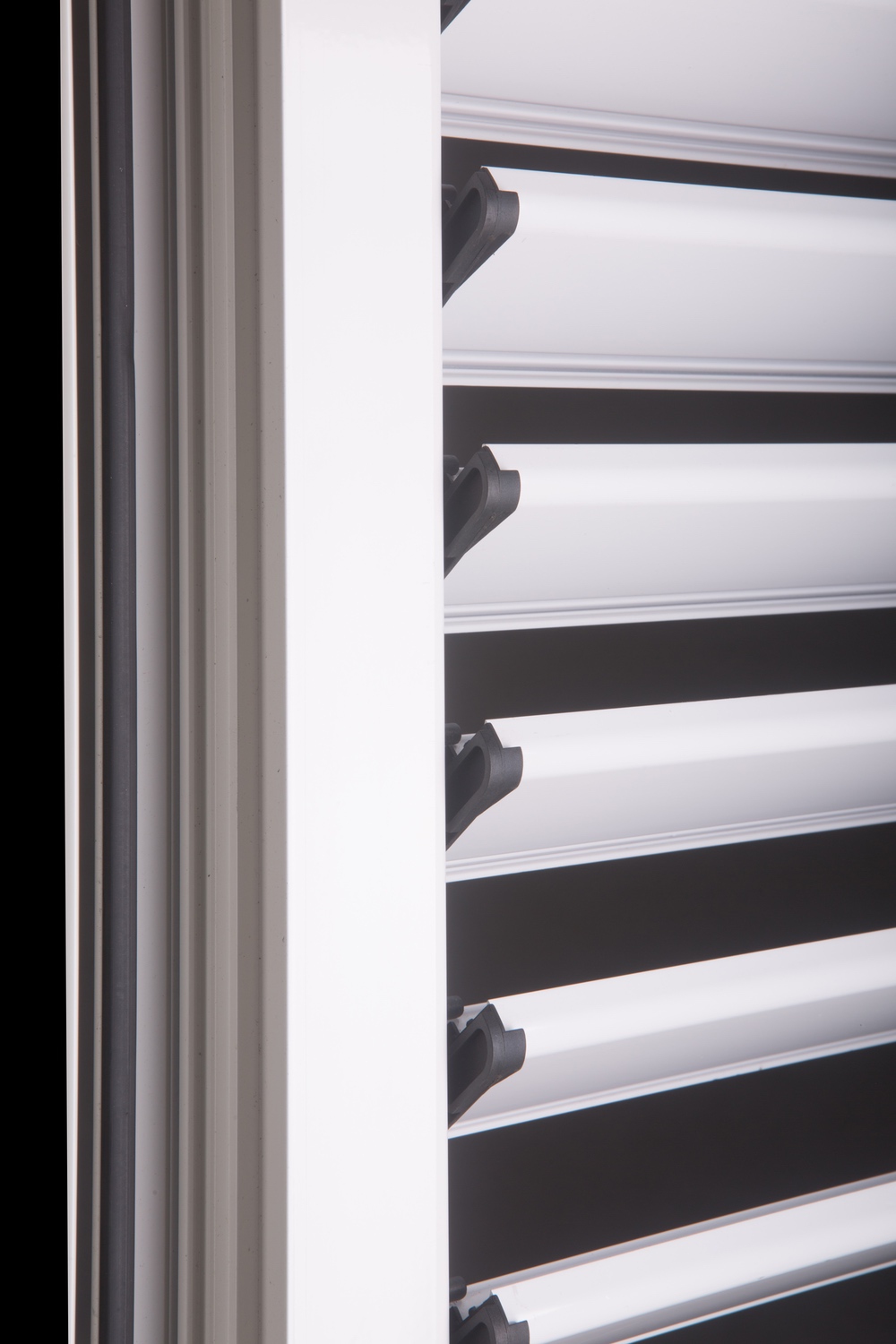

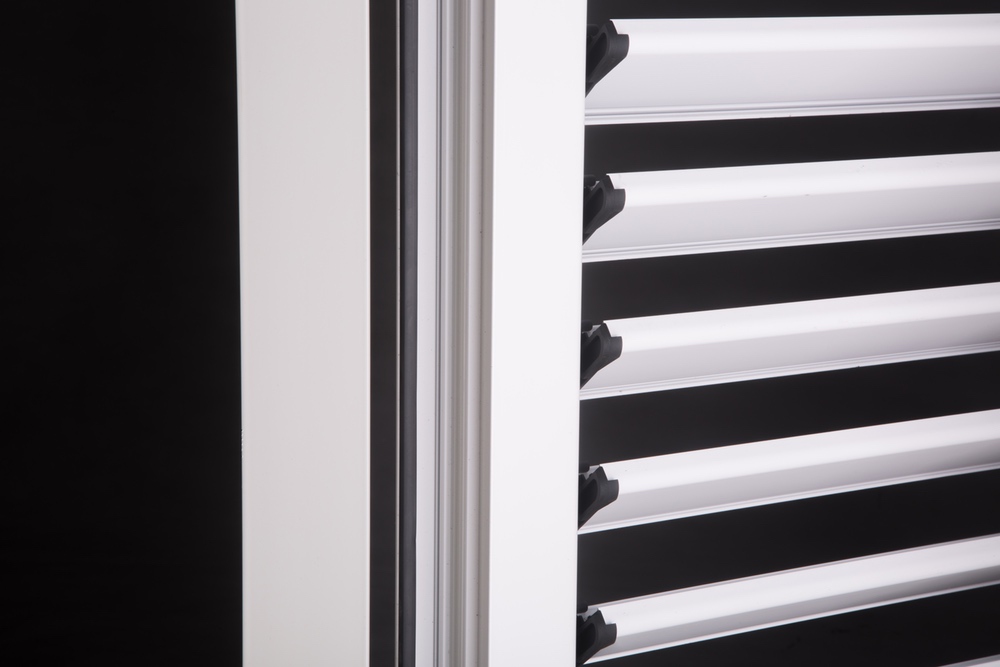

* Aluminium blades in oliver shape with selent around, good for air-tight when closed
* Available in anodised or powder-coated aluminium in all RAL color.
* Custom sizes also possible.
Optional Features

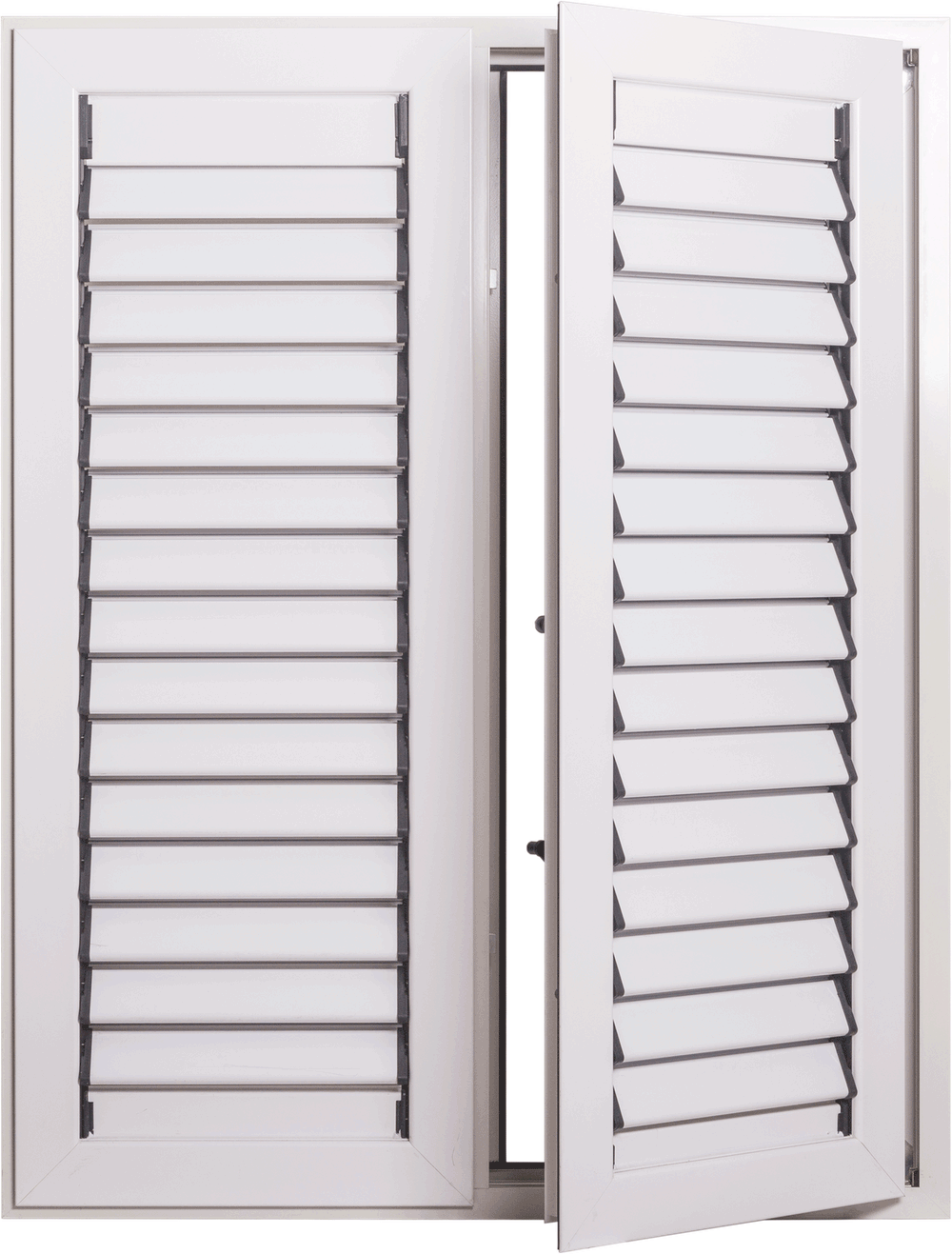

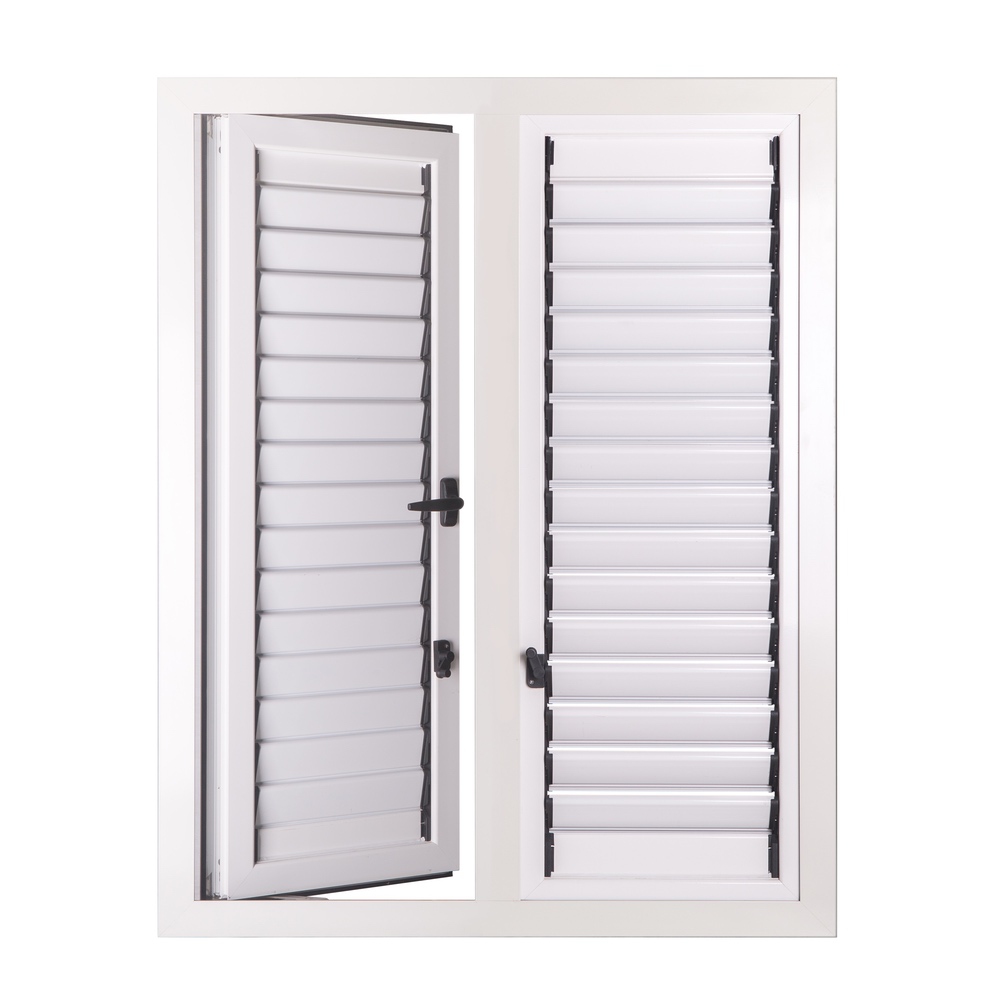

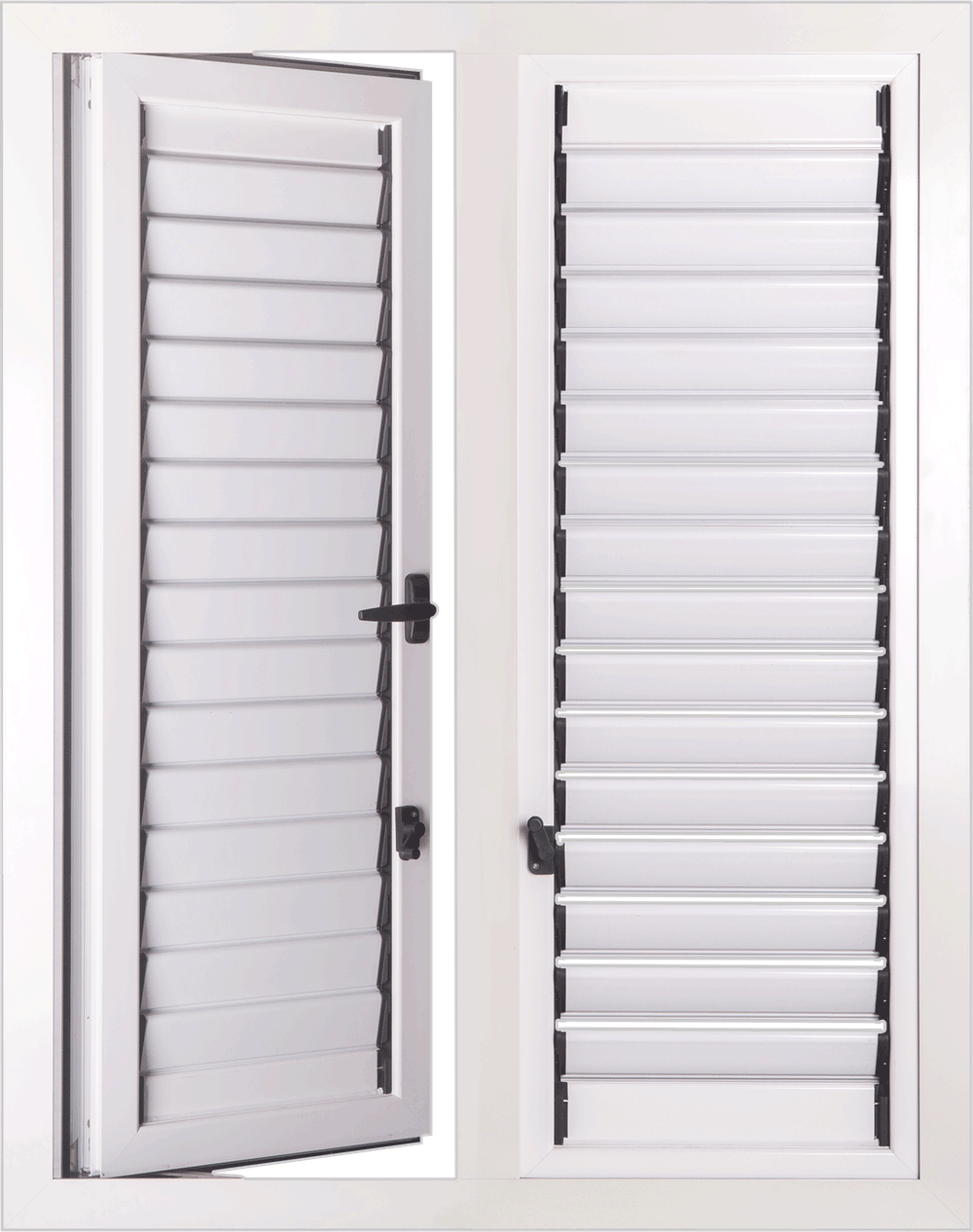

* Aluwin openable louver can be made as casement or fixed panel.
* Good for air ventilation. Openable louver can make it as a casement window as well, it meet different requirement.
* When you open an openable louvre, more light and fresh air enter the space.
* Oliver shape louver blades, Z shape ,flat shape for your choice
General description:
Tech Specs
Color
Glass
Srceens
Hardware
Product Detail
* Aluminium alloy 6063-T5, high tech profile and renforce material
*High quality glass fiber thermal break insulation bar with high loading capacity
*10-15 years warranty in powdercoating surface treatment

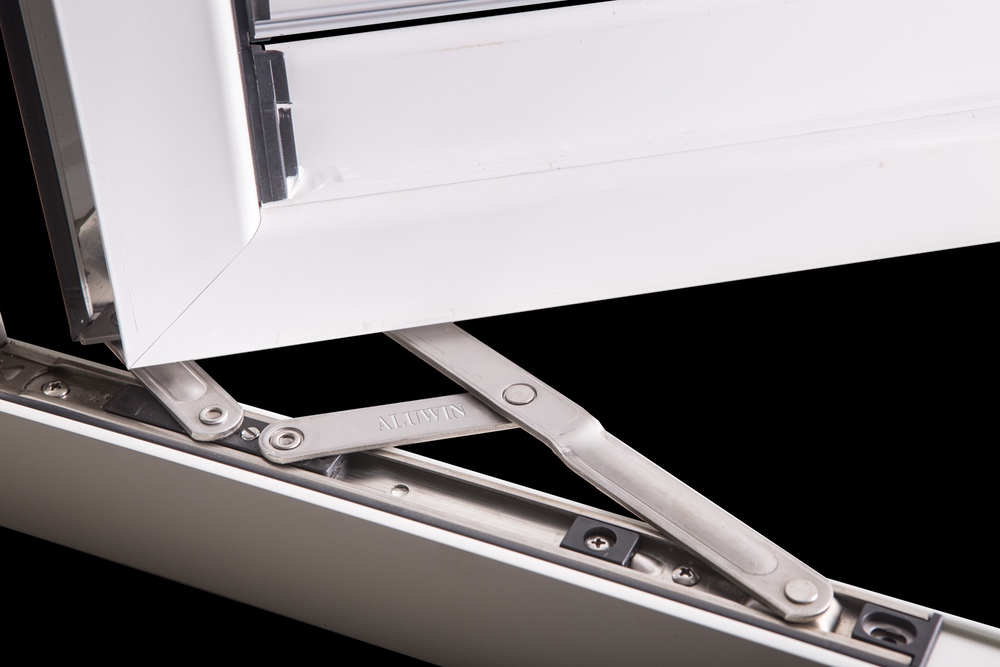

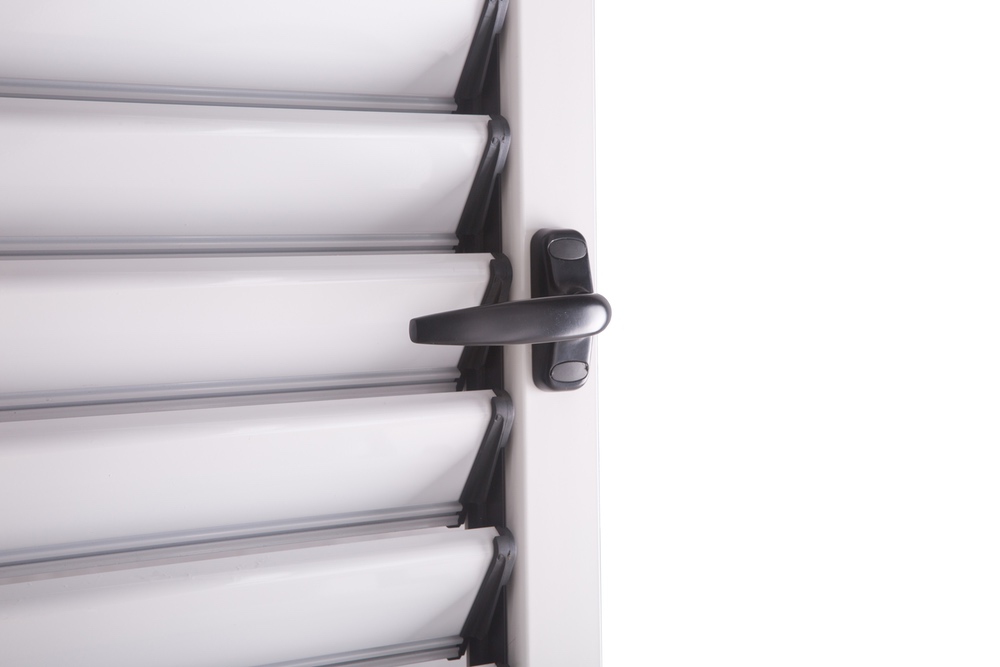

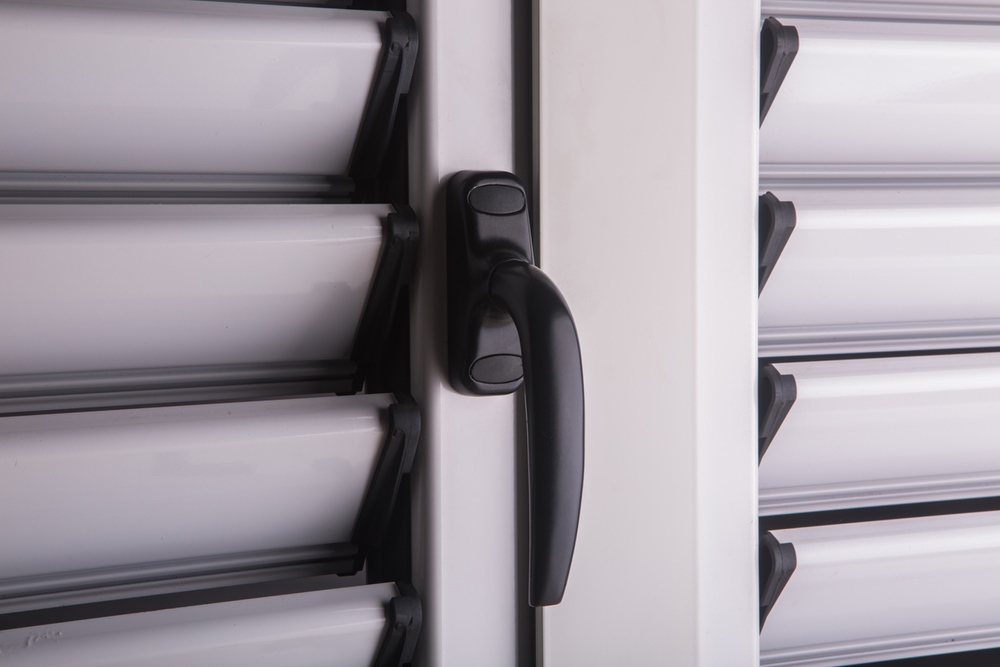

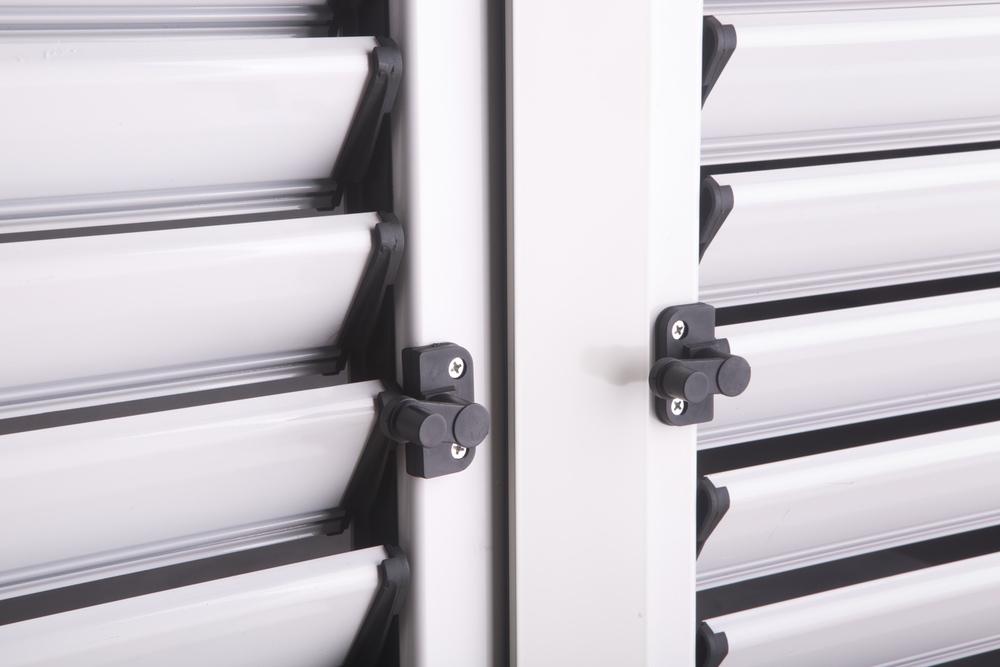

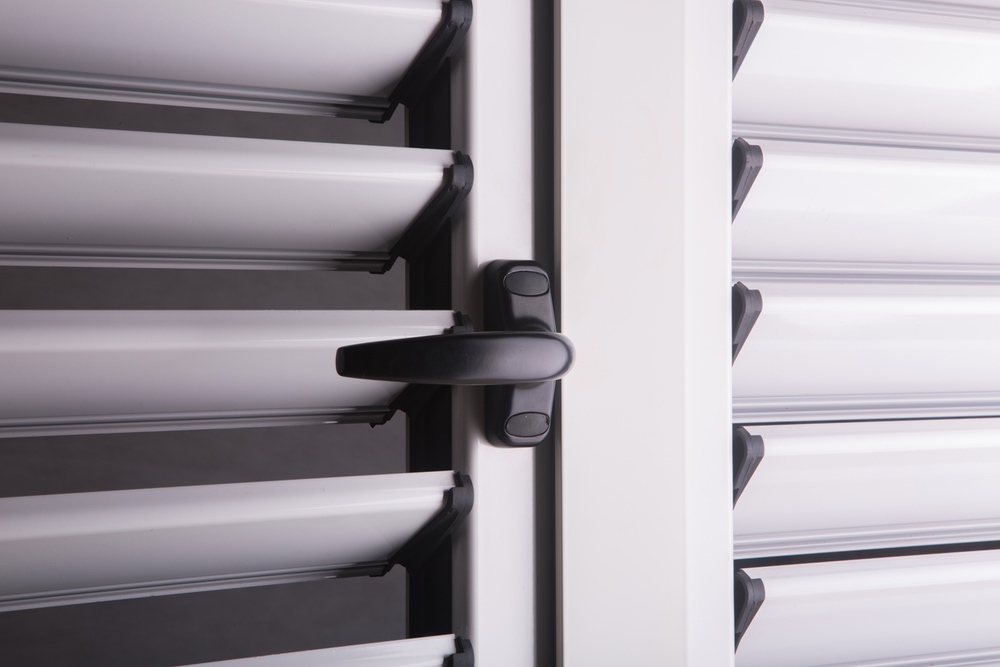

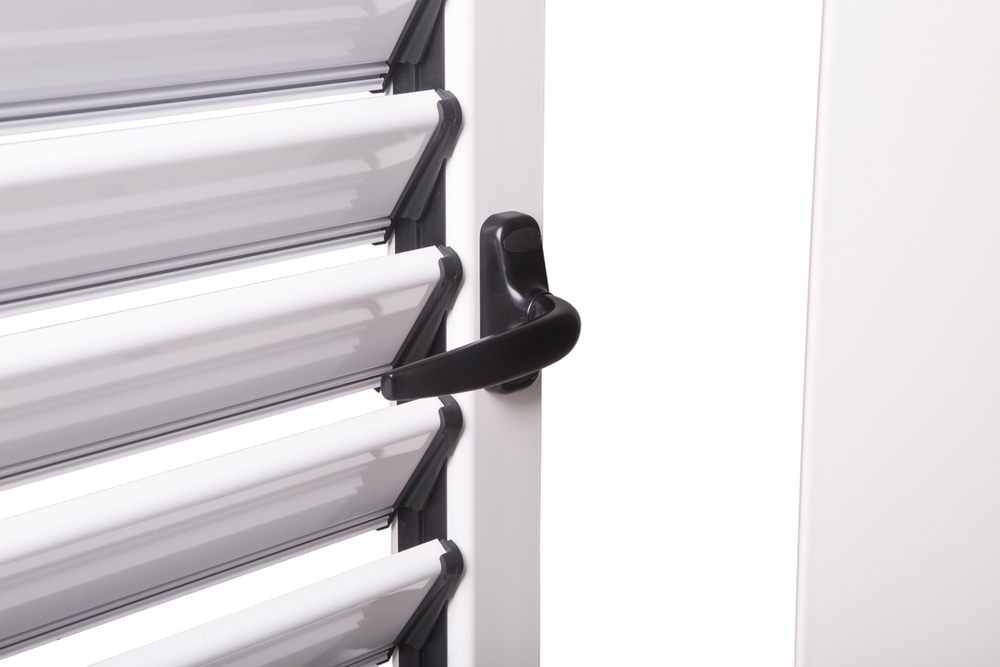

*Multi-point hardware lock system for weather sealing and burglarproofing

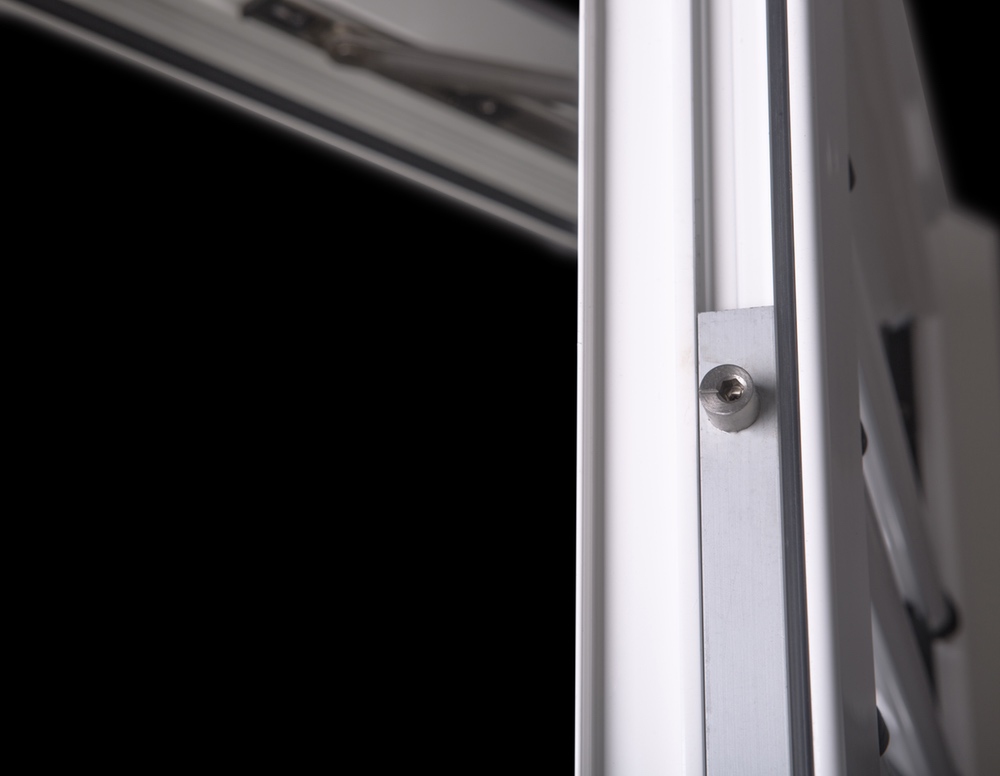

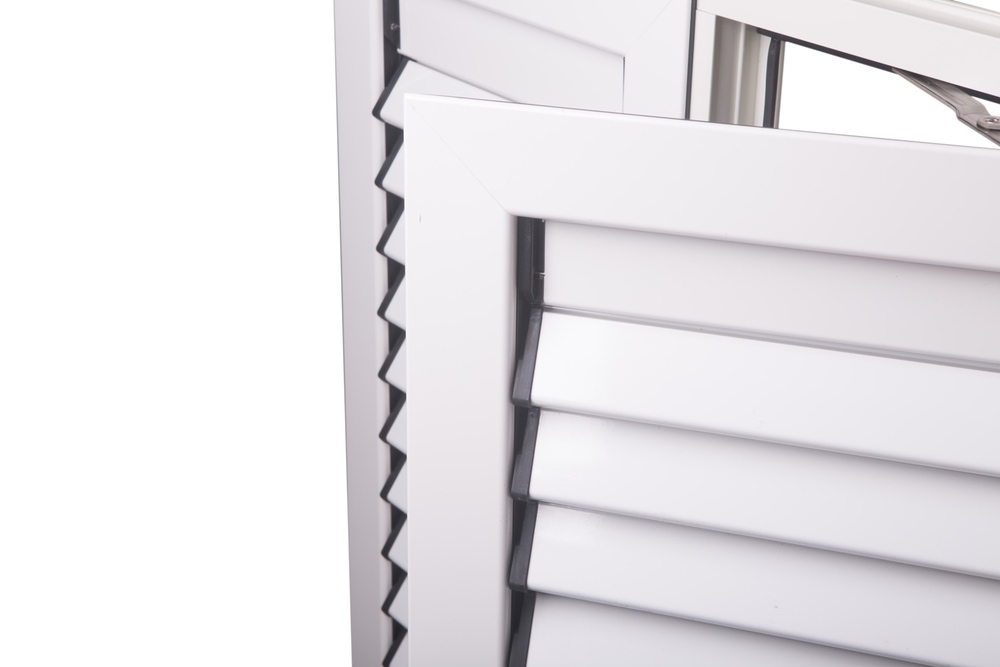

*Corner locking key ensures the smooth surface joint and improves corner stability
*Glass panel EPDM foam weather sealing strip used for better performance and easier maintenance than standard glue
Color
Surface Treatment: Customized (Powder coated/ Electrophoresis/ Anodizing etc).
Color: Customized (White, black, silver etc any color is available by INTERPON or COLOR BOND).
Glass
Specifications Of Glass
1. Single Glazing: 4/5/6/8/10/12/15/19mm Etc
2. Double Glazing: 5mm+12a+5mm, 6mm+12a+6mm, and 8mm+12a +8mm, with the option of a silver or black spacer
3. Laminated Glazing: 3mm+0.38pvb+3mm, 5mm+0.76pvb+5mm, 6mm+1.14pvb+6mm
Tempered ,clear, Tinted, Low-E, Reflective, Forsted.
4. With AS/nzs2208, As/nz1288 Certification
Screen
Specifications of Screen
1. Stainless Steel 304/316
2. Firber Screen

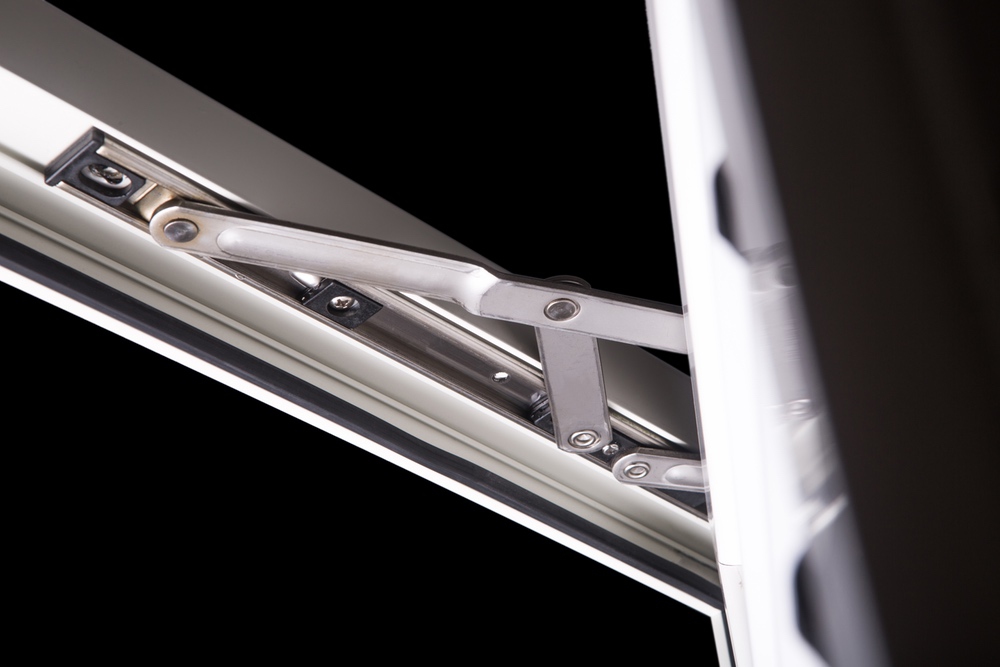

Hardware
Specifications of Hardware
1.China top Kinlong hardware
2.America CMECH hardware
3.German Hoppe hardware
4.China top PAG Hardware
5.German SIEGENIA hardware
6.German ROTO hardware
7.German GEZE hardware
8.Aluwin choose seriously hardwares&accessories for customers with 10 years warranty
Why Choose Us
Customized - We are an aluminium manufacturer with more than 15 years of fruitful and beneficial experience in this field. For your engineer and design requirements, our experts present the most qualified and cost-effective proposals, offering solutions for projects of varied sizes and complexity.
Technical Support -The independent local and abroad technology teams provide aluminium curtain walls technical support (such as wind load calculation, systems and façade optimization), installation guide.
System design -Create new aluminium window and door systems based on market and client needs, then pair them with top-notch accessories to better satisfy those needs.
