When fully opened, the casement window allows you to fully open your home to the outside while also giving you the option to collect as much or as little of any cross breezes. Excellent way to regulate the amount of wind, rain, or ventilation entering the space.

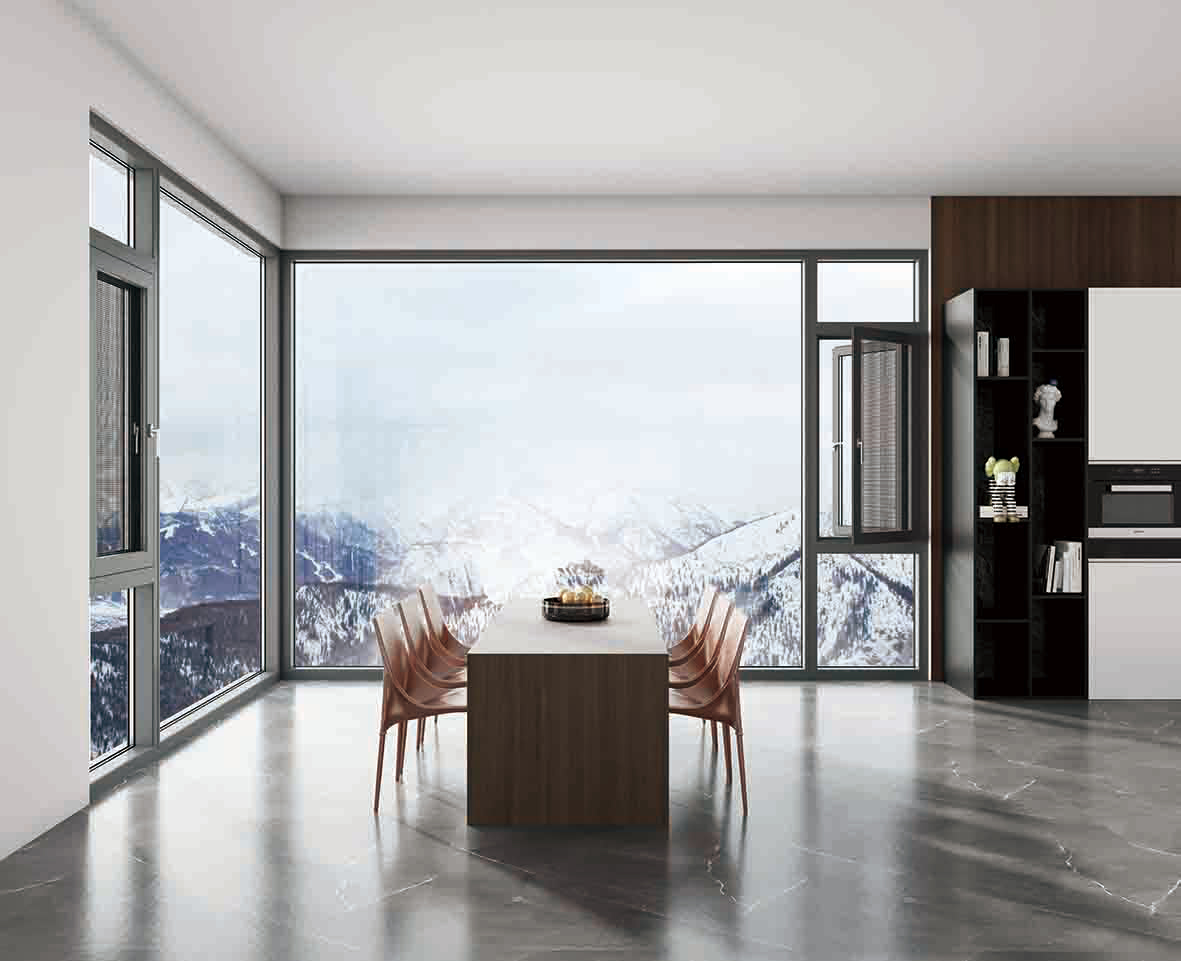

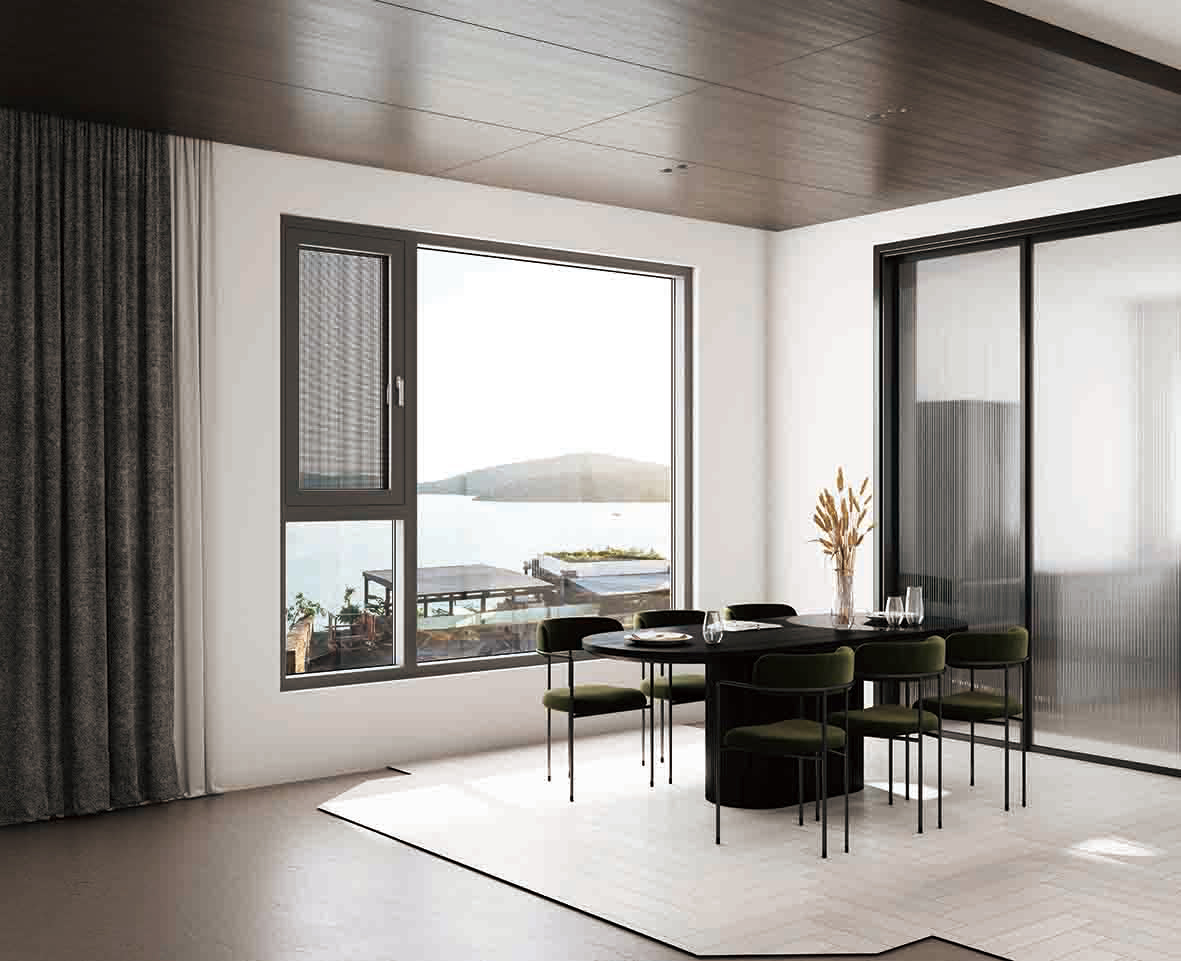

Aluminium thermal break casement window with screen（AL110）
Product Description
* Aluminium frame width 110 mm.
* The profile design adopts European style 45 degree joint crimping corner instead of adjustable corner make it more elegant and fastened.
* High quality material with top standard ensure window safety and weather resistance.

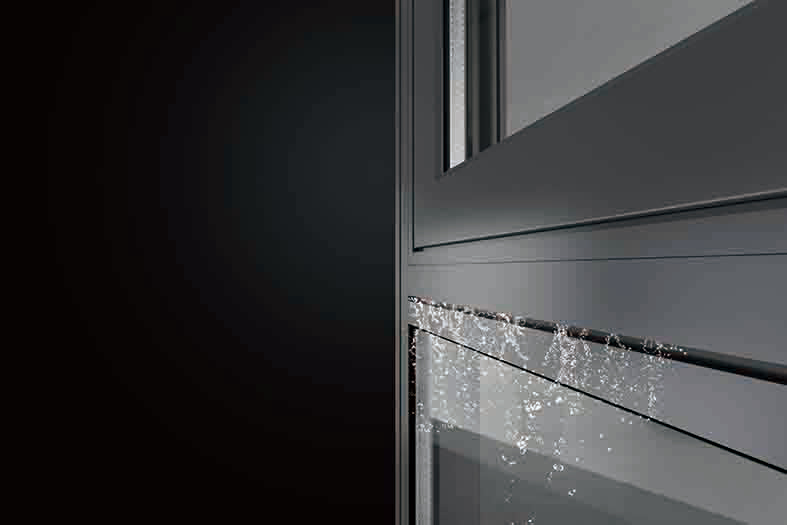

* The unique hidden drainage sub-frame design makes it have good drainage performance and safety performance.
* Available in anodised or powder-coated aluminium in all RAL color.
* Available in standard 5mm+20A+5mm double glaze,toughened glass or laminated safety glass.
* Glass can be tinted in a range of colours.
* Inward opening size up to 2150mm in height, and up to 1600mm in width
* Different custom sizes also possible.
Optional Features
* With or without grids and colonial bars.
* Casement side swing open options may be used with a hinge or a friction stay.
* Configuration can be outside ward, inside ward,and tilting ward open. Also can be with fixed toplight and sidelight panes incorporated.
* Different types lock for choice. Consult for detailed.
* Non-thermal system and thermal break system optional.
* Optional sealant or EPDM gasket.
General description:
Tech Specs
Color
Glass
Srceens
Hardware
Product Detail
* Aluminium alloy 6063-T5, high tech profile and renforce material
*High-quality thermal break insulation made of glass fibre has a large loading capacity.
*10-15 years warranty in powdercoating surface treatment
*System of multiple hardware locks for weatherproofing and burglar resistance

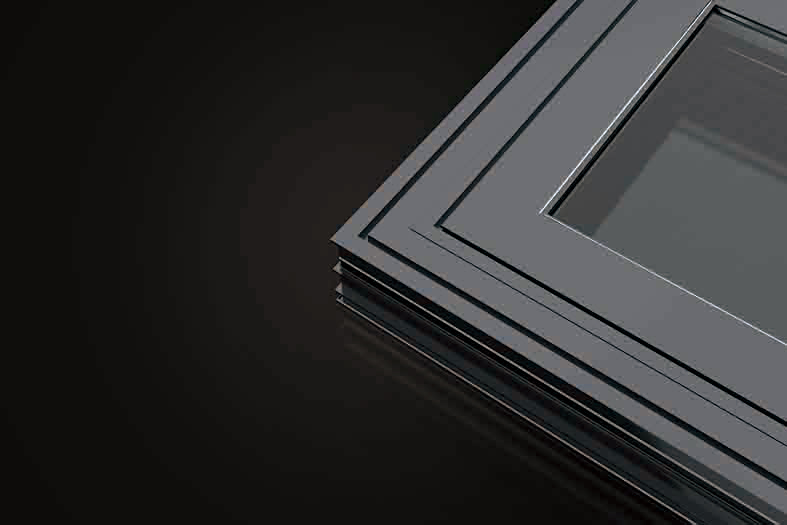

*Corner locking key ensures the smooth surface joint and improves corner stability
*Instead of ordinary glue, glass panel EPDM foam weather sealing strip provides higher performance and ease of maintenance.
Color
Surface Treatment: Customized (Powder coated/ Electrophoresis/ Anodizing etc).
Color: Customized (White, black, silver etc any color is available by INTERPON or COLOR BOND).
Glass
Specifications Of Glass
1. Single Glazing: 4/5/6/8/10/12/15/19mm Etc
2. Double Glazing: 5 mm + 12 a + 5 mm, 6 mm + 12 a + 6 mm, and 8 mm + 12 a + 8 mm, with or without a silver spacer
3. Laminated Glazing: 3mm+0.38pvb+3mm, 5mm+0.76pvb+5mm, 6mm+1.14pvb+6mm
Tempered ,clear, Tinted, Low-E, Reflective, Forsted.
4. With AS/nzs2208, As/nz1288 Certification

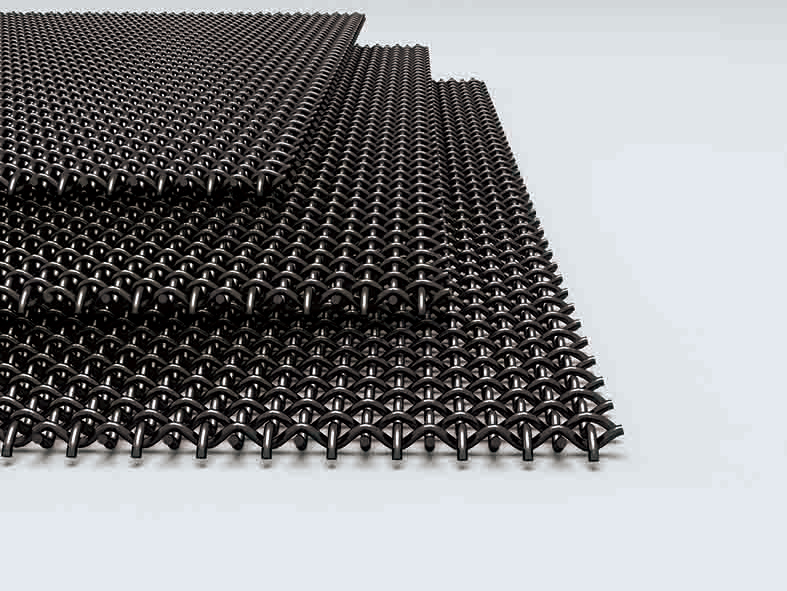

Screen
Specifications of Screen
1. Stainless Steel 304/316
2. Firber Screen
Hardware
Specifications of Hardware
1.China top Kinlong hardware
2.America CMECH hardware
3.German Hoppe hardware
4.China top PAG Hardware
5.German SIEGENIA hardware
6.German ROTO hardware
7.German GEZE hardware
8.Aluwin choose seriously hardwares&accessories for customers with 10 years warranty
Why Choose Us
Customized - We are an aluminium manufacturer with more than 15 years of fruitful and beneficial experience in this field. For your engineer and design requirements, our experts present the most qualified and cost-effective proposals, offering solutions for projects of varied sizes and complexity.
Technical Support -Technical assistance for aluminium curtain walls, including installation instructions and wind load calculations, is provided by independent local and international technology teams.
System design -Develop new aluminium window and door systems with top-notch accessories to better suit the needs of the client target market based on the demands of the market and the client.
