Aluwin casement windows provide you the freedom to completely open your home to the outside and give you the option of deciding how much or how little cross breeze you wish to capture. Excellent method for managing the amount of ventilation, moisture, or air entering the space.EPDM foam weather sealing strip is used on glass panels because it provides greater performance and requires less upkeep than conventional adhesive.

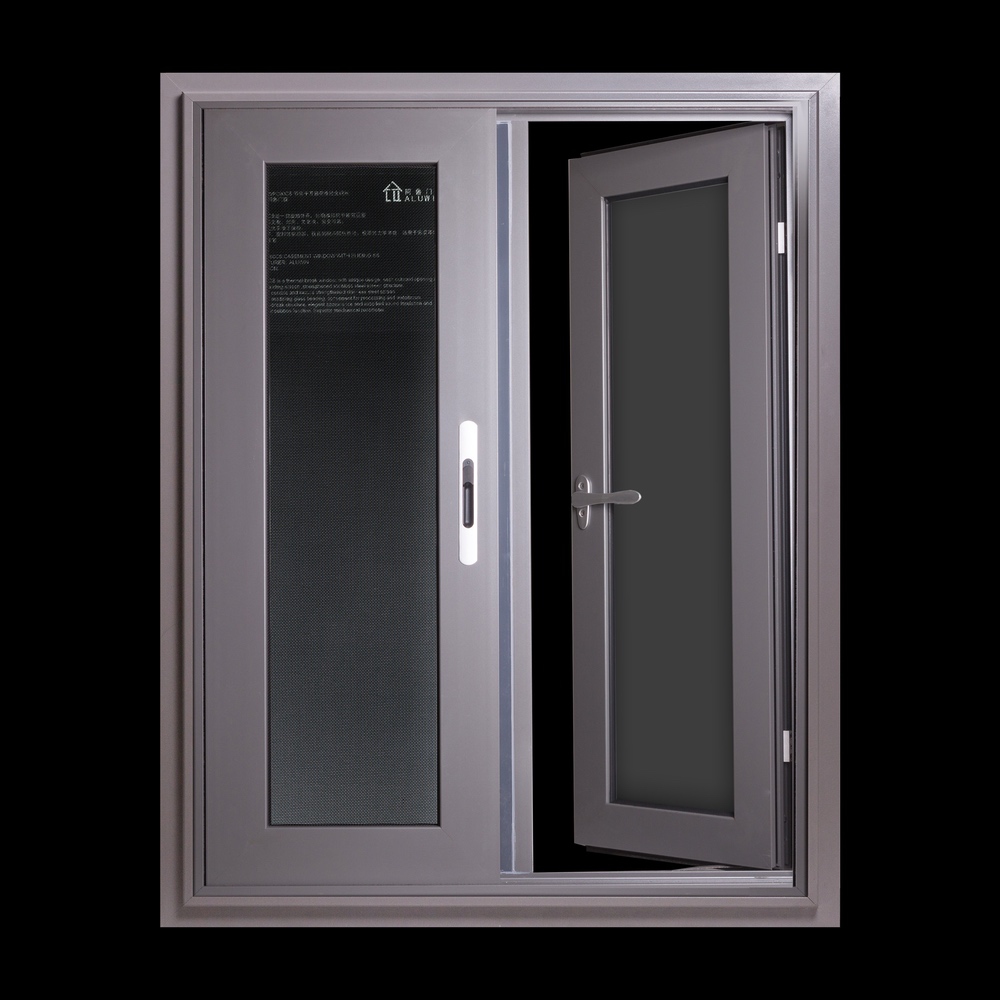

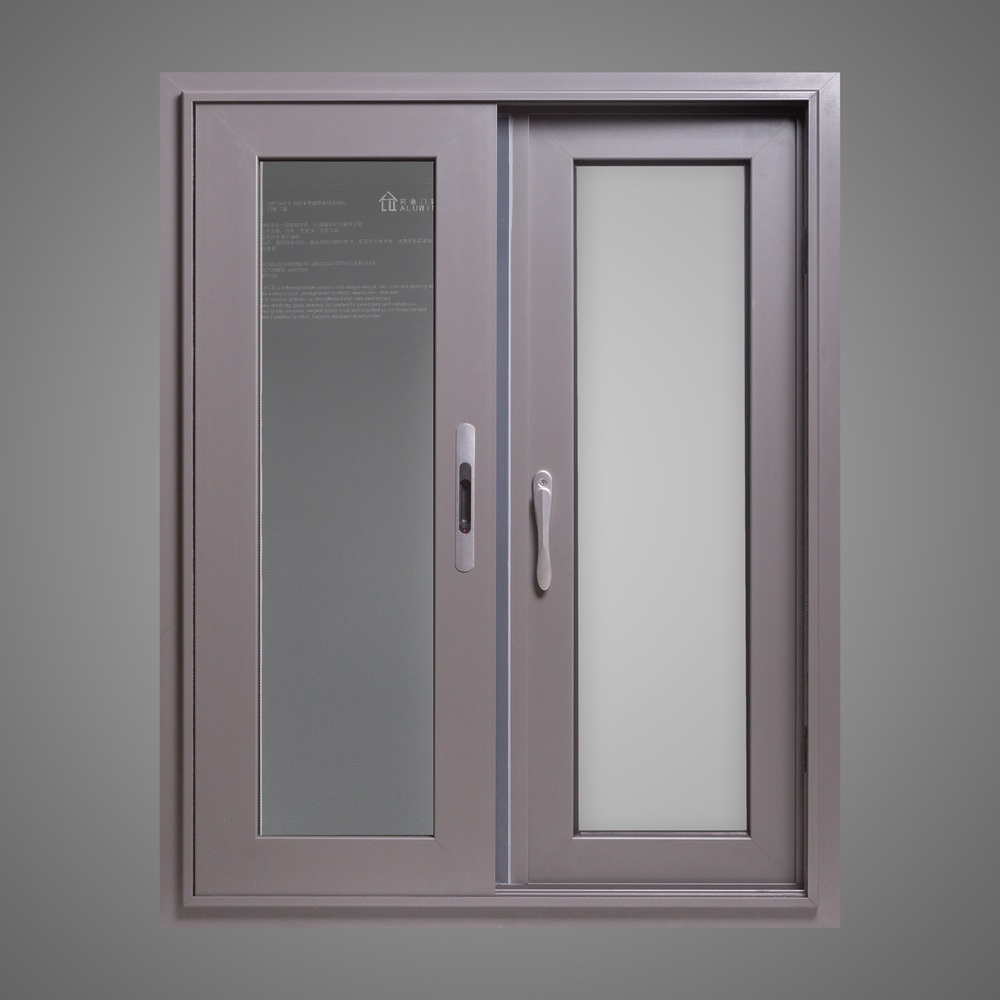

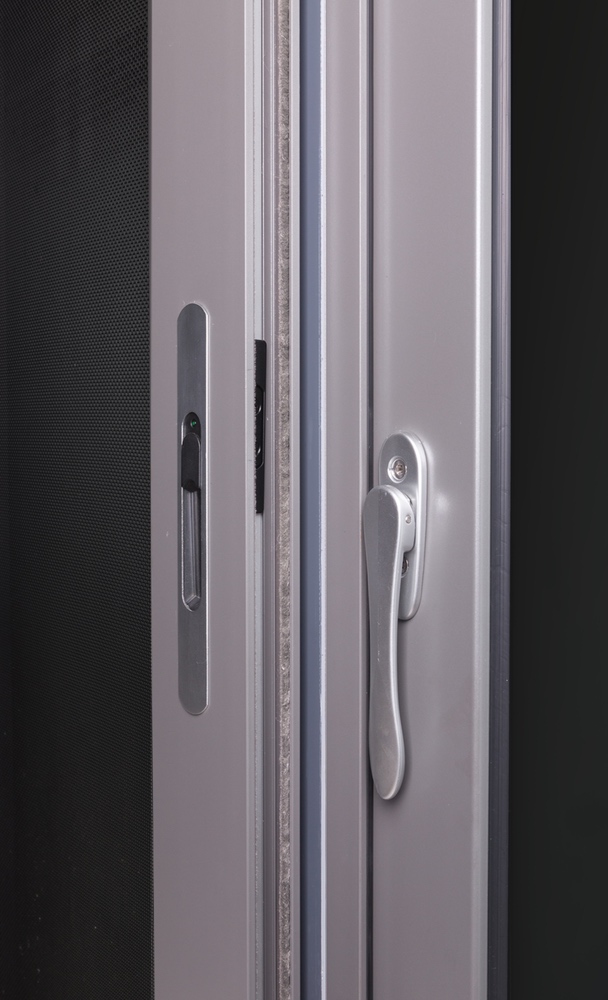

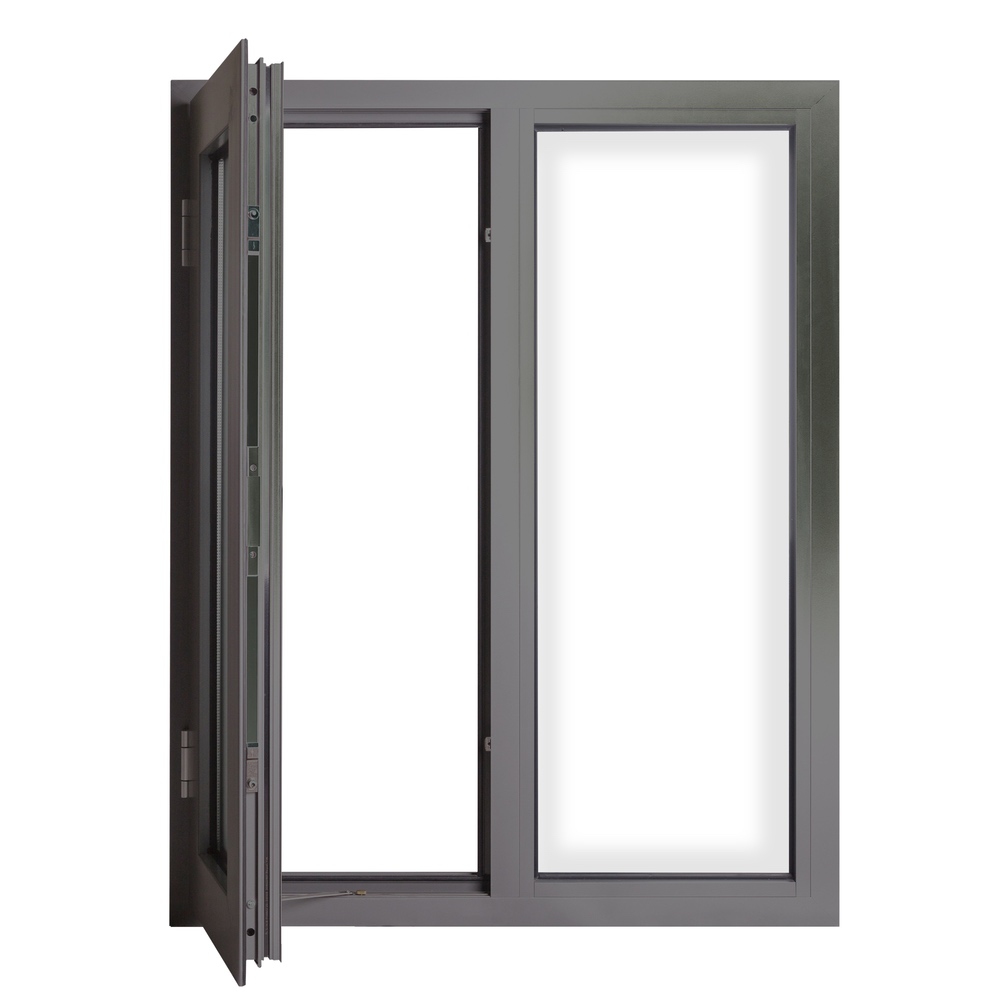

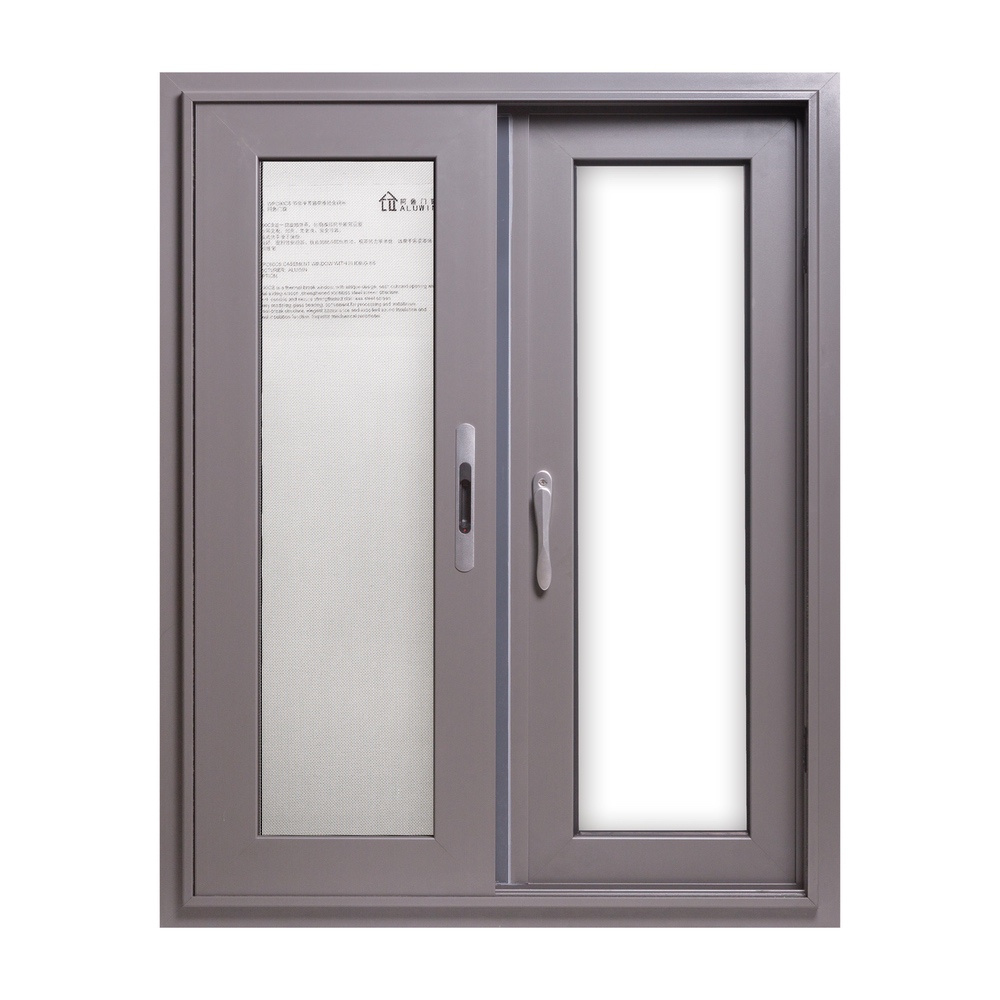

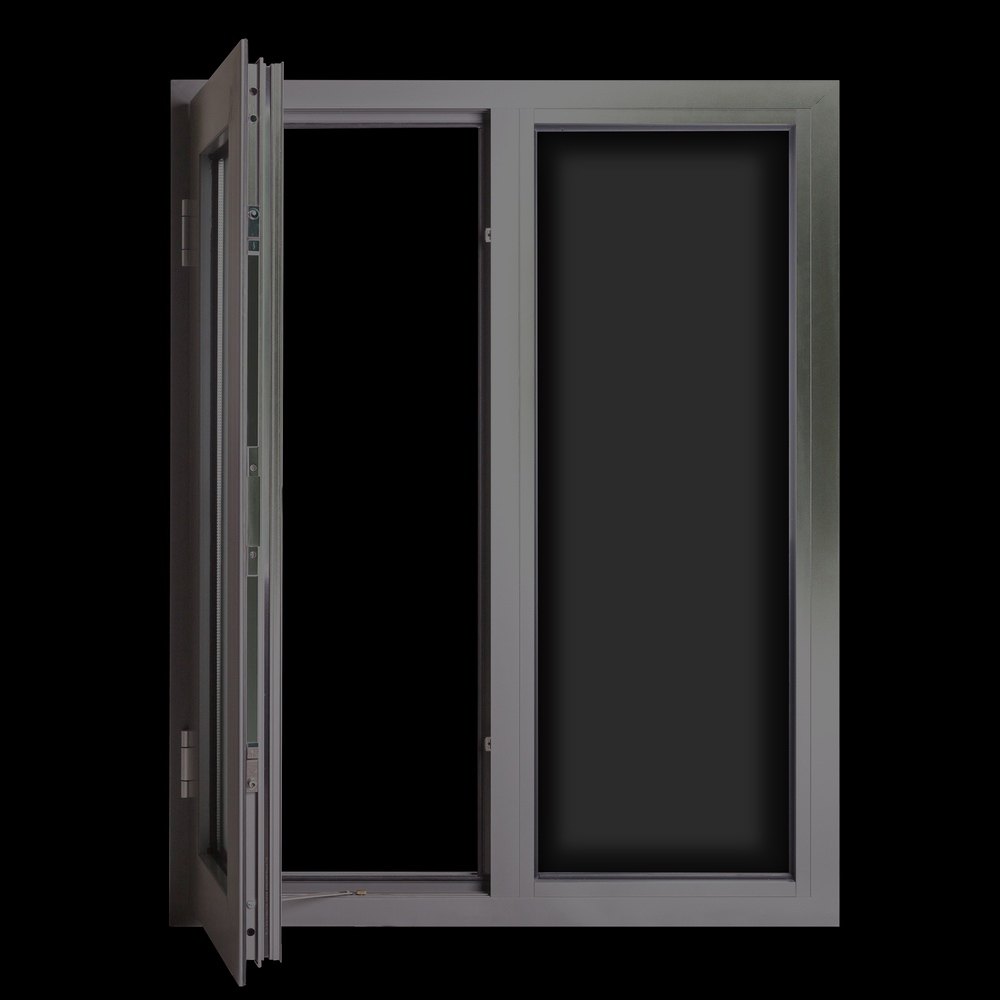

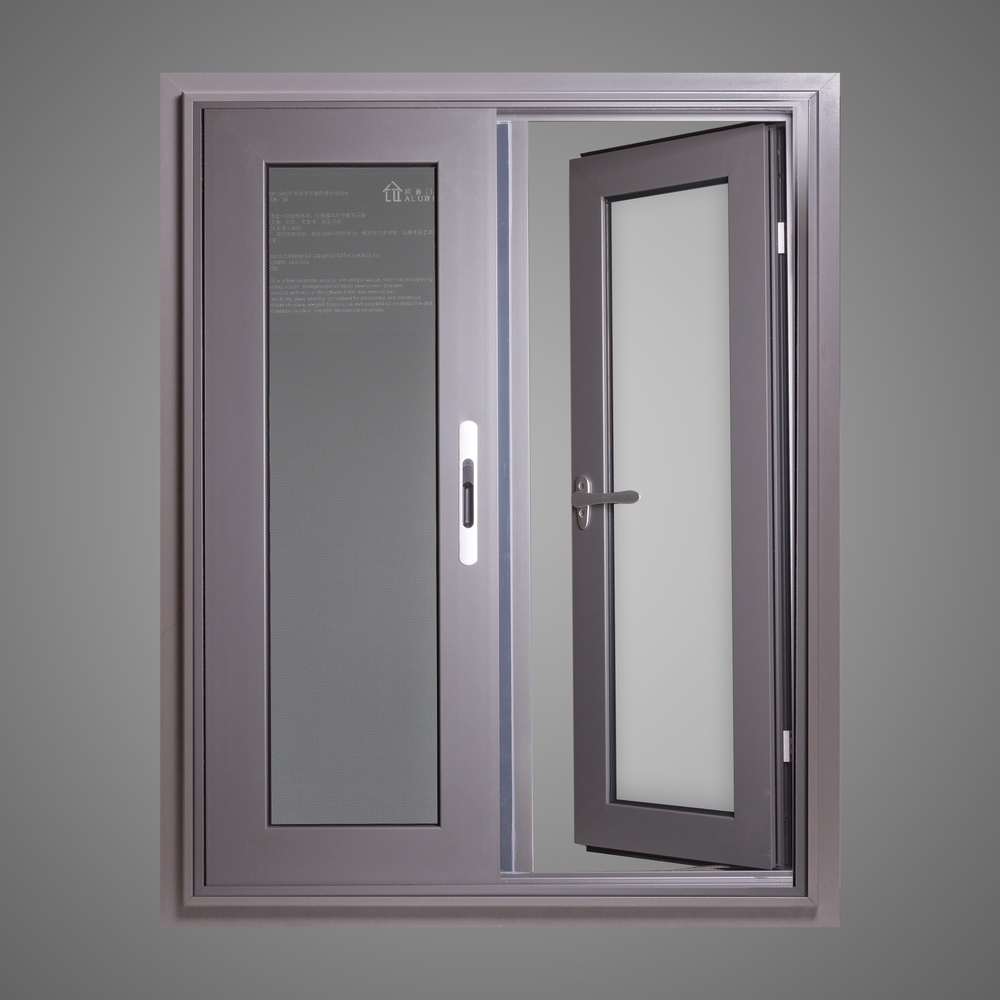

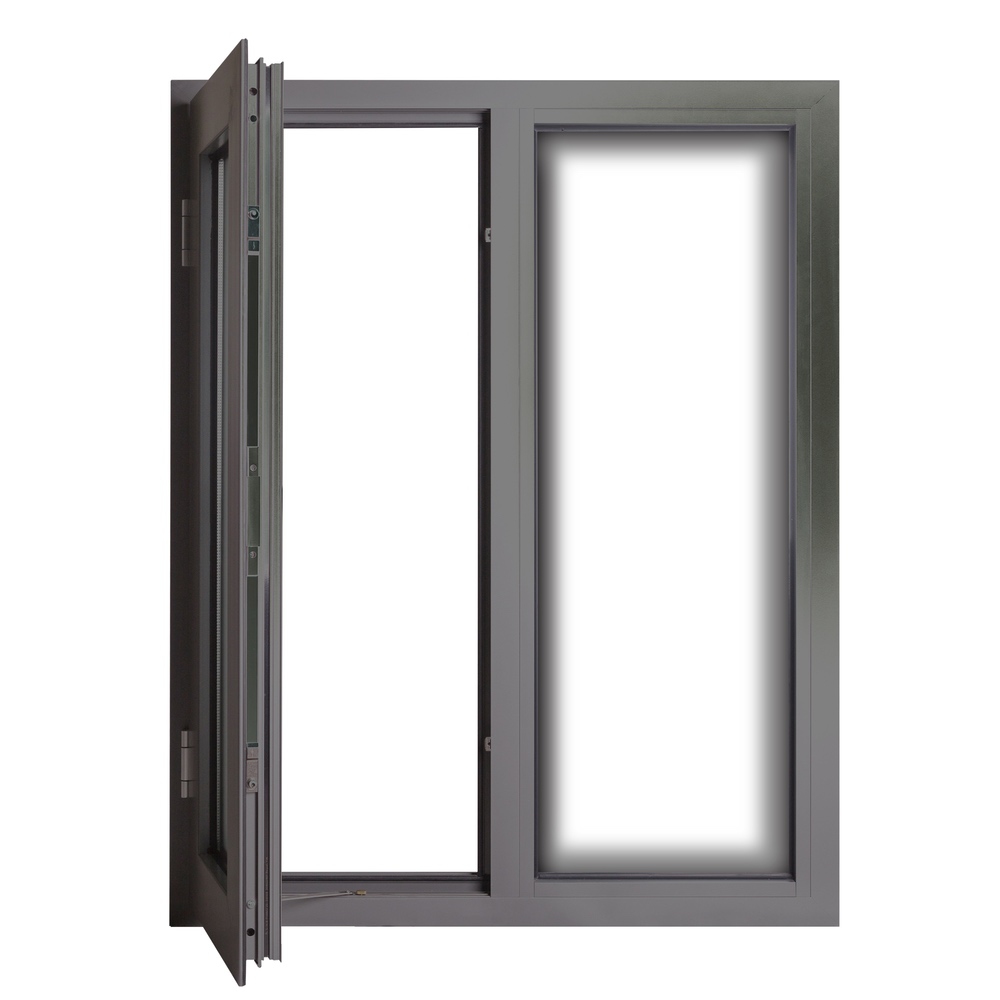

Aluminium thermal break casement window with screen（AL90）
Product Description
* Aluminium frame width 90mm.
* European style 45 degree joint crimping corner instead of adjustable corner make it more elegant and fastened.
* Available in anodised or powder-coated aluminium in all RAL color.
* Available in standard 5mm+9A+5mm double glaze,toughened glass or laminated safety glass.
* Glass can be tinted in a range of colours.
* Up to 2150 mm in height and 1600 mm in width are the maximum internal opening dimensions.
* Different custom sizes also possible.
Optional Features
* With or without grids and colonial bars.

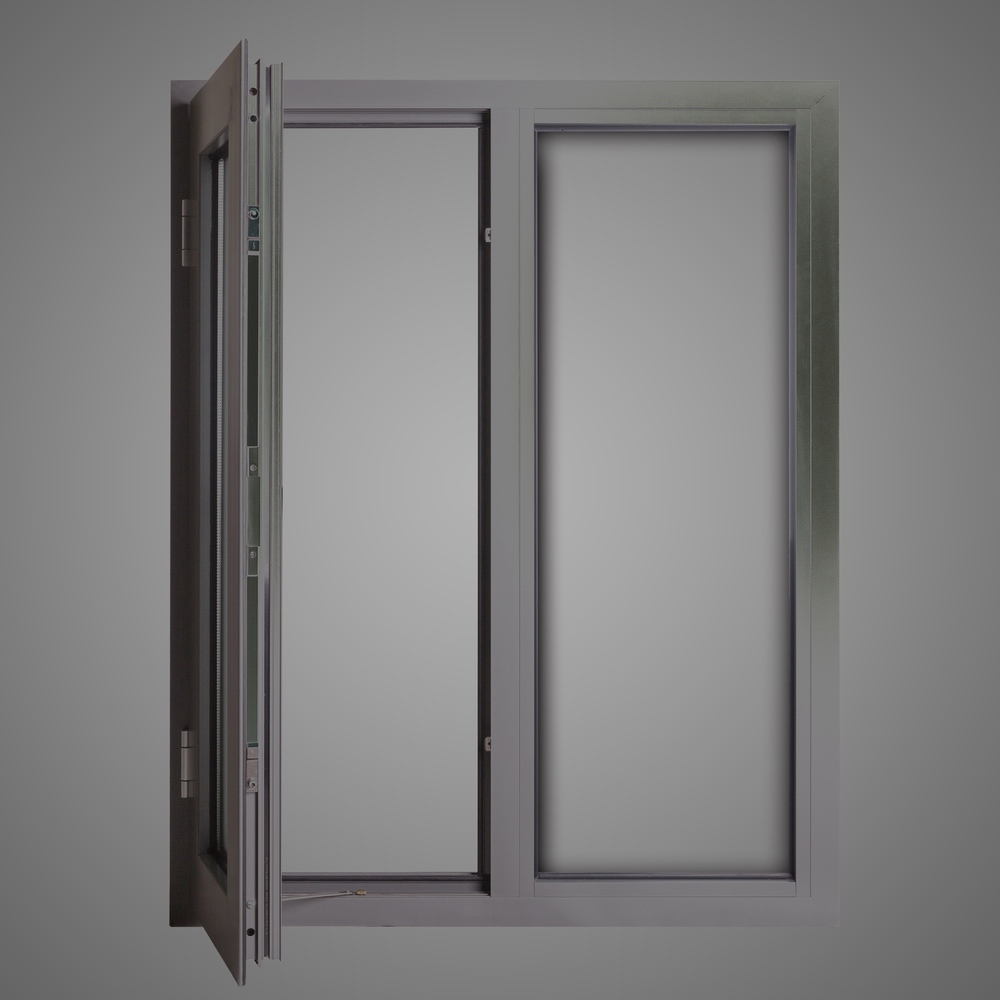

* Can be applied with hinge or friction stay for casement side swing open choice
* Configuration options include tilting the ward open, inside ward, and outside ward. Additionally, it is possible to integrate fixed toplight and sidelight panes.
* Different types lock for choice. Consult for detailed.
* non-thermal system and thermal break system optional.
* EPDM gasket or sealant optional.
General description:
Tech Specs
Color
Glass
Srceens
Hardware
Product Detail
* Aluminium alloy 6063-T5, high tech profile and renforce material
*High quality glass fiber thermal break insulation bar with high loading capacity
*10-15 years warranty in powdercoating surface treatment

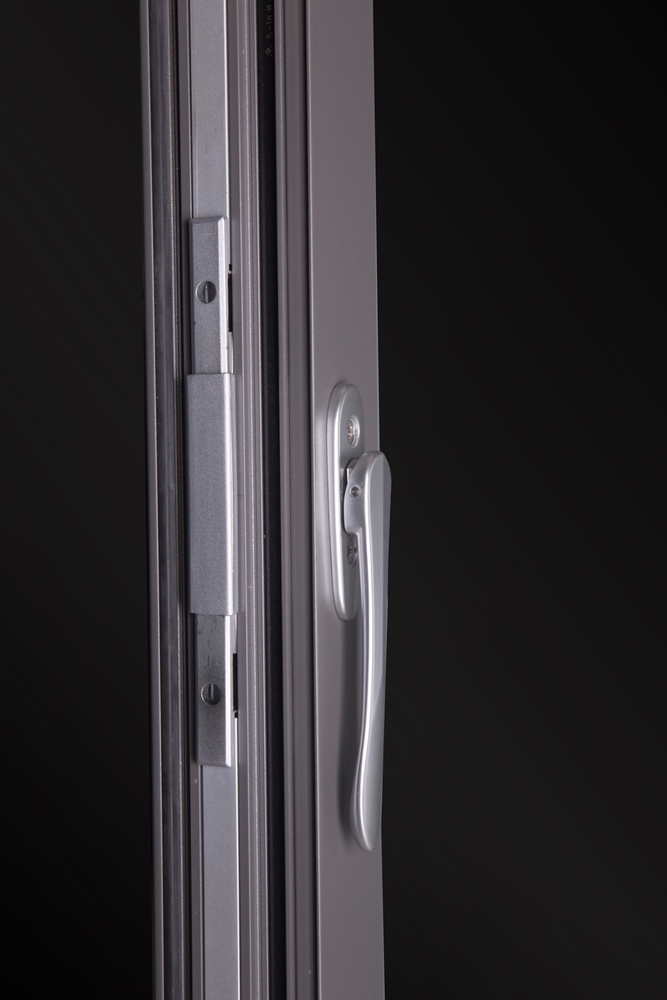

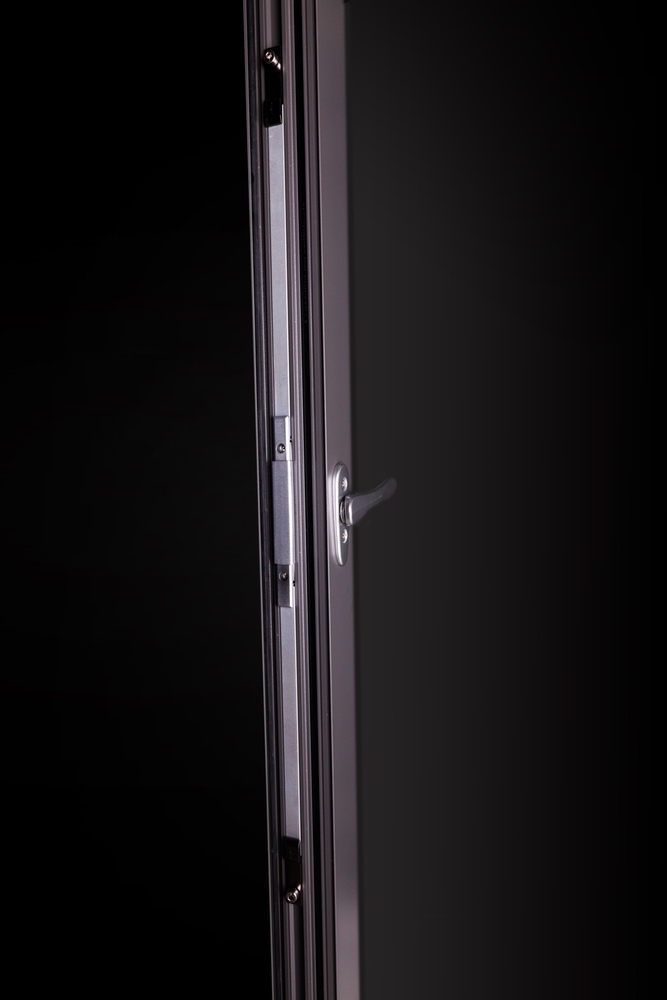

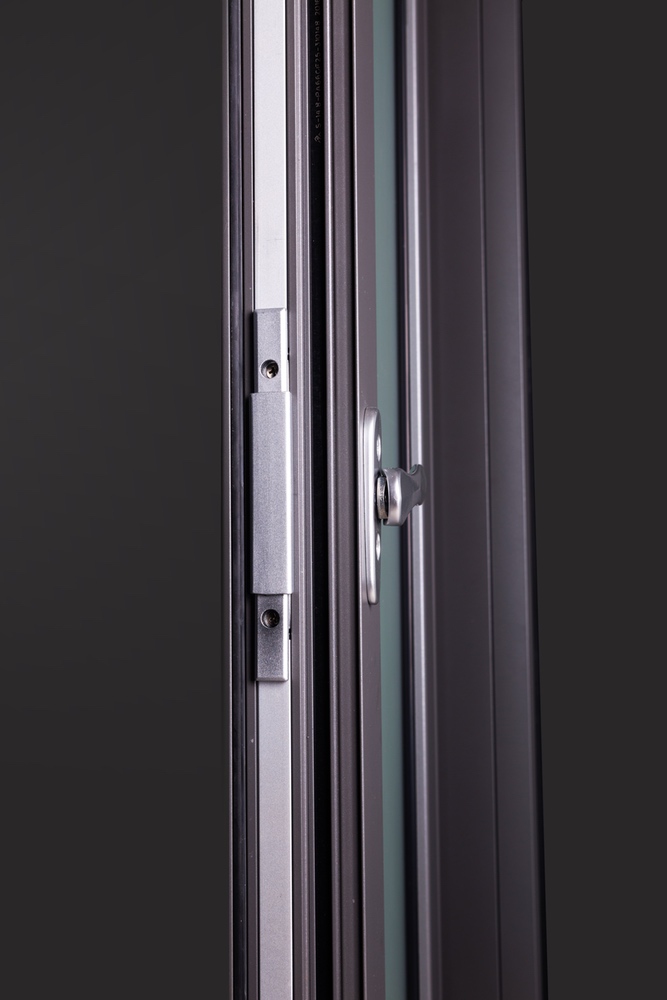

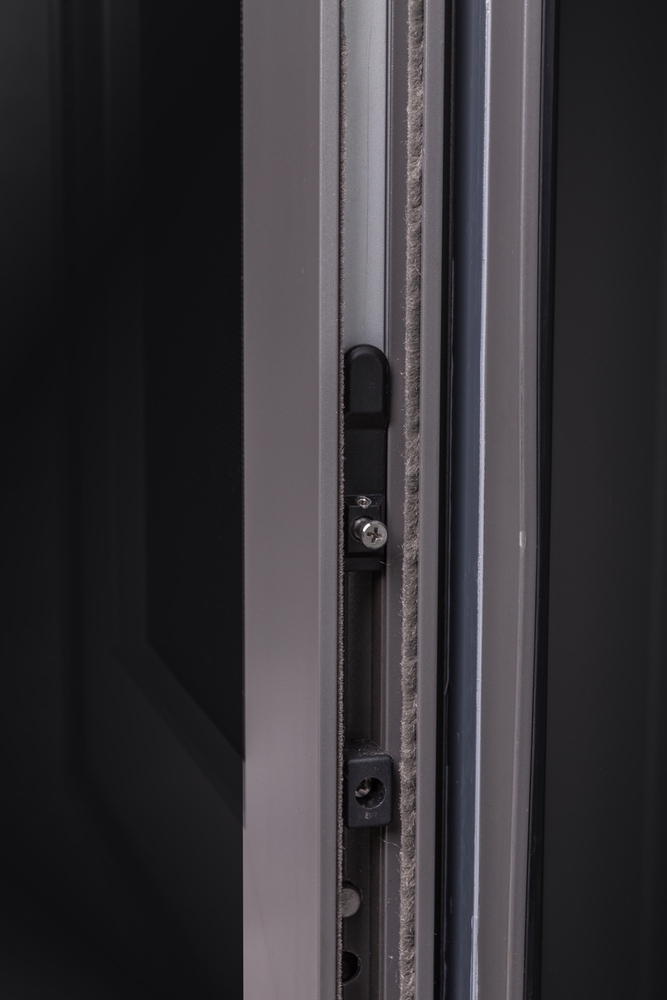

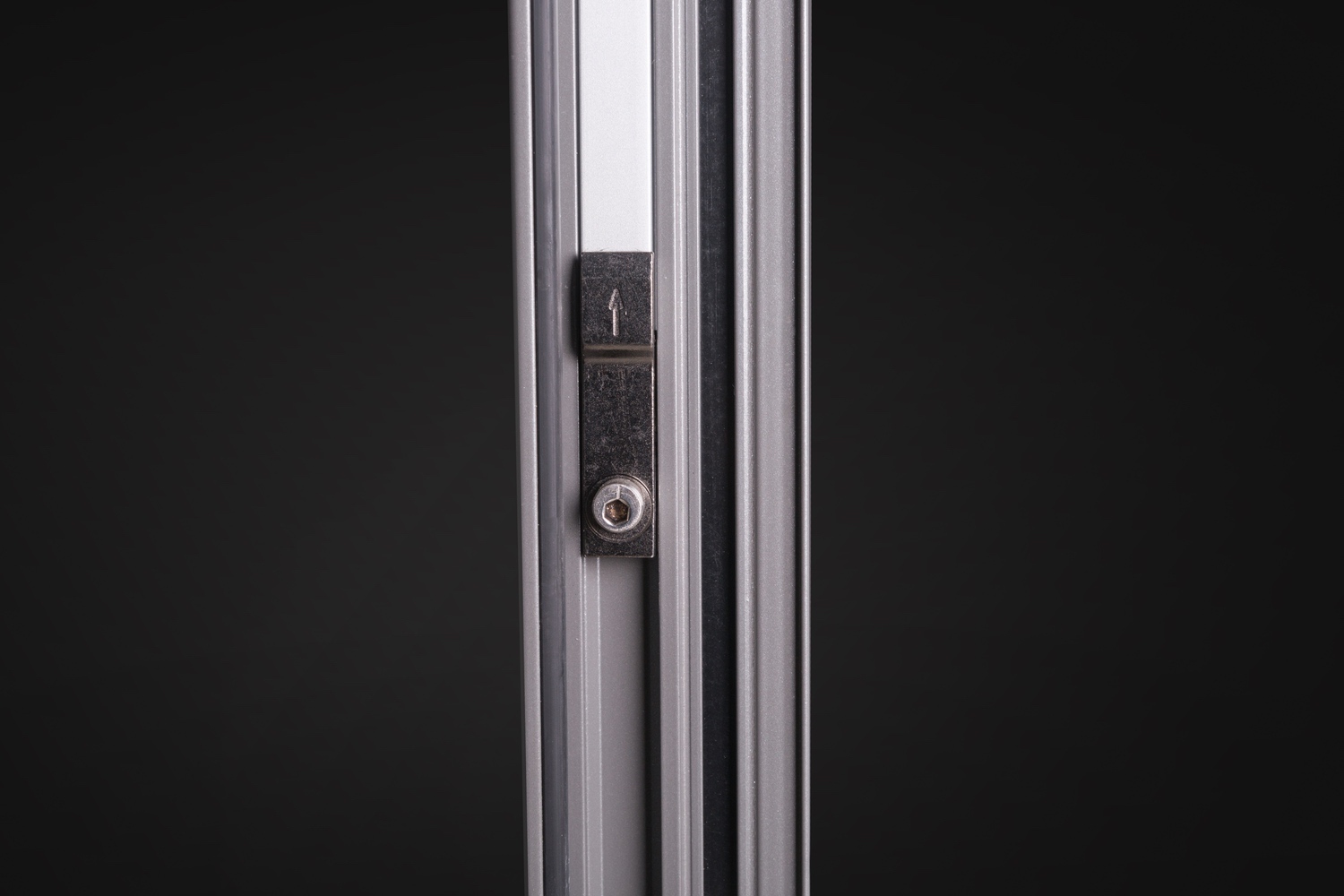

*Multi-point hardware lock system for weather sealing and burglarproofing

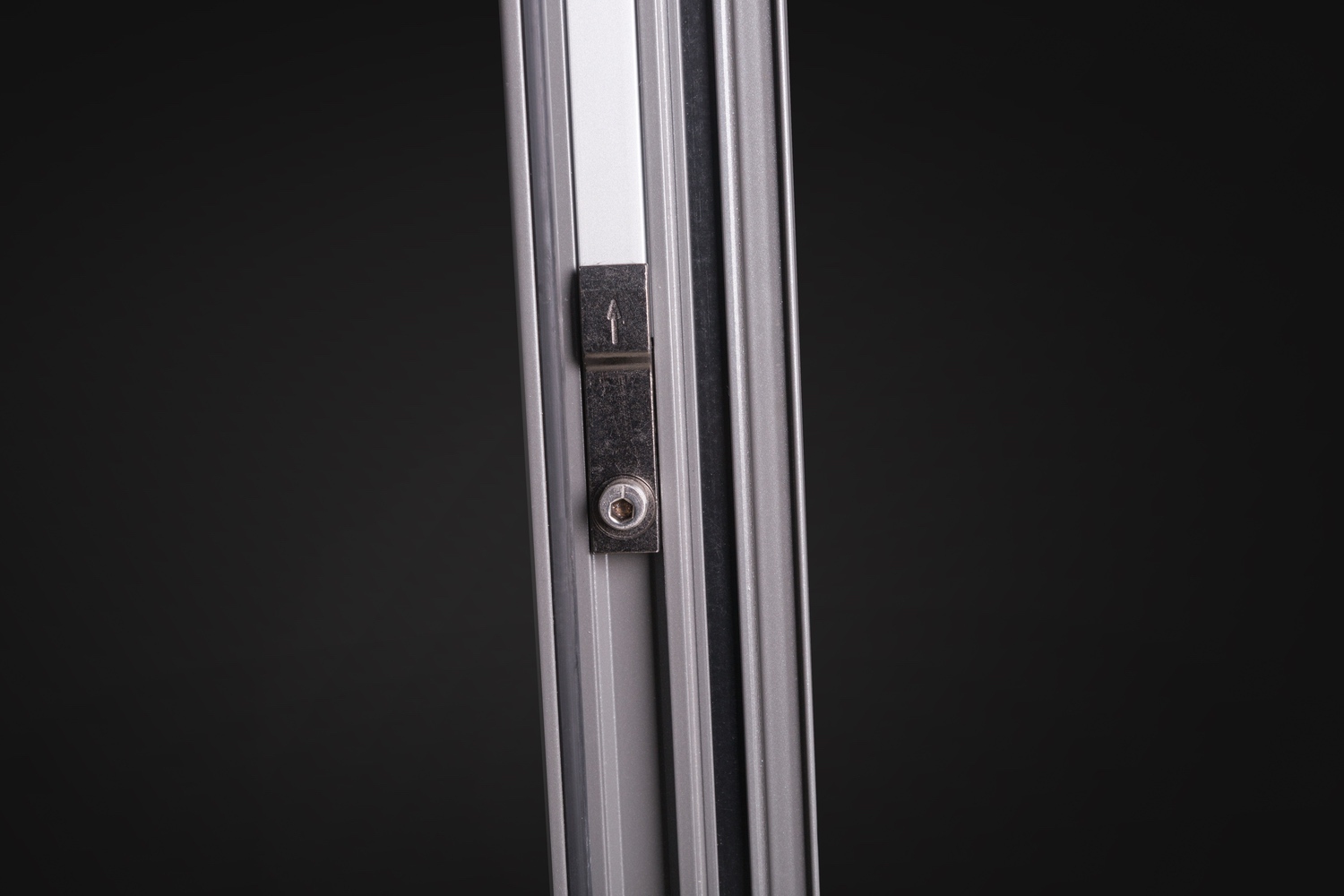

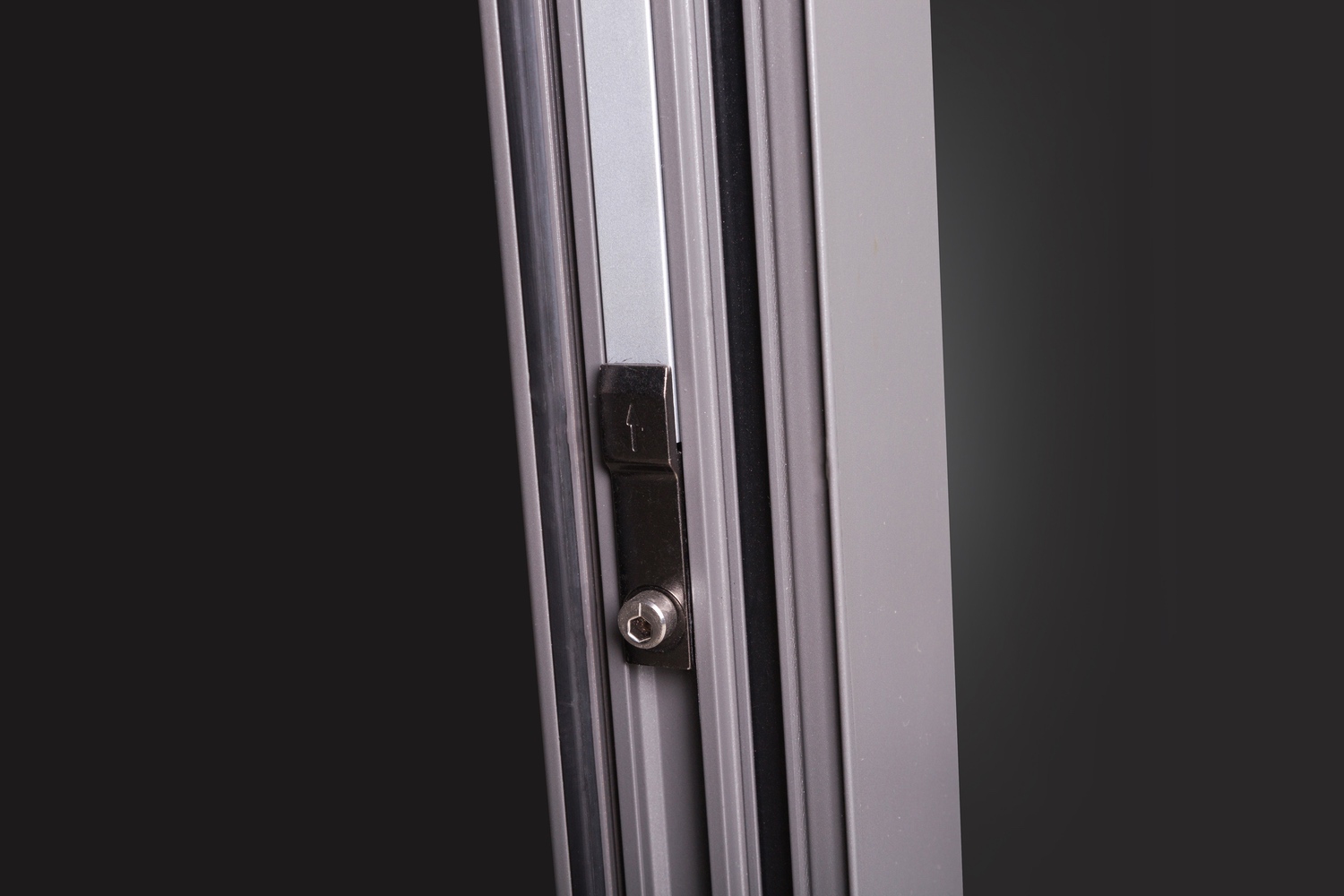

*Corner locking key ensures the smooth surface joint and improves corner stability
*Glass panel EPDM foam weather sealing strip used for better performance and easier maintenance than standard glue
Color
Surface Treatment: Customized (Powder coated/ Electrophoresis/ Anodizing etc).
Color: Customized (White, black, silver etc any color is available by INTERPON or COLOR BOND).

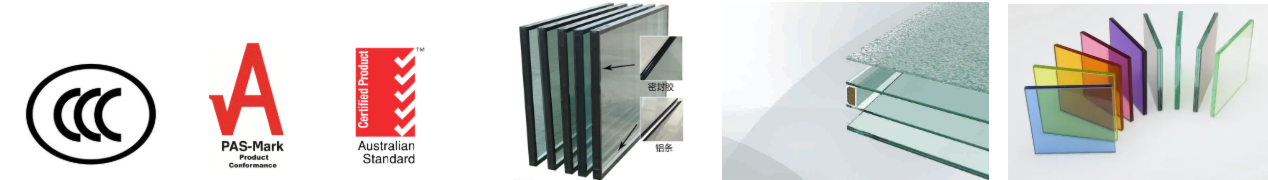

Glass
Specifications Of Glass
1. Single Glazing: 4/5/6/8/10/12/15/19mm Etc
2. Double Glazing: 5mm+12a+5mm ,6mm+12a+6mm ,8mm+12a +8mm,can be Sliver Or Black Spacer
3. Laminated Glazing: 3mm+0.38pvb+3mm, 5mm+0.76pvb+5mm, 6mm+1.14pvb+6mm
Tempered ,clear, Tinted, Low-E, Reflective, Forsted.
4. With AS/nzs2208, As/nz1288 Certification

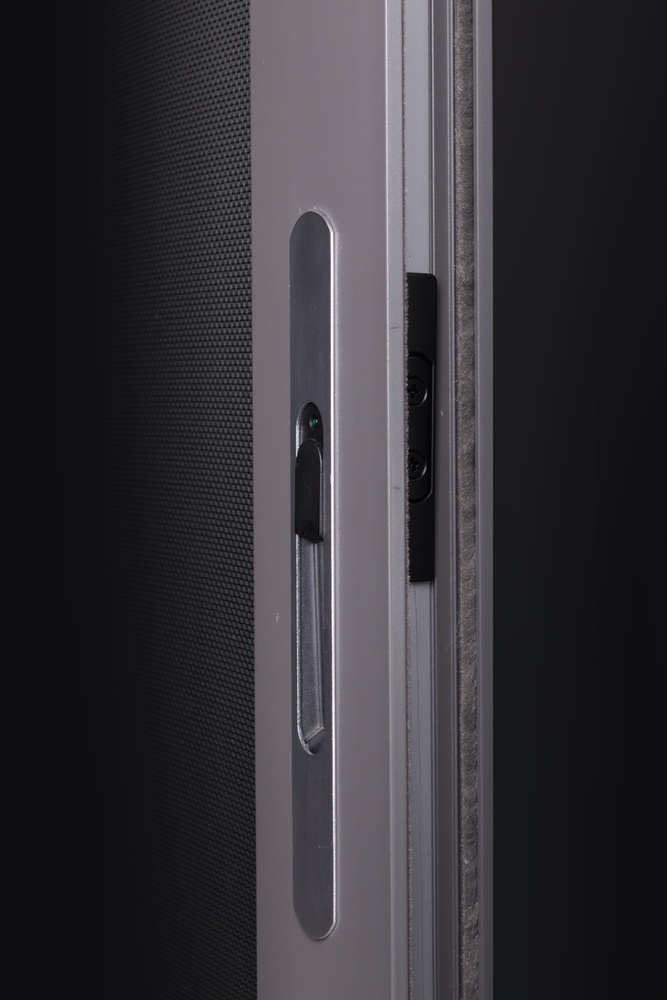

Screen
Specifications of Screen
1. Stainless Steel 304/316
2. Firber Screen
Hardware
Specifications of Hardware
1.China top Kinlong hardware
2.America CMECH hardware
3.German Hoppe hardware
4.China top PAG Hardware
5.German SIEGENIA hardware
6.German ROTO hardware
7.German GEZE hardware
8.Aluwin choose seriously hardwares&accessories for customers with 10 years warranty
Why Choose Us
Customized - We are an aluminium manufacturer with more than 15 years of fruitful and valuable experience in this field. For your engineer and design requirements, our experts present the most qualified and cost-effective proposals, offering solutions for projects of all sizes and levels of complexity.
Technical Support -The independent local and abroad technology teams provide aluminium curtain walls technical support (such as wind load calculation, systems and façade optimization), installation guide.
System design -Develop innovative aluminium window and door systems with top-notch accessories to better satisfy the needs of the client target market.
