The best option for a building’s weather-facing side is undoubtedly a Winder Awning window, which can be opened for good air ventilation without letting in rain or strong winds. Additionally, they perform just as well on the ground floor of high-rise buildings.

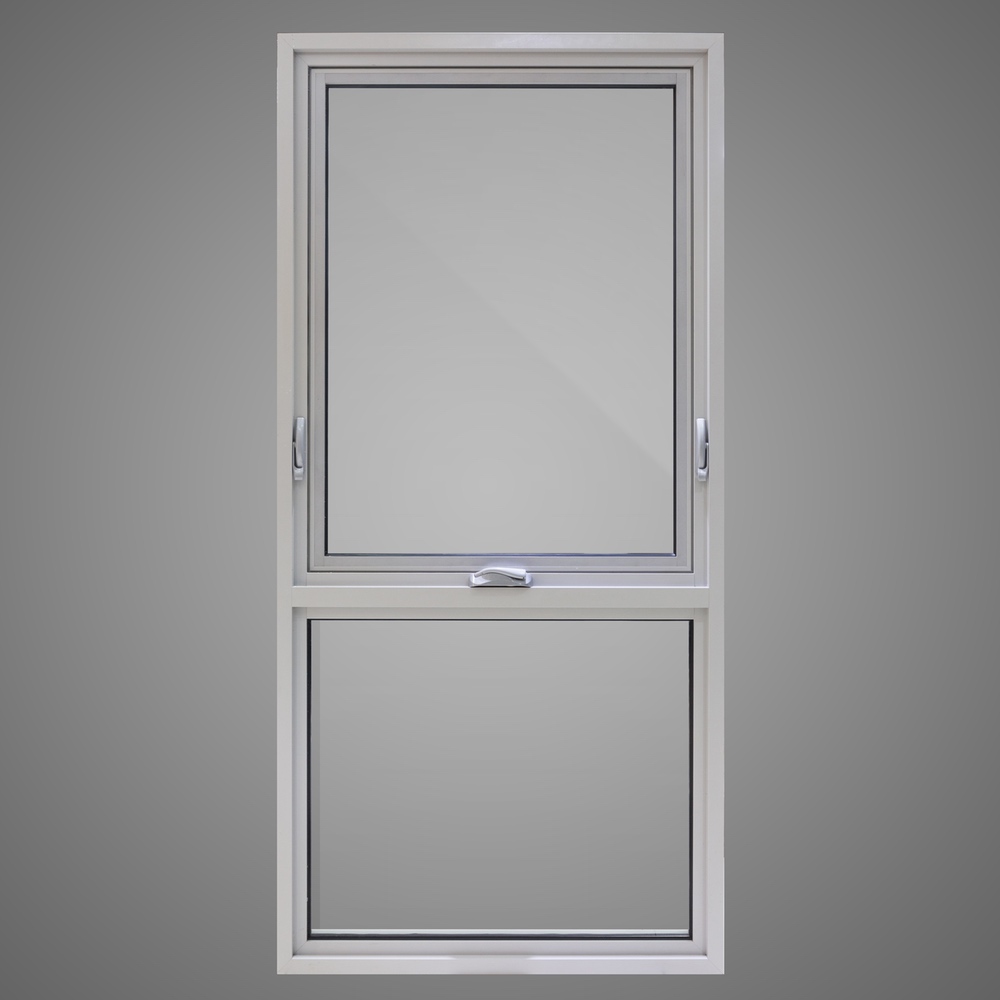

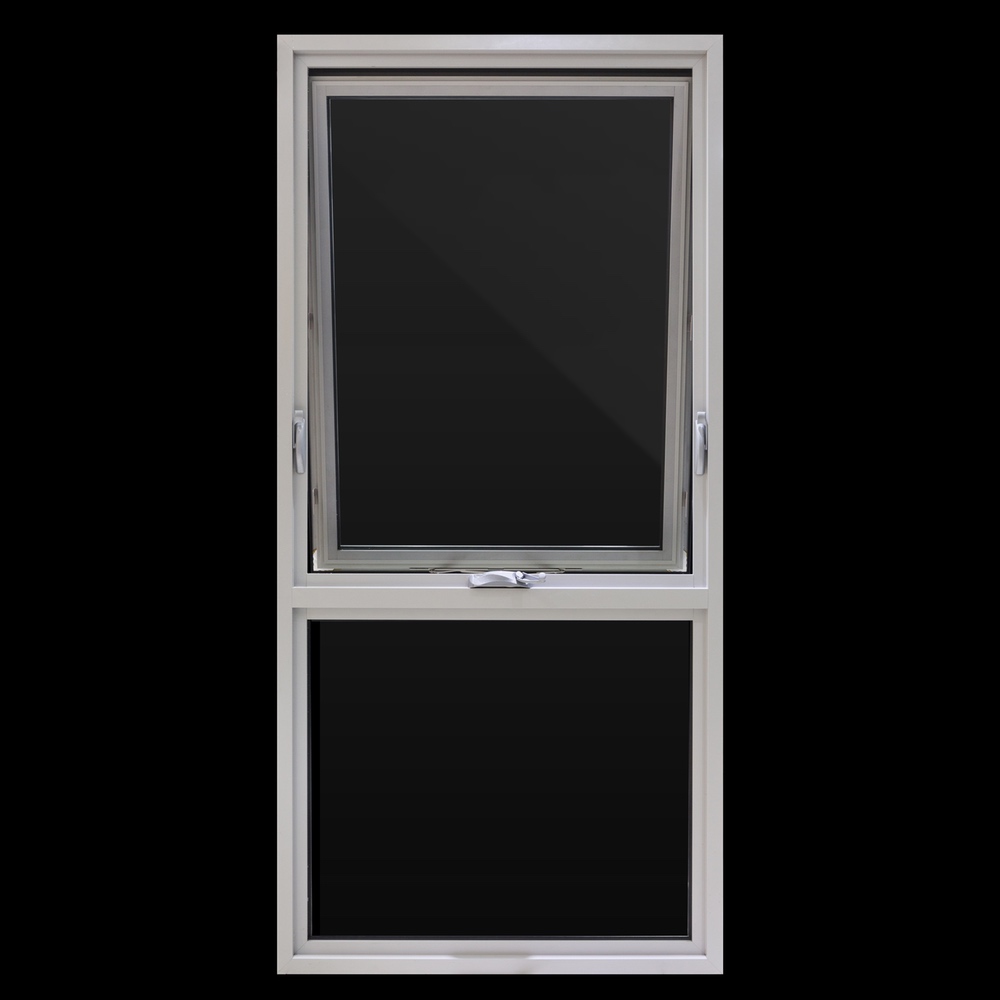

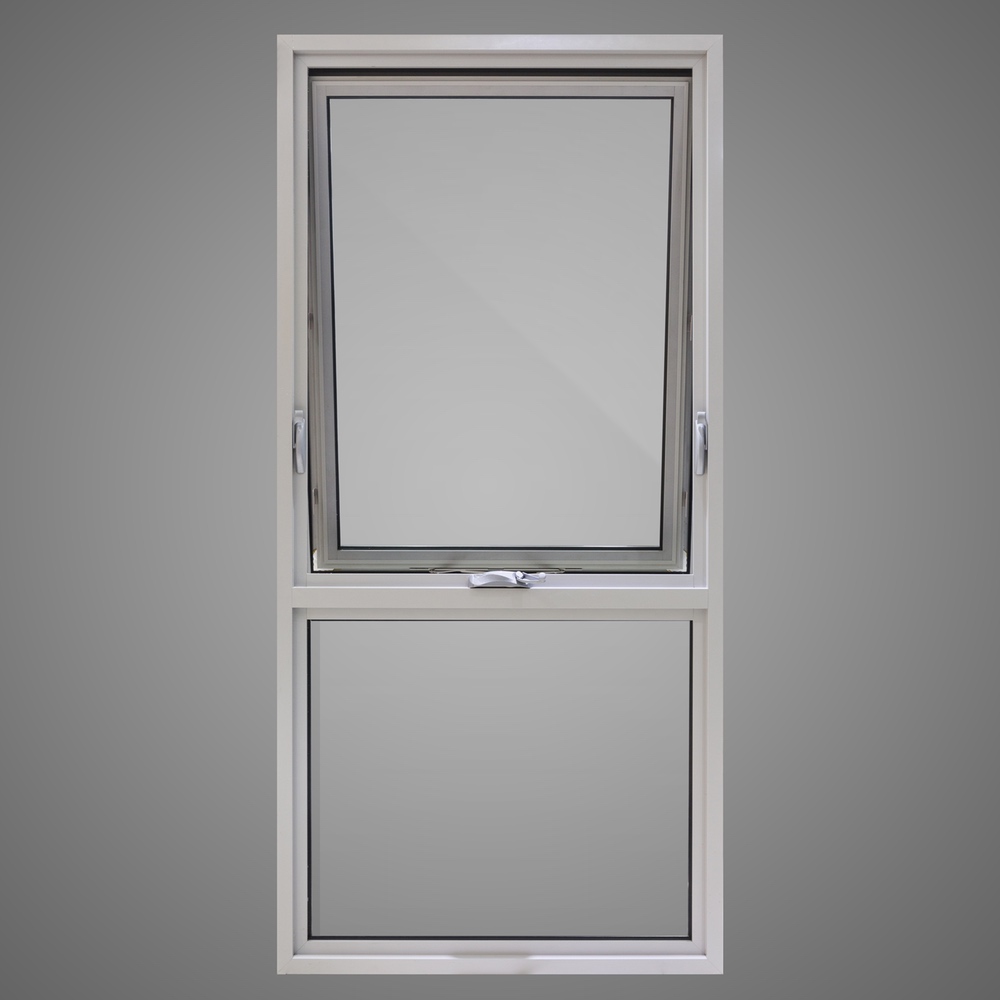

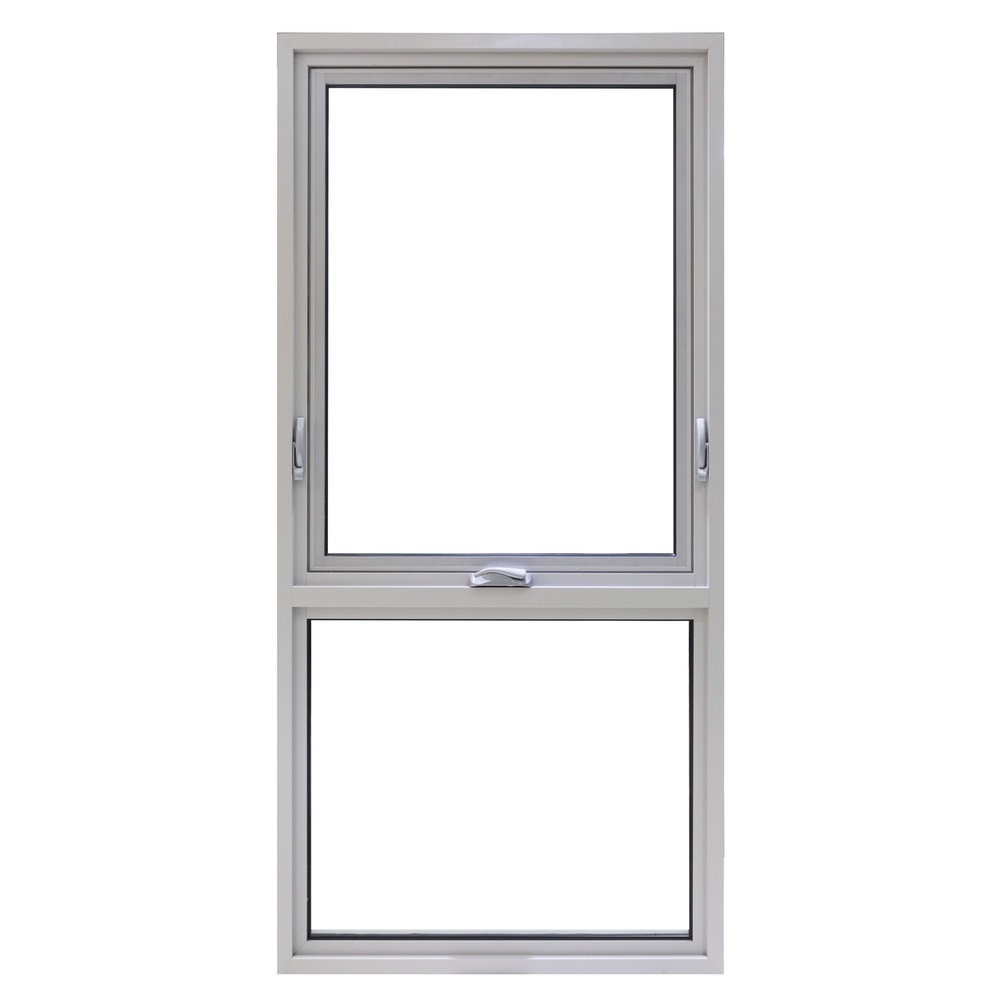

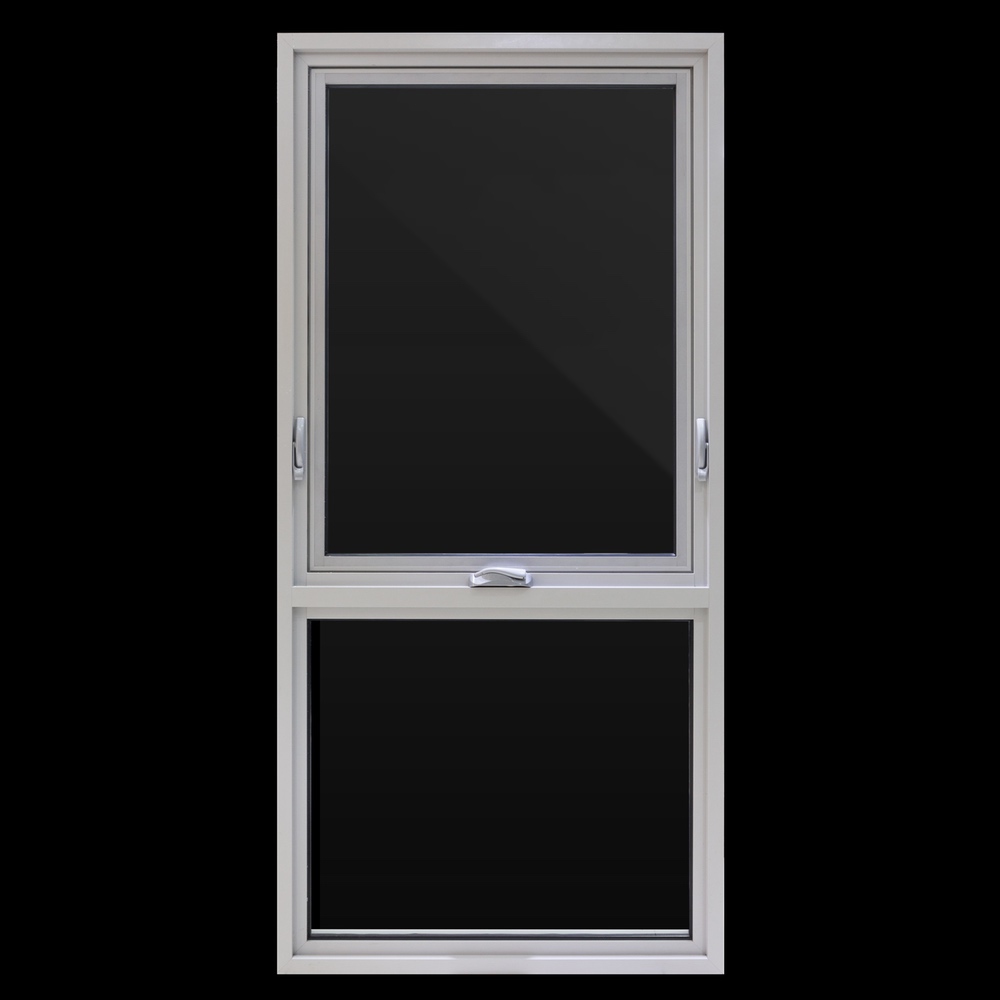

Aluminium Winder Awning window（ALSY96）
Product Description
* Aluminium frame width 96mm.
* Good air ventilation and can be left in heavy rain fall to stop rain outside even at window open status.
* European style 45 degree joint crimping corner instead of adjustable corner make it more elegant and fastened.
* Wide range of colours for your choice
* Available in standard 6mm+12A+6mm double glaze,toughened glass or laminated safety glass.
* Glass can be tinted in a range of colours.
Optional Features

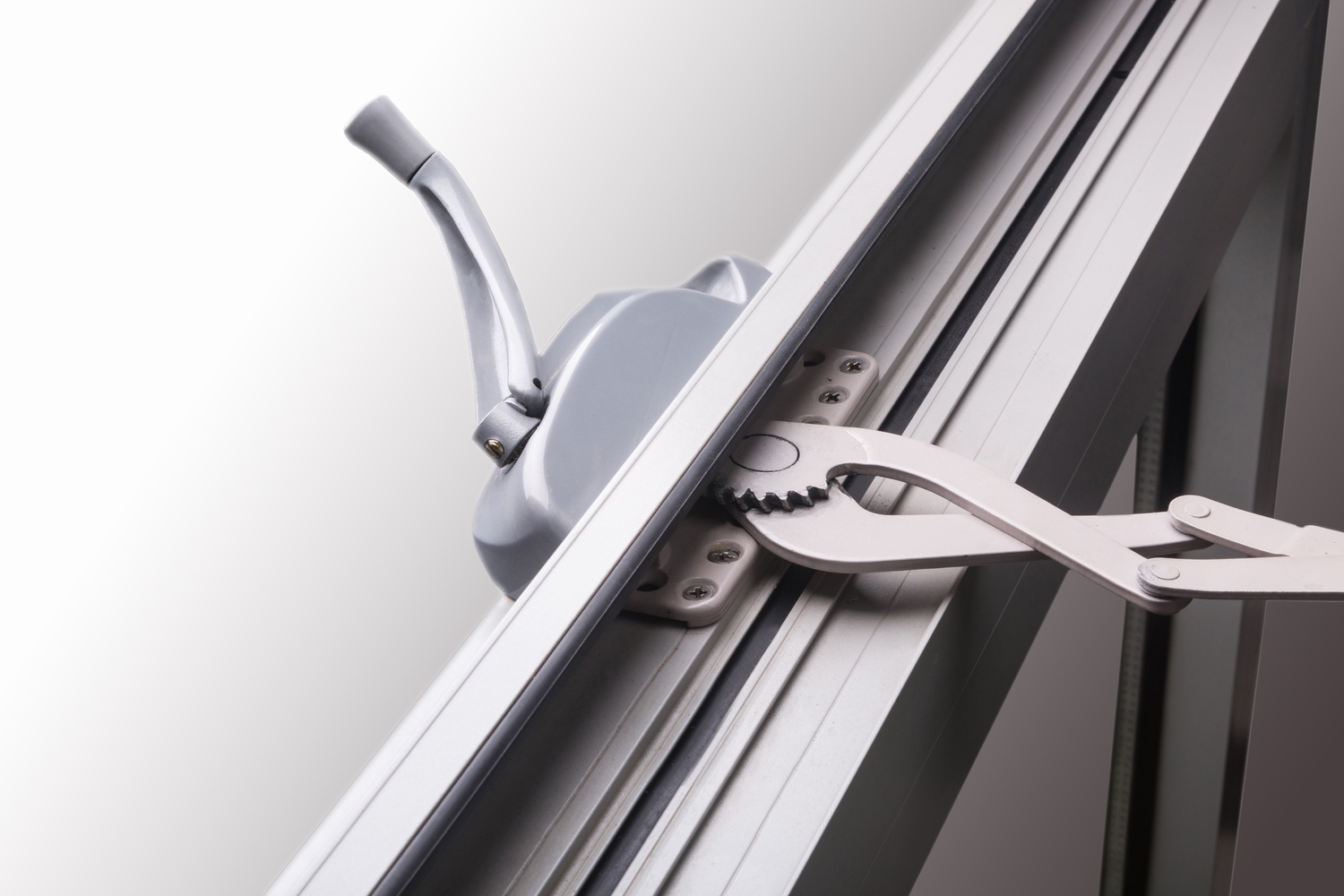

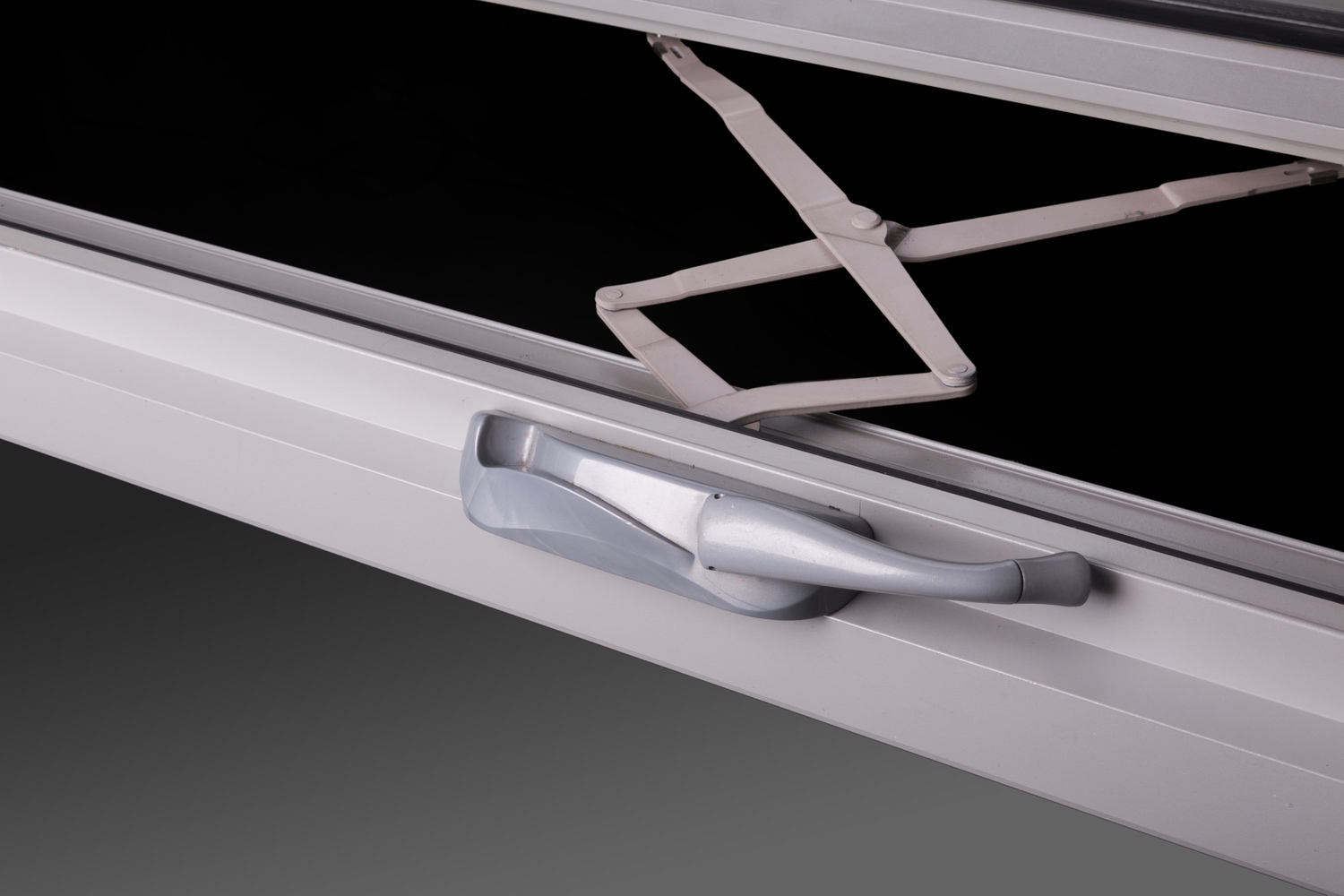

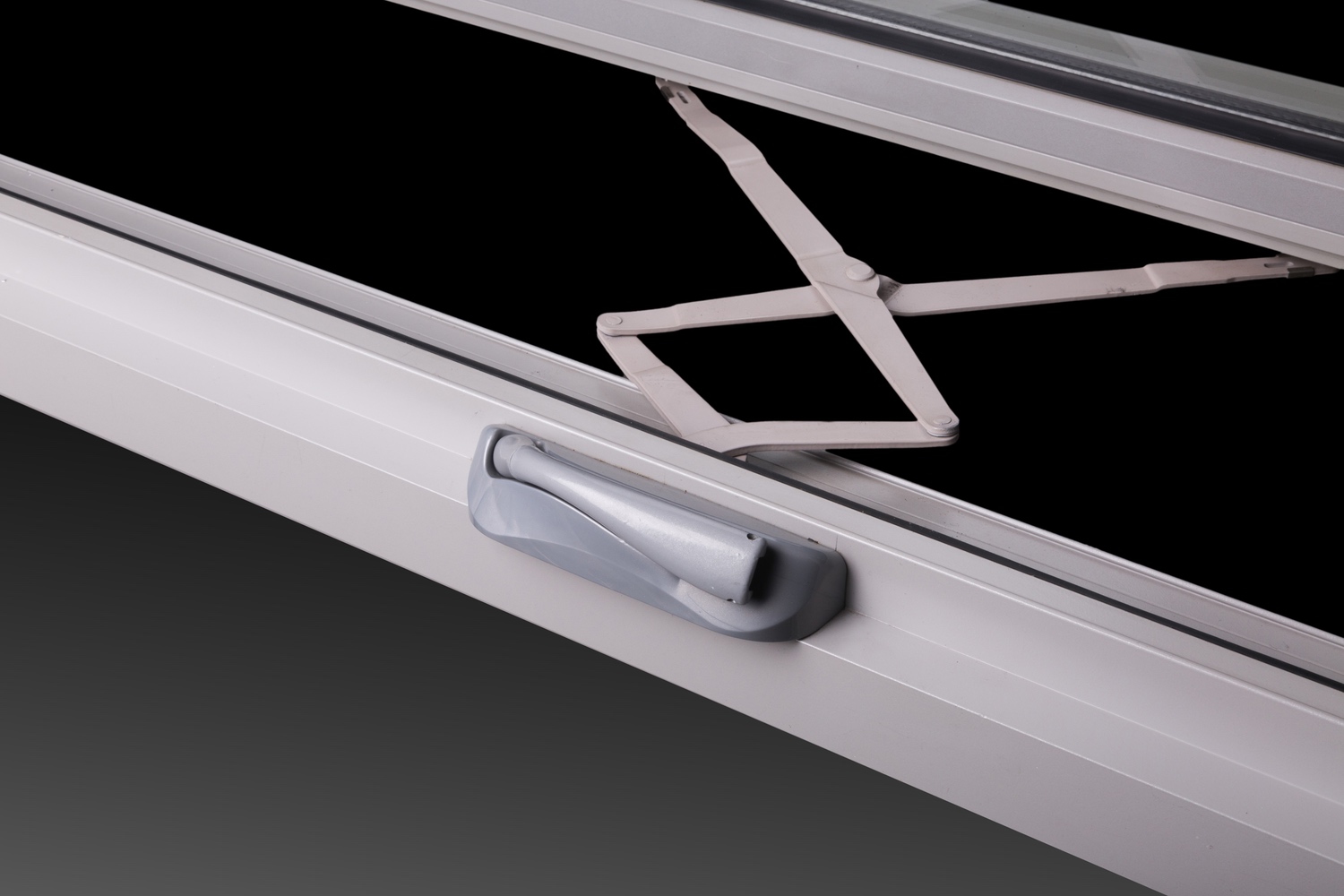

* American & Australian style manual chain winder or electic romote controller can be applied for operator.
* Internal integrated fixed fiber flyscreen optional. Easy to install, and can be lightly disassembled fixed screen, easy to clean glass.

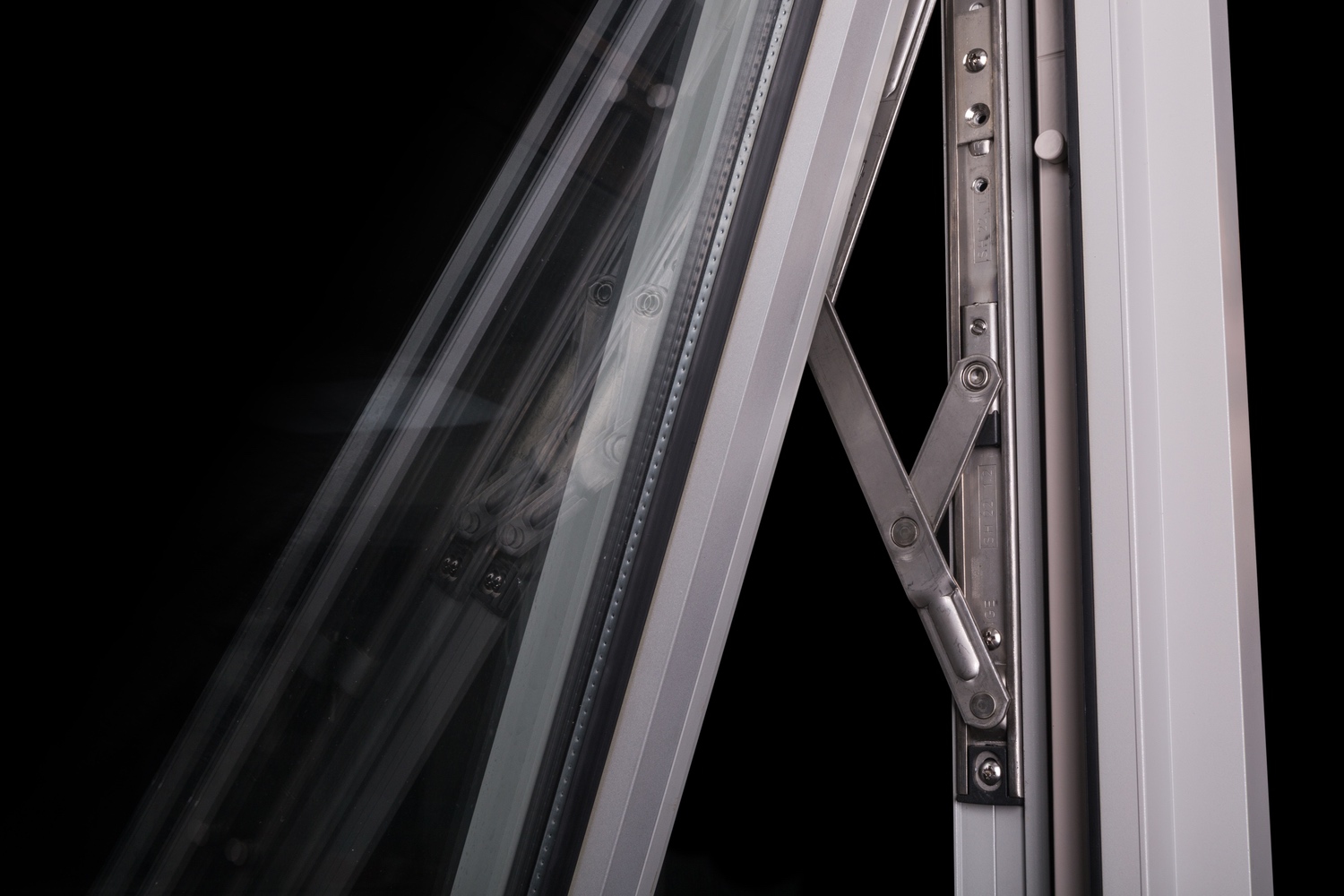

* Friction stay necessary but limited stay can be for choice.
* Can be designed as single panel, double panels, or three panels that open.
* Different types lock for choice. Consult for detailed.
* non-thermal system and thermal break system can be choosed.
* EPDM gasket or sealant optional.
General description:
Tech Specs
Color
Glass
Srceens
Hardware
Product Detail
* Aluminium alloy 6063-T5, high tech profile and renforce material
*High quality glass fiber thermal break insulation bar with high loading capacity
*10-15 years warranty in powdercoating surface treatment

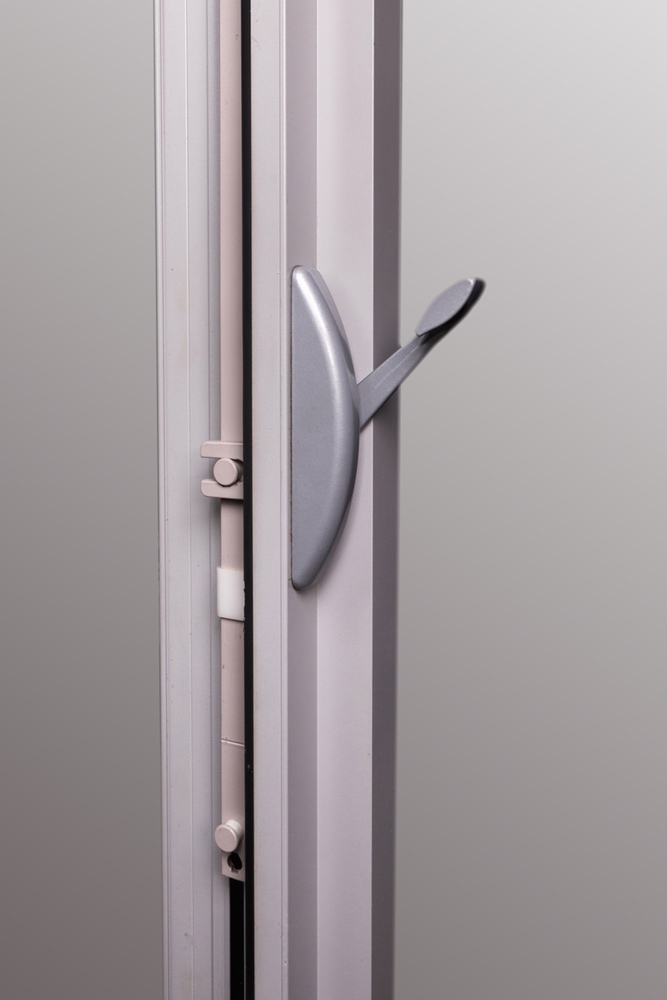

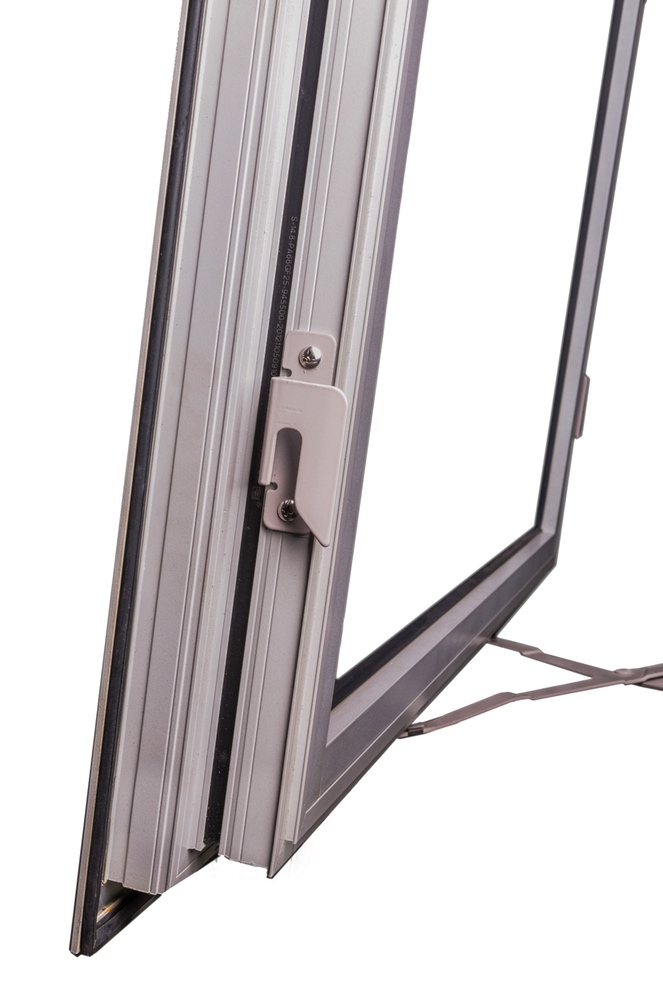

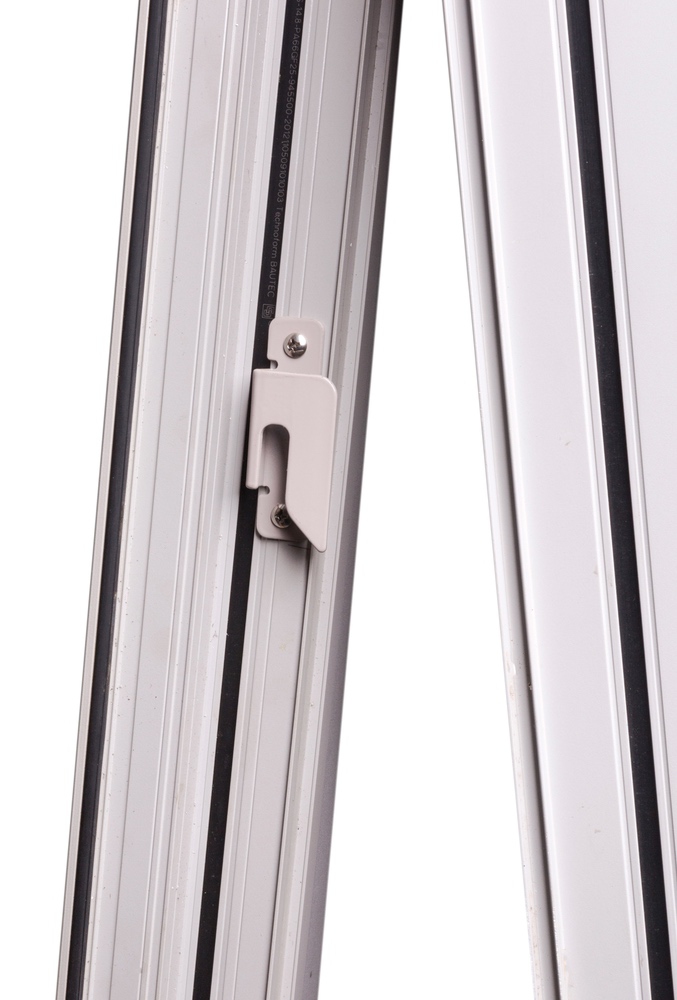

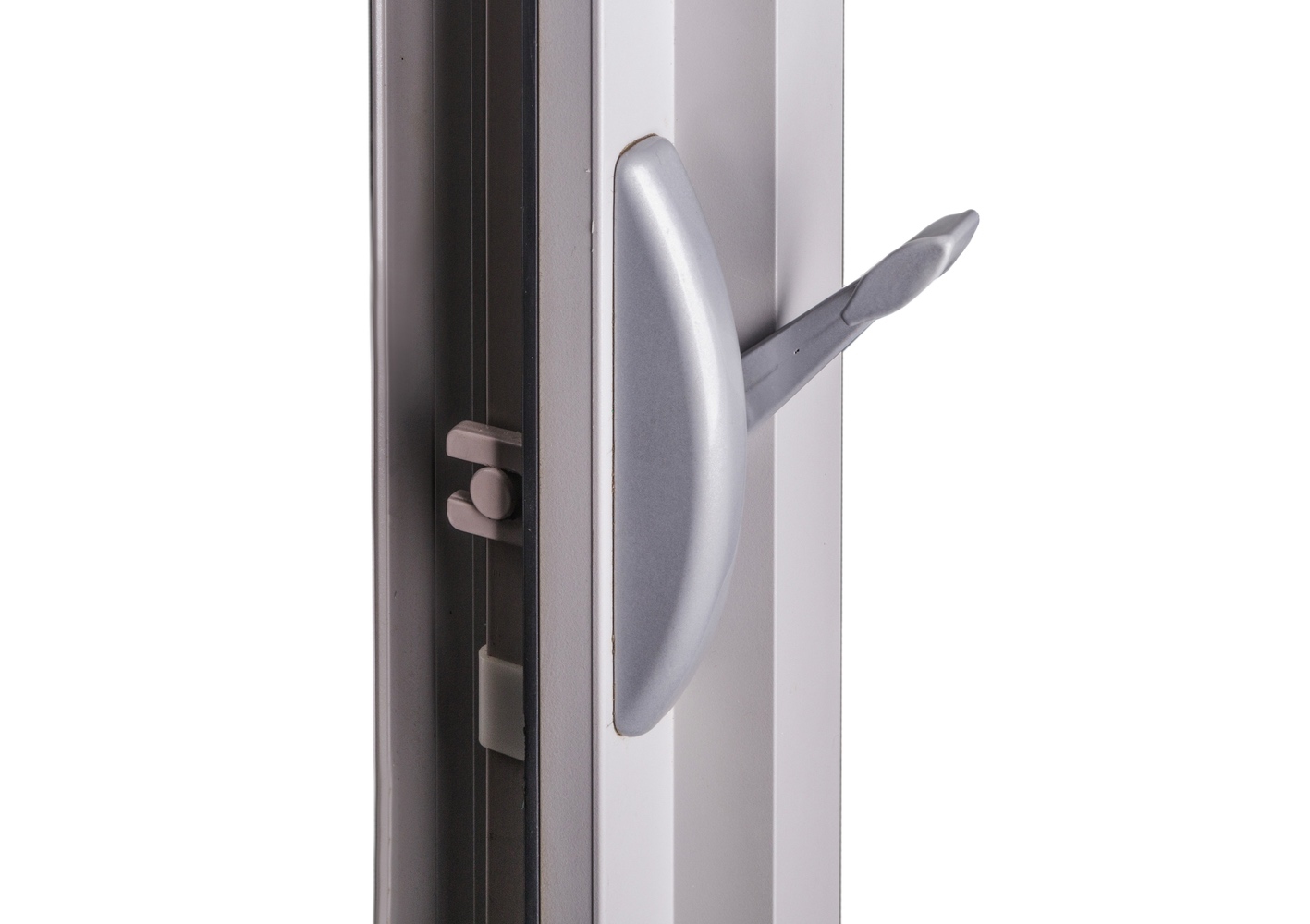

*Multi-point hardware lock system for weather sealing and burglarproofing
*Corner locking key ensures the smooth surface joint and improves corner stability
*Glass panel EPDM foam weather sealing strip used for better performance and easier maintenance than standard glue
Color
Surface Treatment: Customized (Powder coated/ Electrophoresis/ Anodizing etc).
Color: Customized (White, black, silver etc any color is available by INTERPON or COLOR BOND).
Glass
Specifications Of Glass
1. Single Glazing: 4/5/6/8/10/12/15/19mm Etc
2. Double Glazing: 5mm+12a+5mm ,6mm+12a+6mm ,8mm+12a +8mm,can be Sliver Or Black Spacer
3. Laminated Glazing: 3mm+0.38pvb+3mm, 5mm+0.76pvb+5mm, 6mm+1.14pvb+6mm
Tempered ,clear, Tinted, Low-E, Reflective, Forsted.
4. With AS/nzs2208, As/nz1288 Certification
Screen
Specifications of Screen
1. Stainless Steel 304/316
2. Firber Screen
Hardware
Specifications of Hardware
1.China top Kinlong hardware
2.America CMECH hardware
3.German Hoppe hardware
4.China top PAG Hardware
5.German SIEGENIA hardware
6.German ROTO hardware
7.German GEZE hardware
8.Aluwin choose seriously hardwares&accessories for customers with 10 years warranty
Why Choose Us
Customized - We are an aluminium manufacturer with more than 15 years of fruitful and valuable experience in this field. For your engineer and design requirements, our experts present the most qualified and cost-effective proposals, offering solutions for projects of all sizes and levels of complexity.
Technical Support -Technical assistance for aluminium curtain walls, including installation instructions and wind load calculations, is provided by independent local and international technology teams.
System design -Based on the clients’ and market’s requirement, develop new aluminium windows and doors systems, match excellent accessories, which can better meet the client target market requirement.
